Processing container 6×2,2 – H&H Cooling Systems

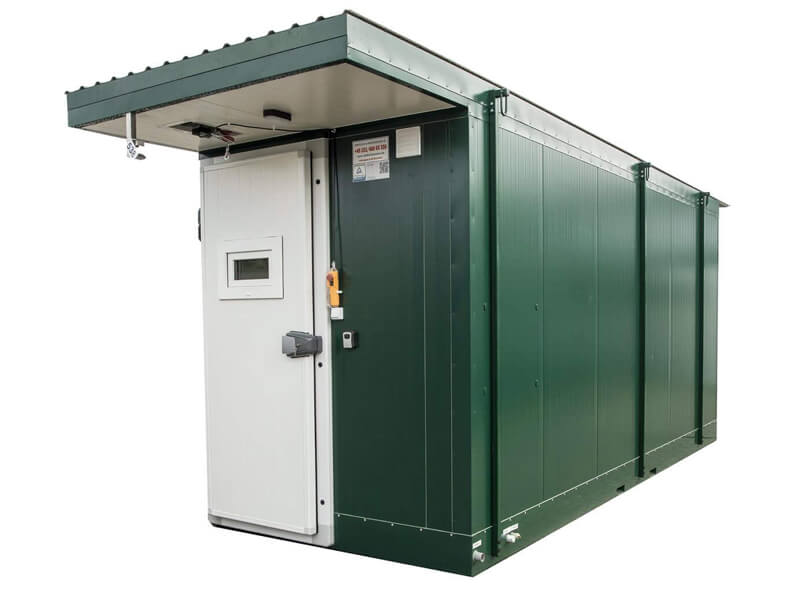

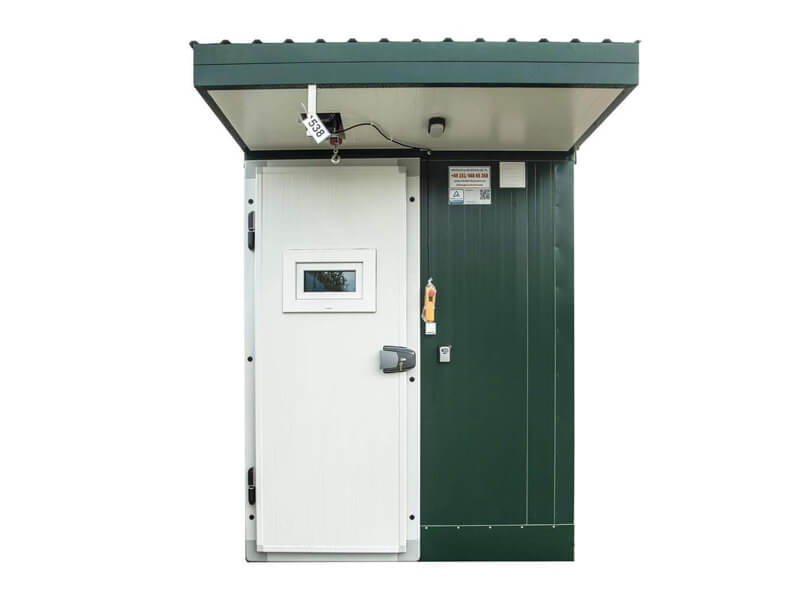

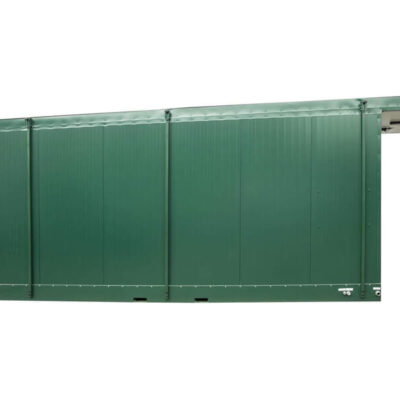

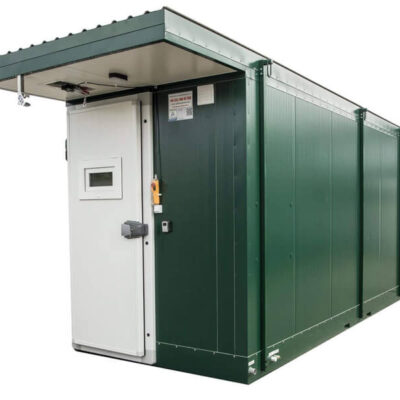

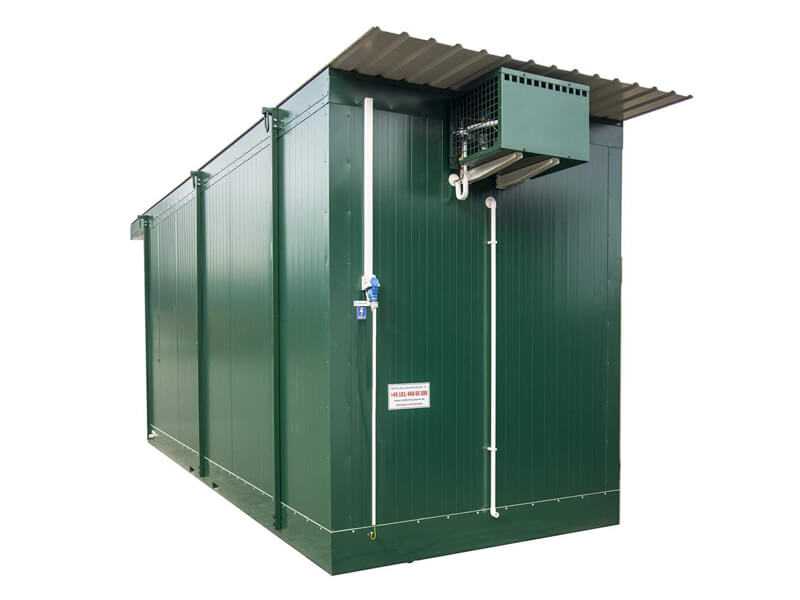

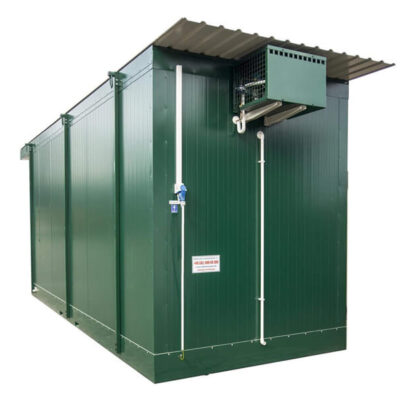

The 6×2.2 unit is one of the largest containers available. This model is an ideal solution for customers who need both a big processing room and a large cooling room.

Compared to the 6×2 model, the 6×2.2 processing container is 20 cm wider, with an external width of 220 cm and an internal width of 200 cm.

Our containers are made from 100 mm-thick polyurethane foam layered panels, covered on both sides with a metal sheet (new XPS technology, no corrosion, long-lasting, easy to clean, easy to move, no visible installation, no silicone, superb isolation).

Thanks to its special construction, all units are durable and weather-resistant. The steel frame is galvanised and powder-coated, ensuring excellent corrosion protection and long-lasting durability. At the same time, the containers remain lightweight and mobile.

The integrated forklift operating slots allow for easy unloading and repositioning with a forklift. Additionally, the lifting hooks on the frame enable simple transportation with a crane.

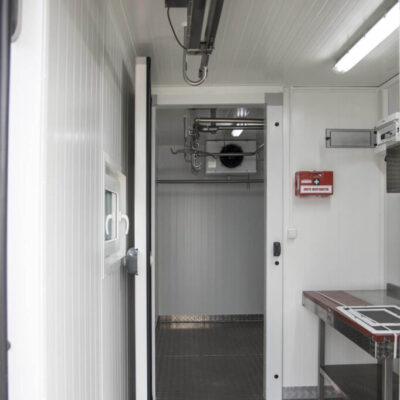

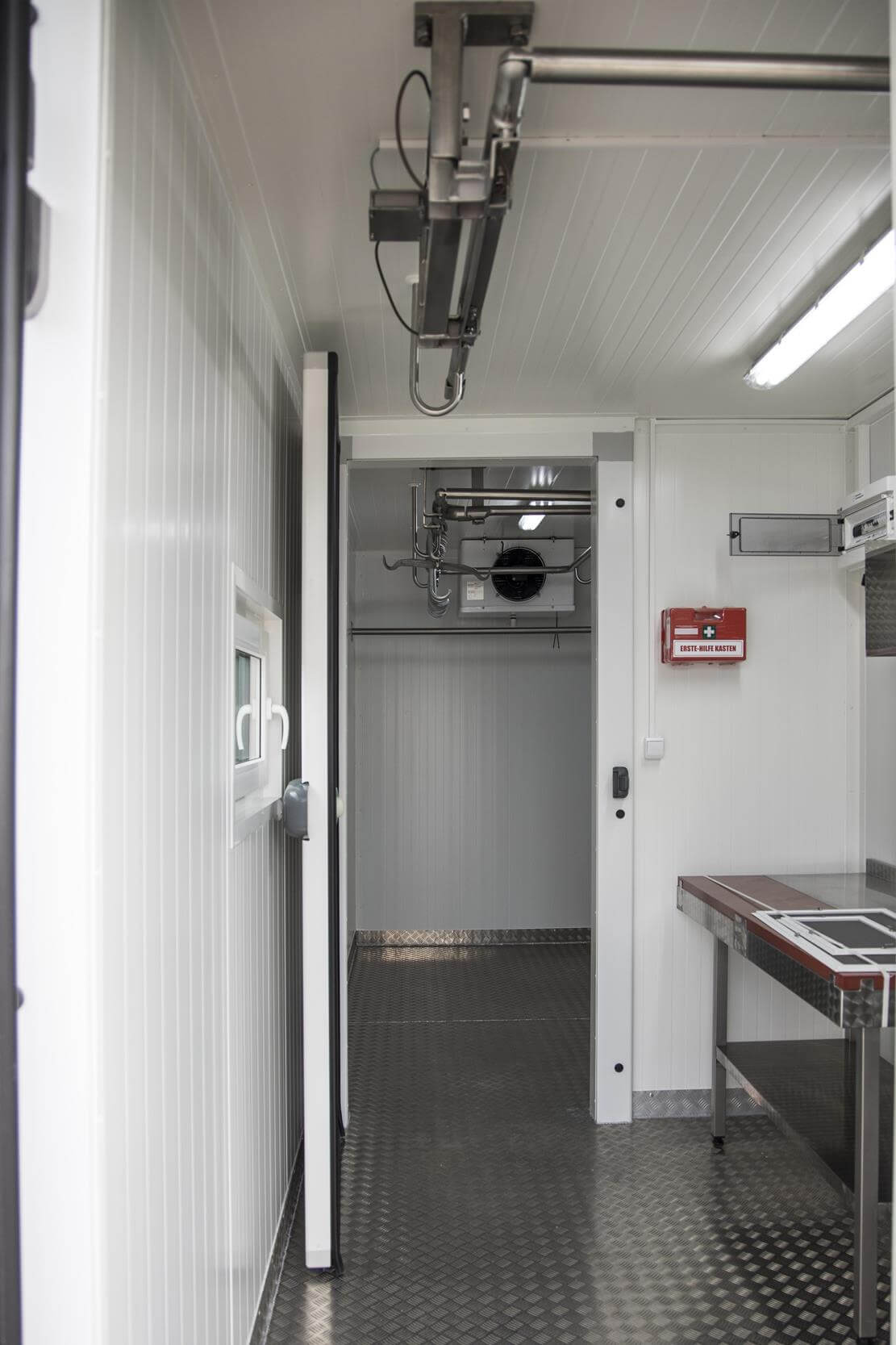

Each processing container consists of two separate areas:

Processing room – a space designed for wild game processing.

Standard equipment includes:

Stainless steel rail system with 15 Euro hooks
Hygiene wall
5-litre boiler (2000W)
Water hose
Knife magnet
1.5 m stainless steel processing table with hook station
Wall shelf
First-aid kit
Stainless steel waste bin
Spreader hook (1 piece)

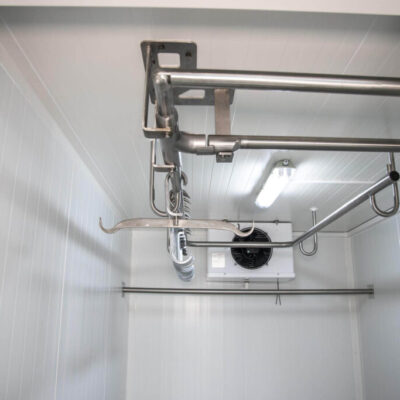

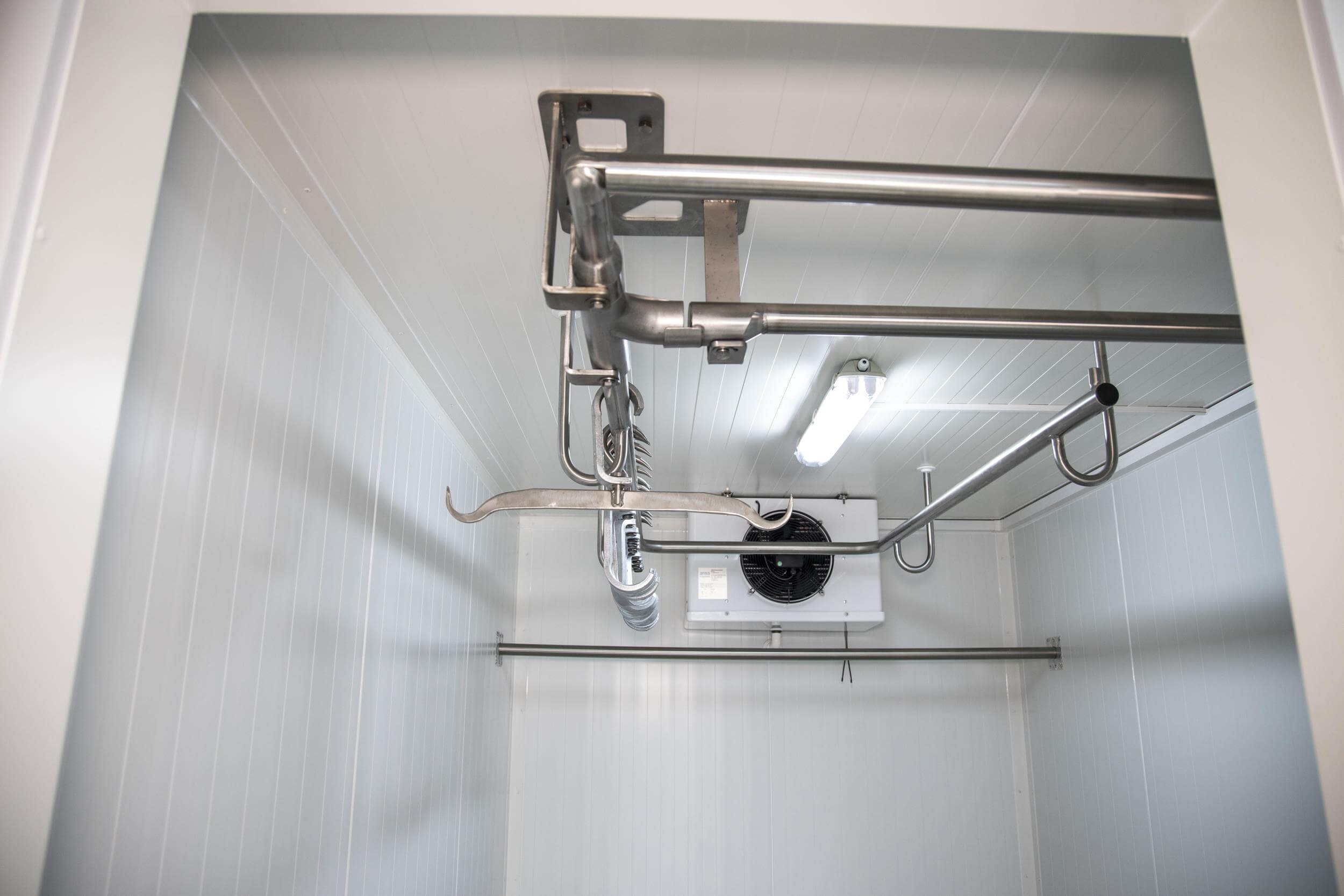

Cooling room – a space designed for cooling and storing wild game.

Equipped with:

High-quality Embraco Aspera cooling unit, 10 cm-thick insulated walls, special cooling doors, minimum cooling temperature: -5°C, regardless of outdoor conditions.

The cooling room in the 6×2.2 processing room can accommodate:

15 wild boars
12 deer
20 roe deer

Each container can be ordered in a standard or mirrored-configuration version.

Detailed standard and additional equipment options can be found on our website.

Exterior colour and flooring options:

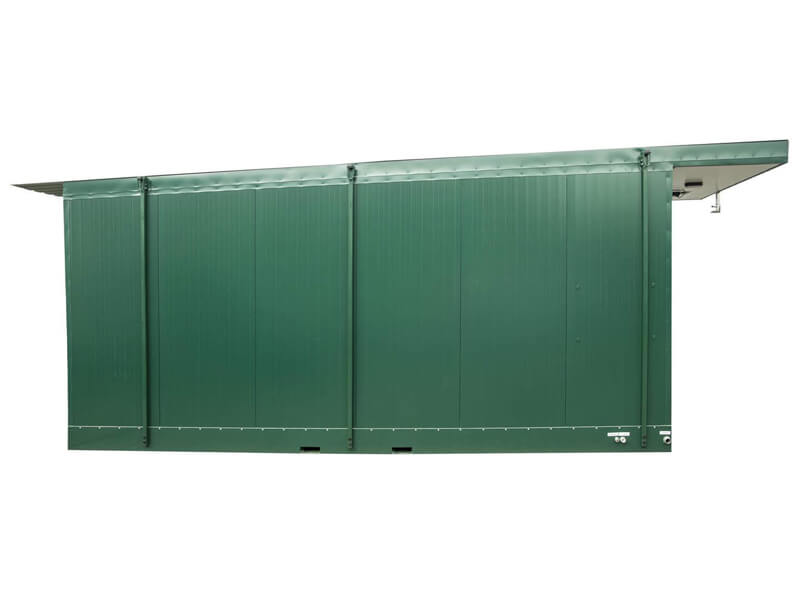

Colours: green (RAL 6005) or white (RAL 9010)

Flooring: smooth stainless steel, R13 aluminium checker plate, or self-levelling polyurethane resin flooring

We deliver all of our units anywhere in the UK.

Equipment

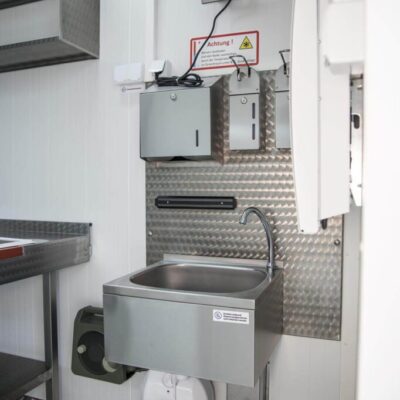

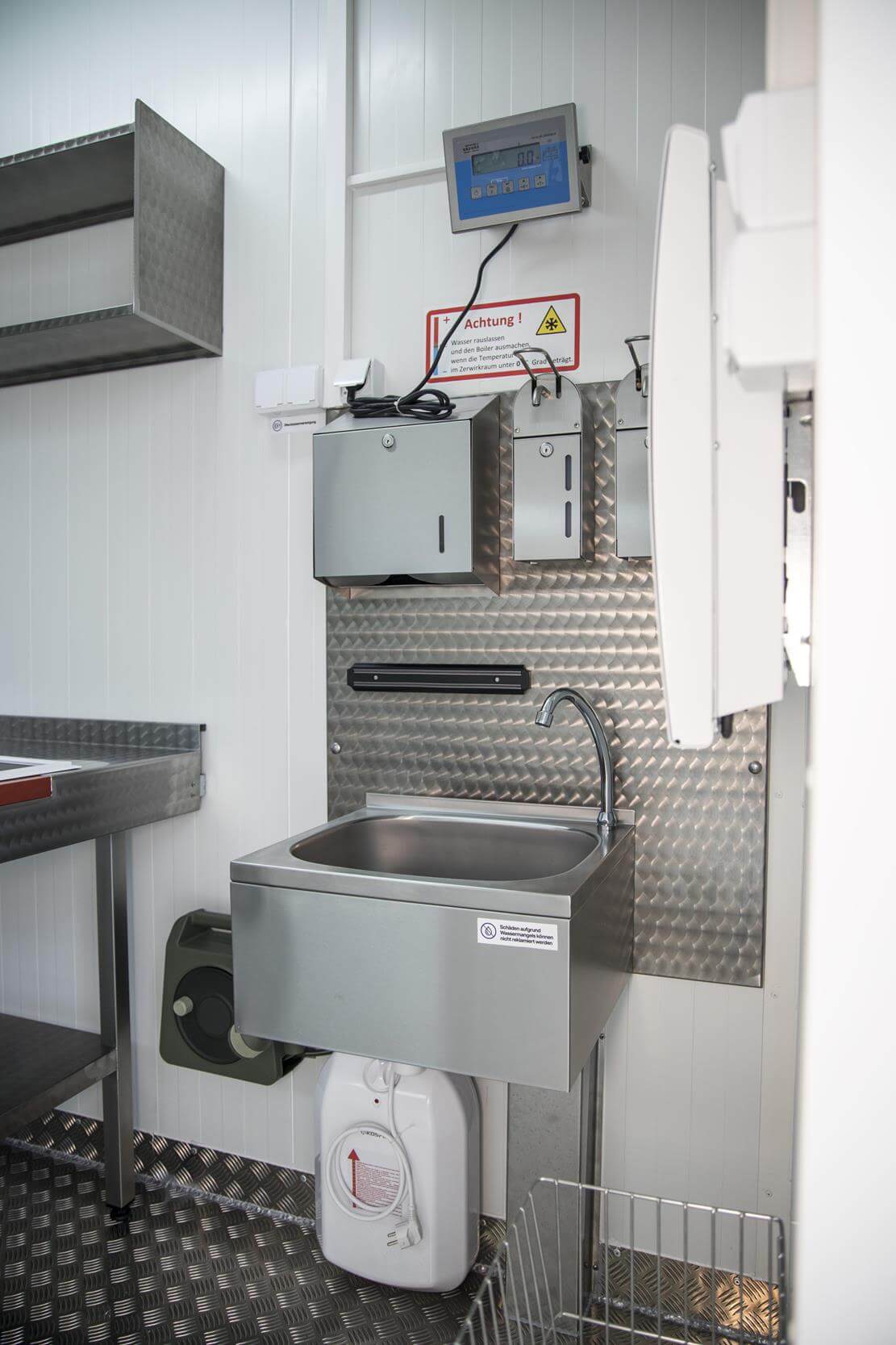

Hygiene wall (stainless steel):
Knee-operated sink
5-litre boiler (2000W) providing water up to 50°C
Water hose, large rear wall, and paper towel dispenser
Soap and disinfectant dispensers (each 1L)
Knife magnet

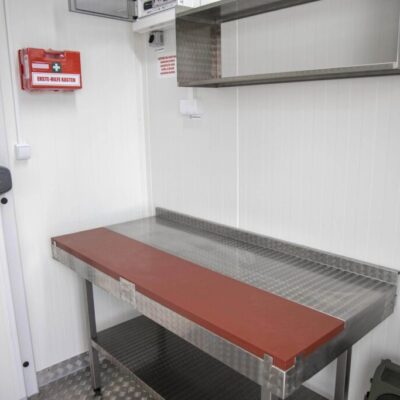

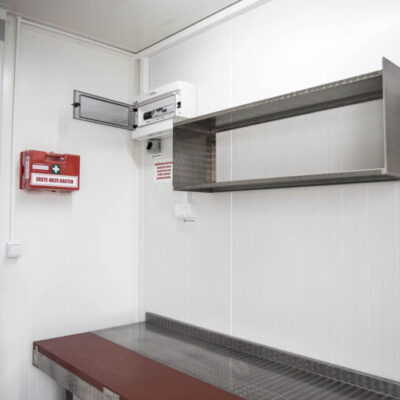

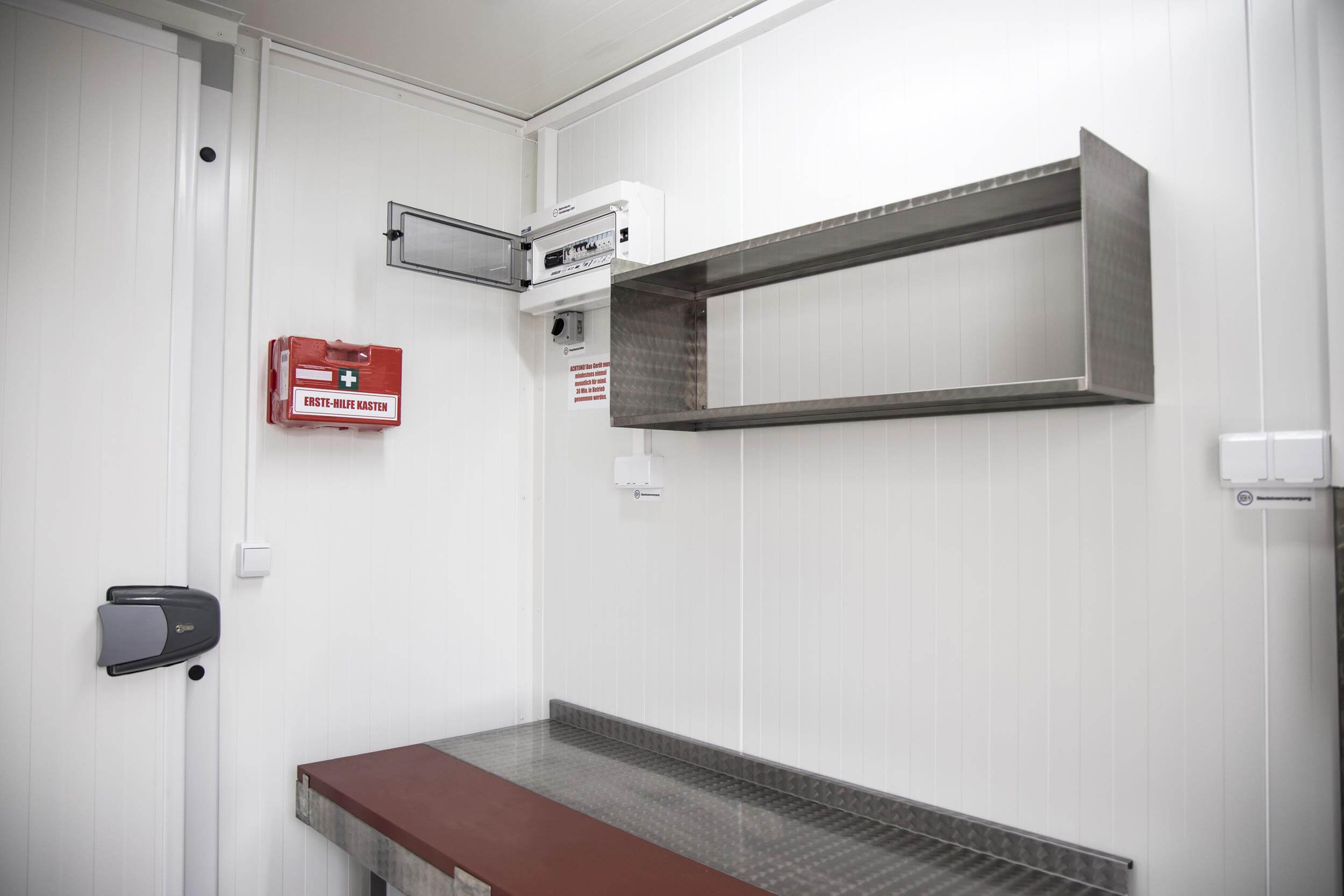

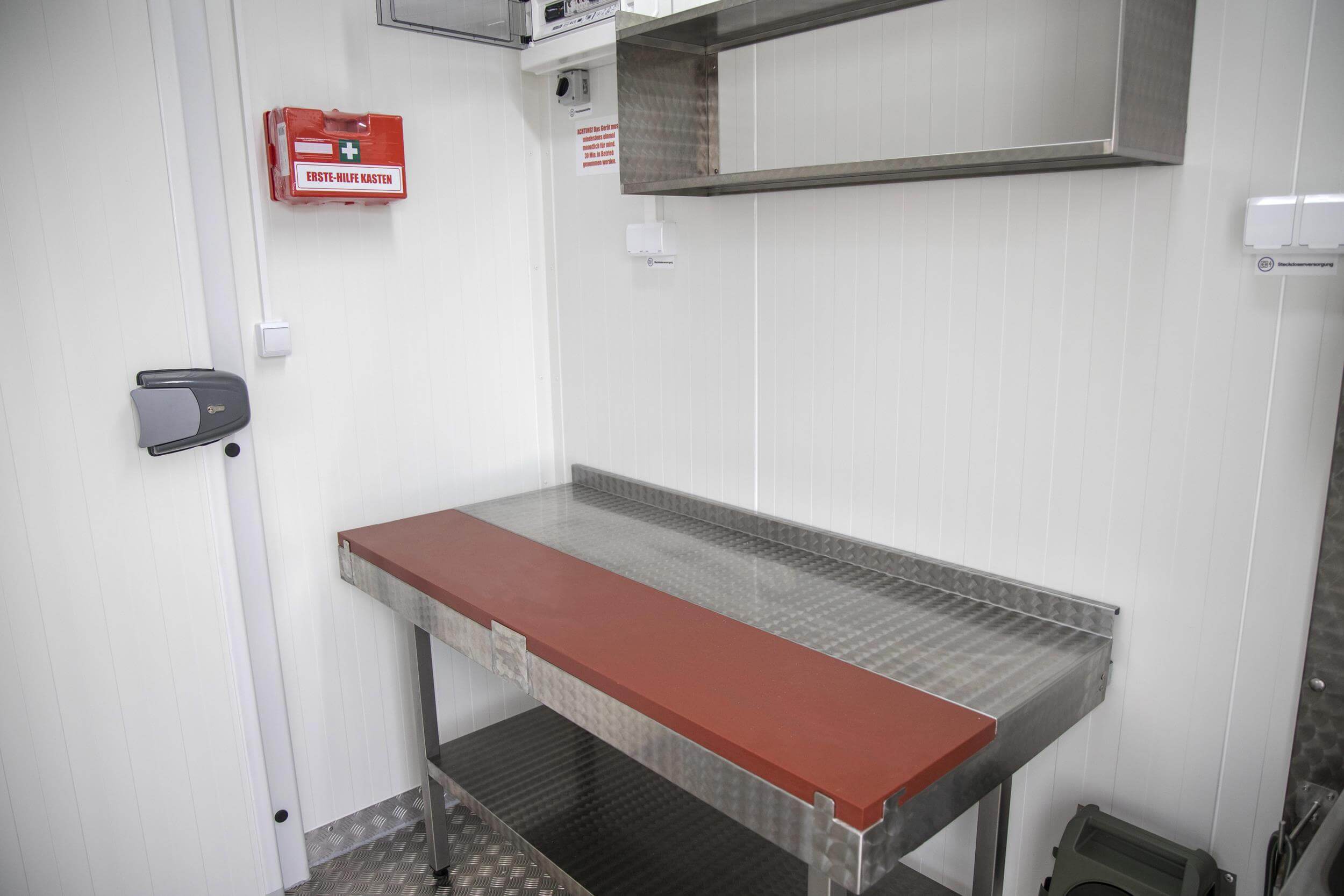

1.5 m stainless steel processing table with brown PE plastic surface and hook station
Wall shelf
First-aid kit

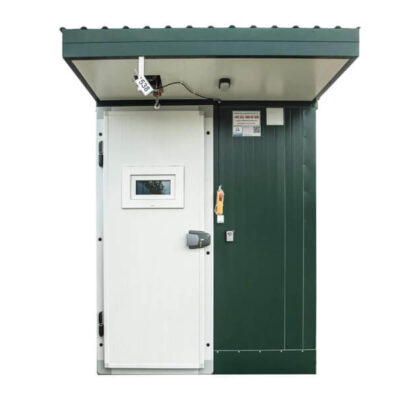

Double roof – additional roof made of corrugated sheet metal

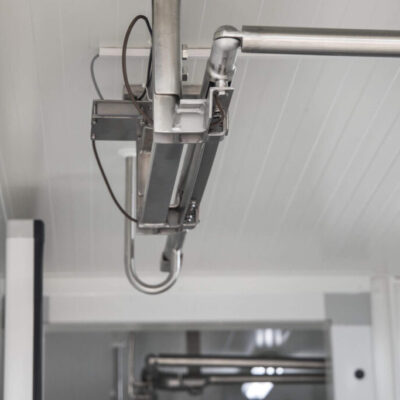

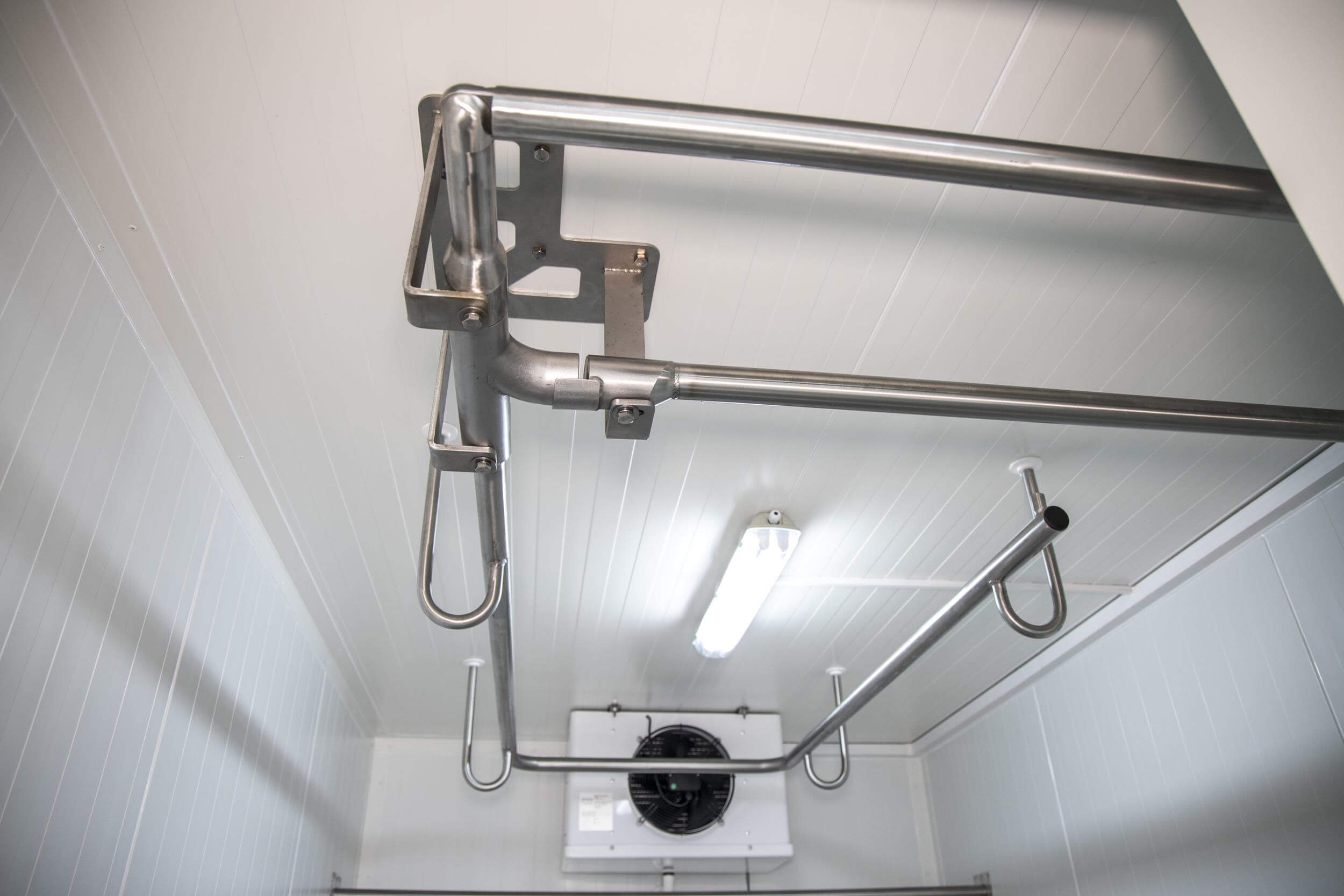

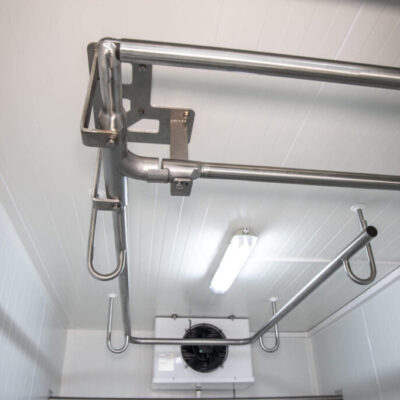

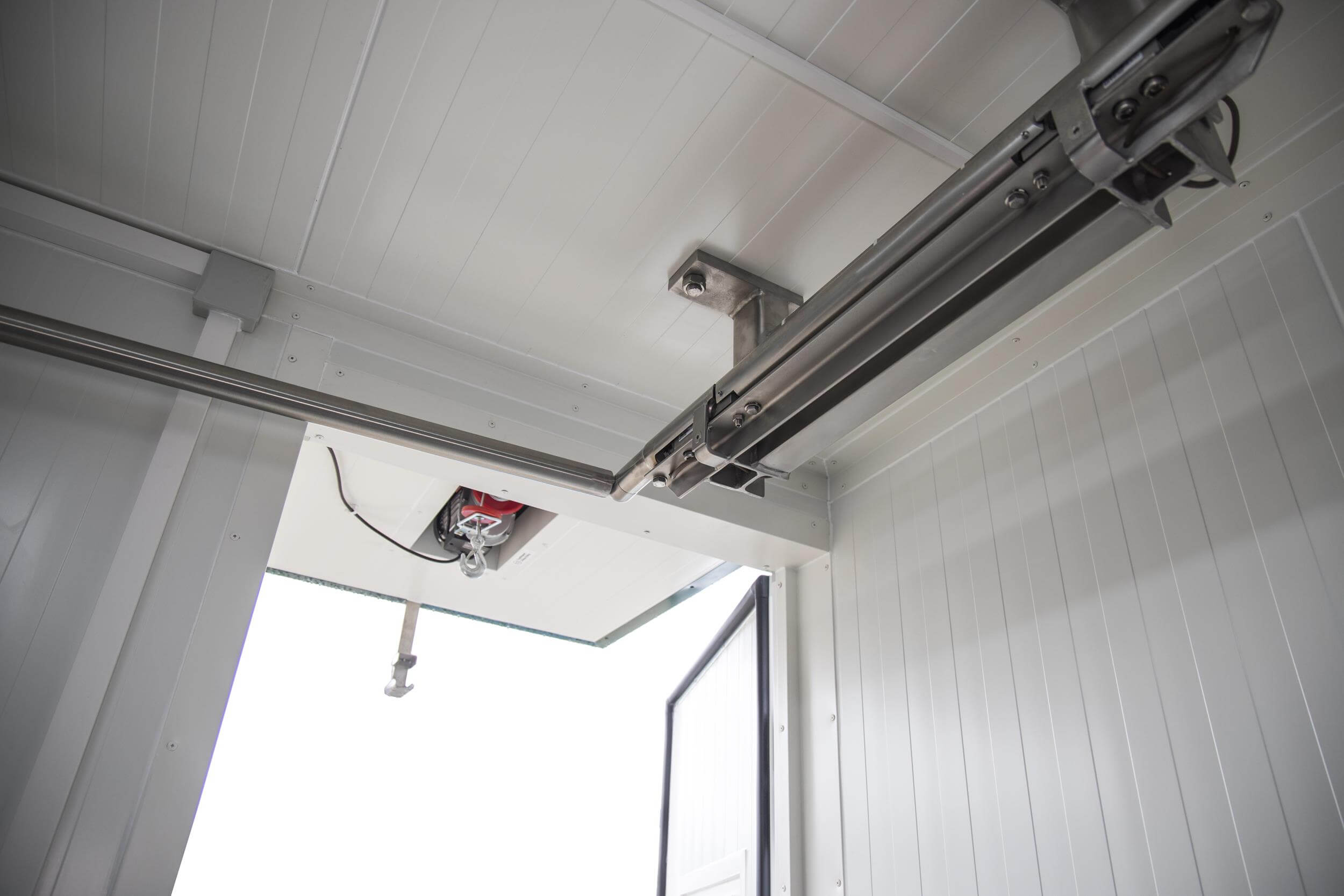

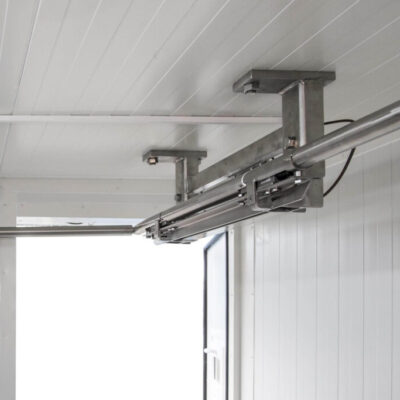

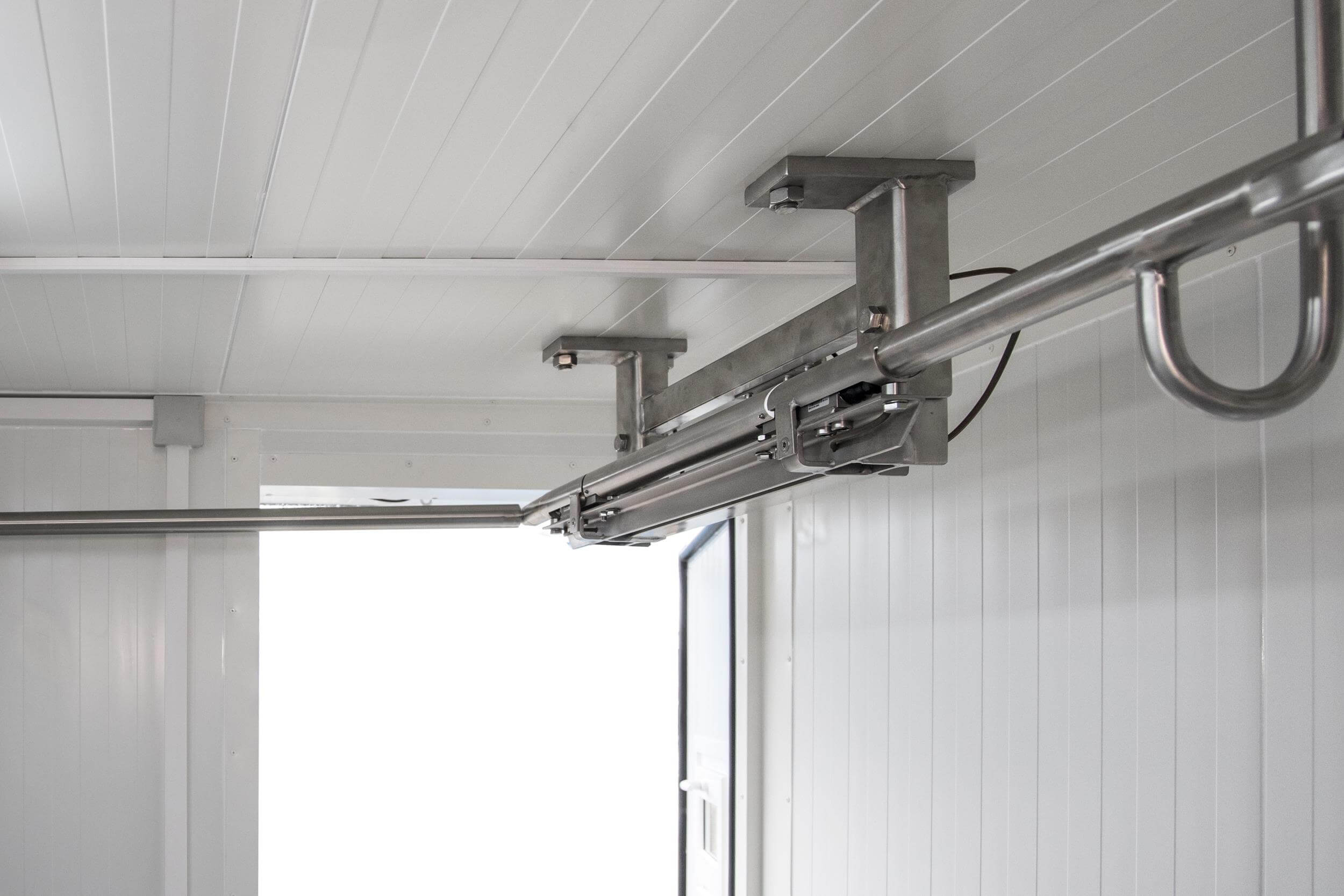

Stainless steel rail system for hanging hooks
Set of 15 Euro hooks (with side hooks, DIN 5047)

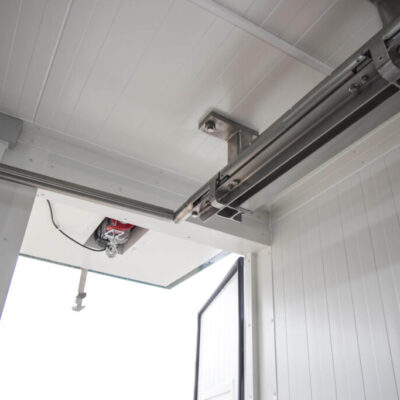

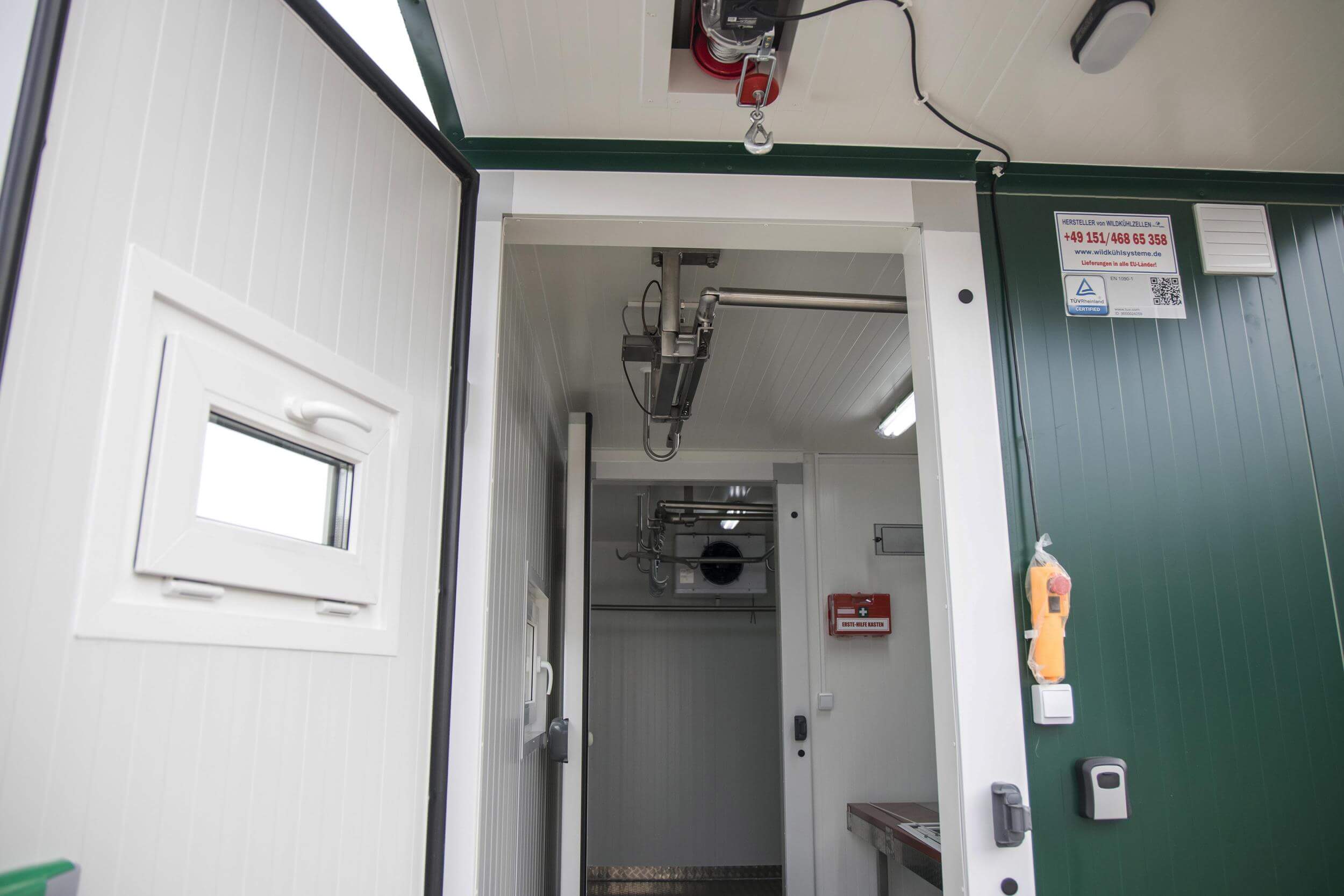

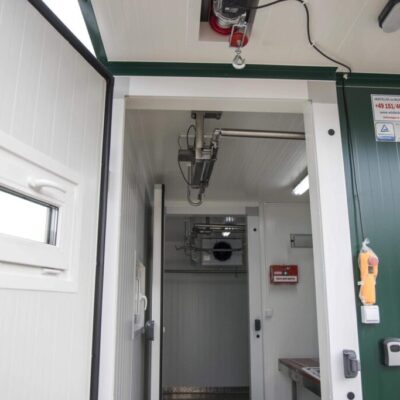

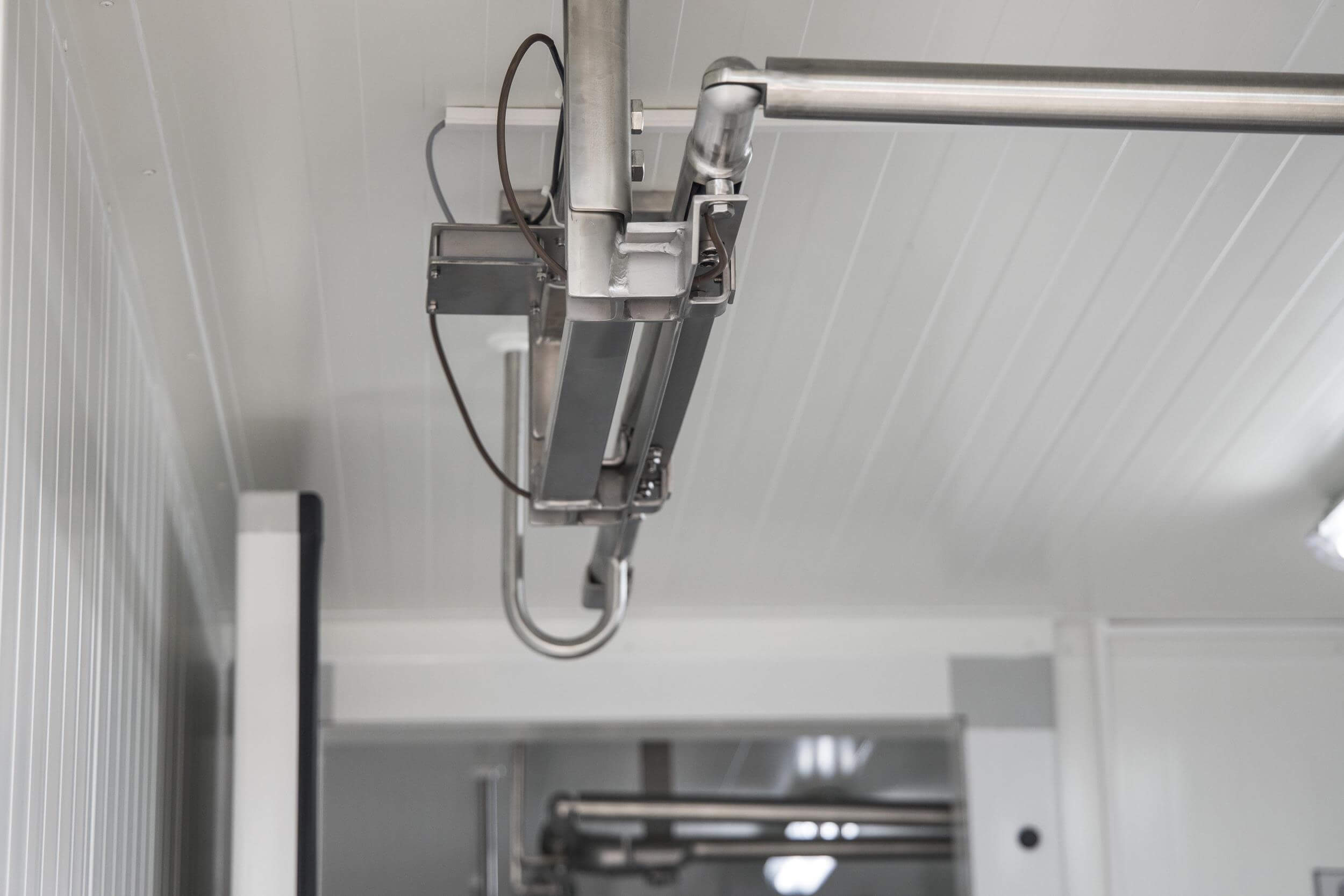

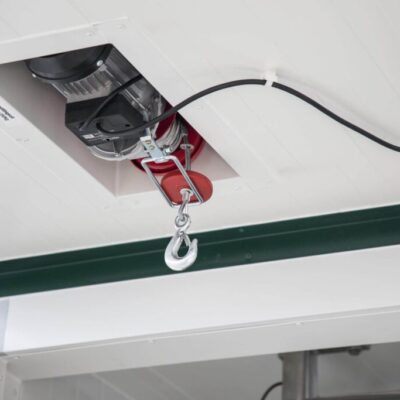

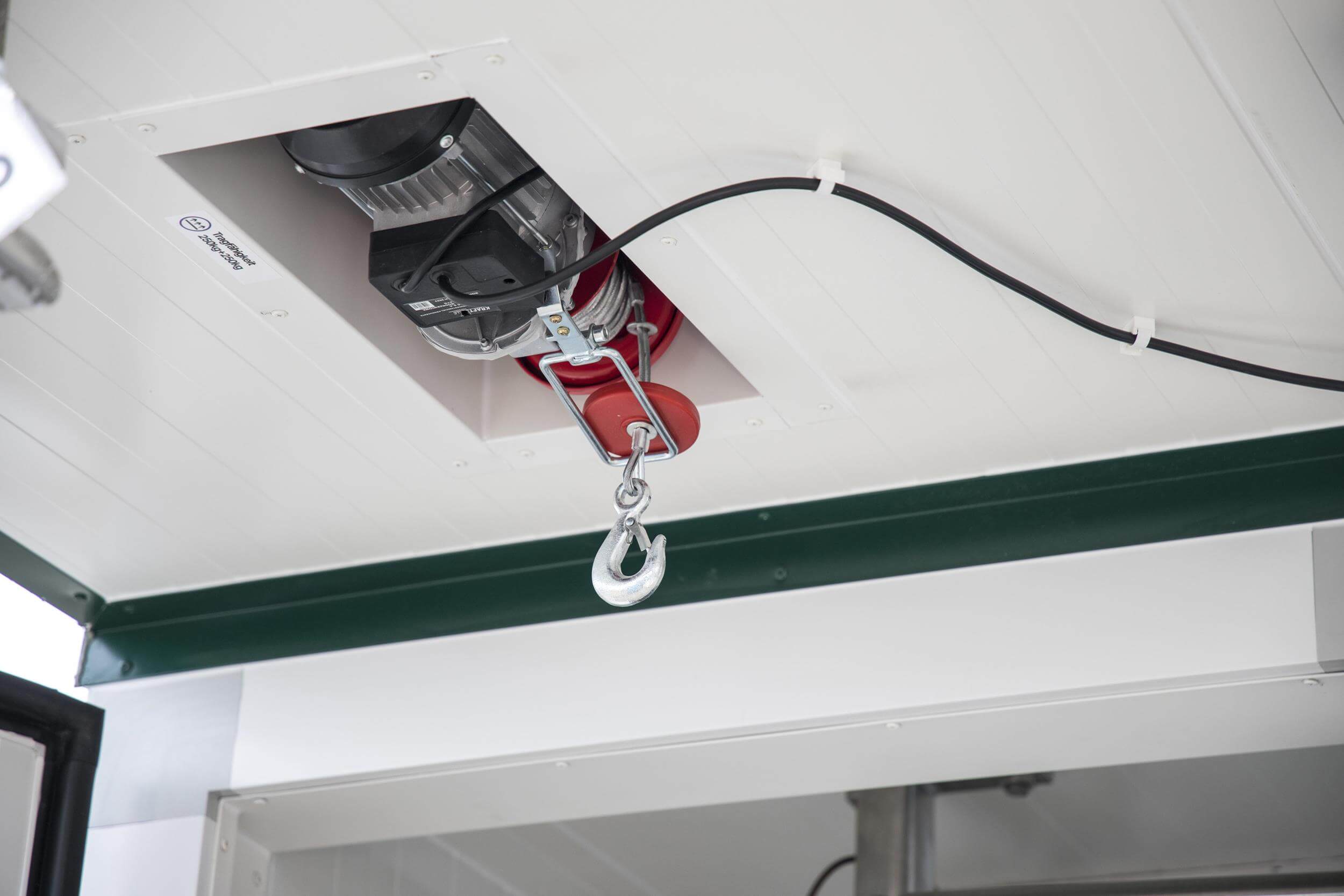

Electric hoist with a lifting capacity of 300/600 kg above the cooling container entrance
Embraco Aspera cooling unit
Electronic temperature control adjustable from +10°C to -5°C

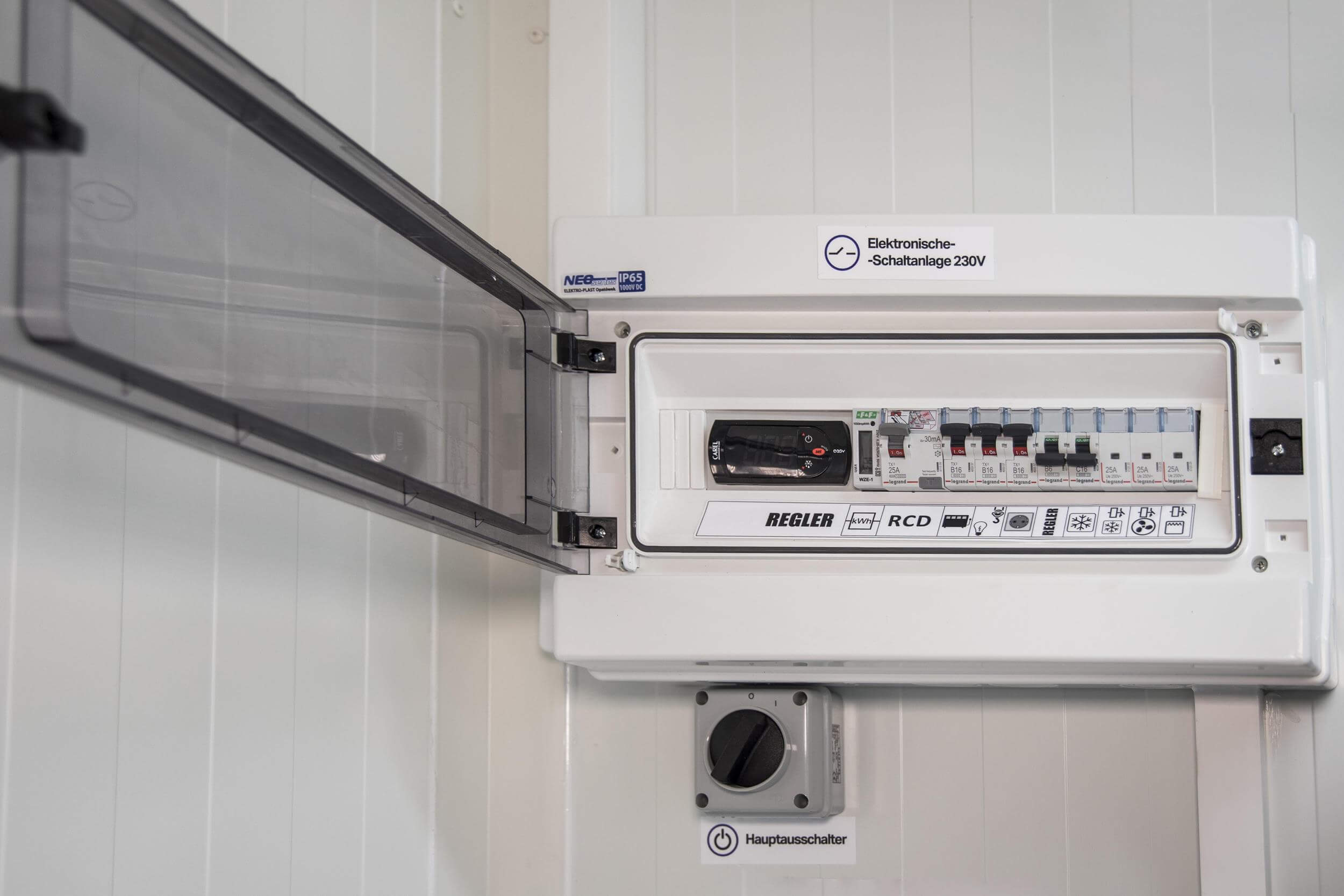

IP65-rated fuse box and electric meter
LED lighting for both interior and exterior
230V AC power supply
Key set for both doors (2x)
Hermetic 230V IP65 power sockets
Main switch
Spreader hook (1 piece)
Stainless steel waste bin
Insulated pipes inside the container

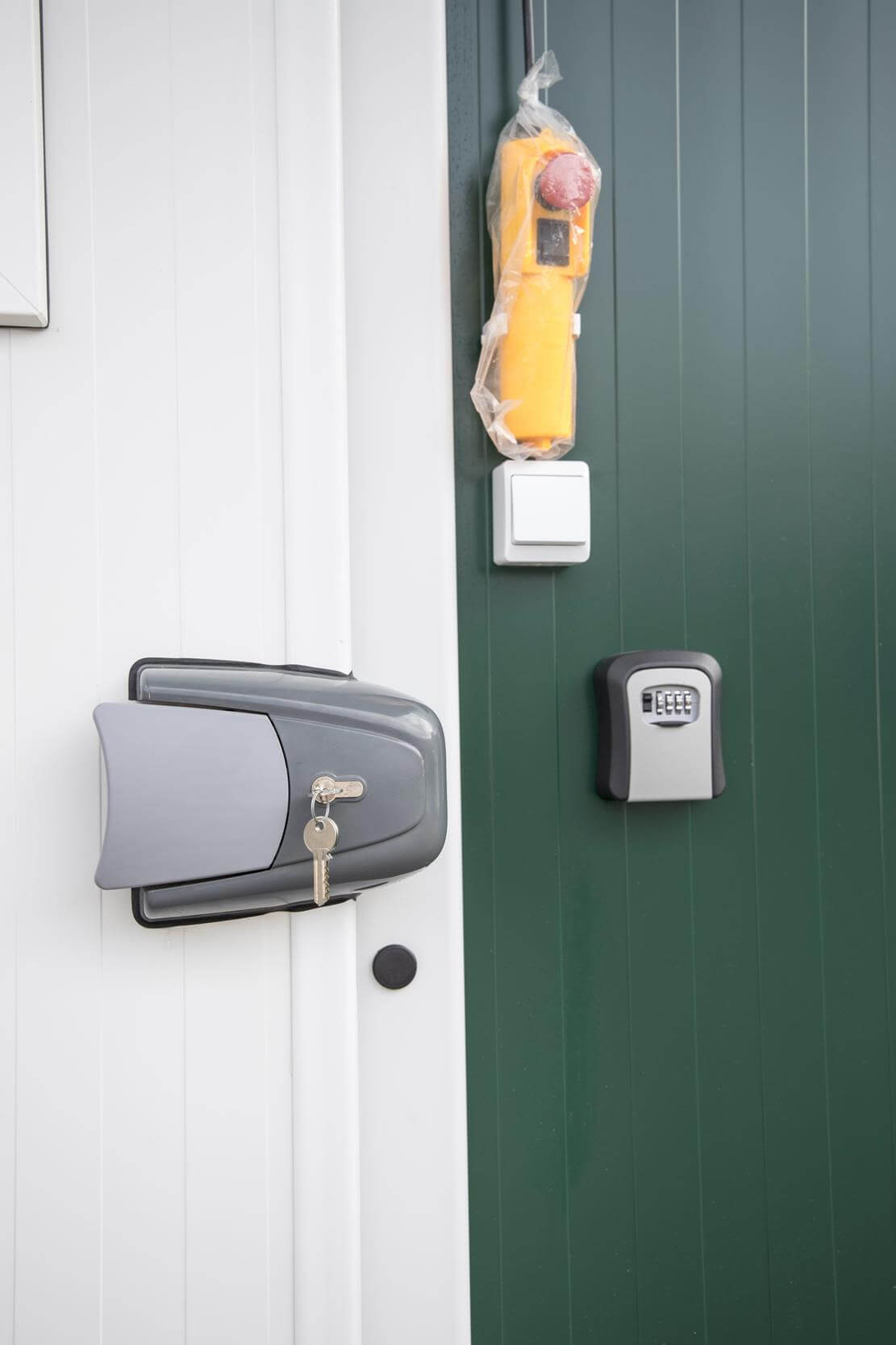

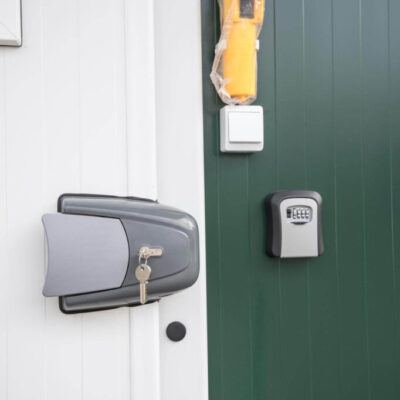

Key safe
Integrated forklift operating slots for easy transportation
Floor drain, ⌀50mm
Water connection with 1/2-inch inlet (DN 15)
Hygiene wall drain, ⌀40mm
Power connection, 230V 16A
Certified structural stability
2-year manufacturer’s warranty

We also produce cooling containers and processing and cooling containers according to individual requirements and specifications.

Specification

Size	Length [L]	Width [S]	Height [H]
External dimensions	600 cm / 19,7ft	220 cm / 7,2ft	295 cm / 9,7ft
Internal dimensions – processing room	270 cm / 8,9ft	200 cm / 6,6ft	250 cm / 8,2ft
Internal dimensions – cooling room	300 cm / 9,8ft	200 cm / 6,6ft	250 cm / 8,2ft
Rail height:	228 cm / 7,5ft
Total length with front and rear roof:	770 cm / 25,3ft
Weight:	approx. 1800-1900 kg (depending on selected equipment)
