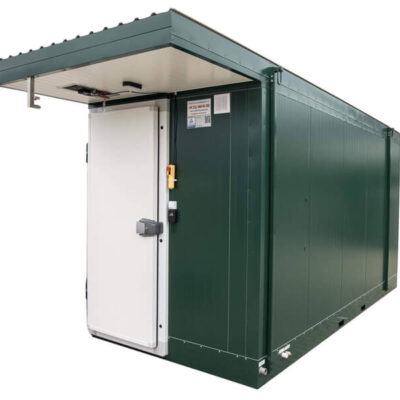

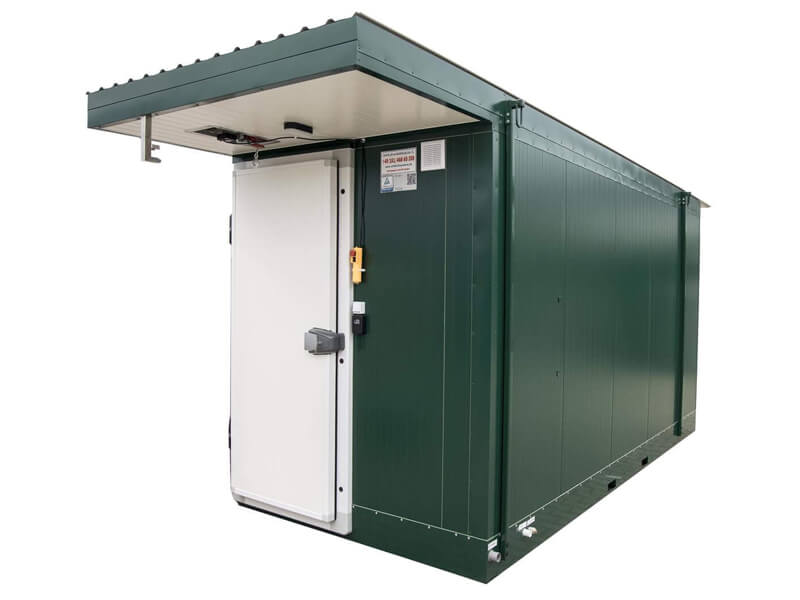

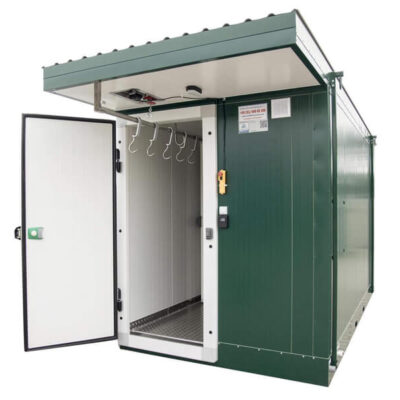

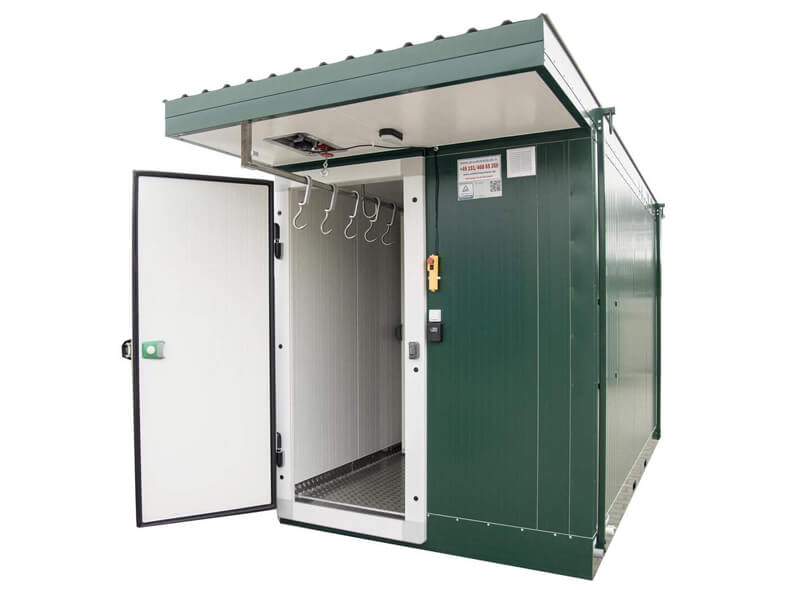

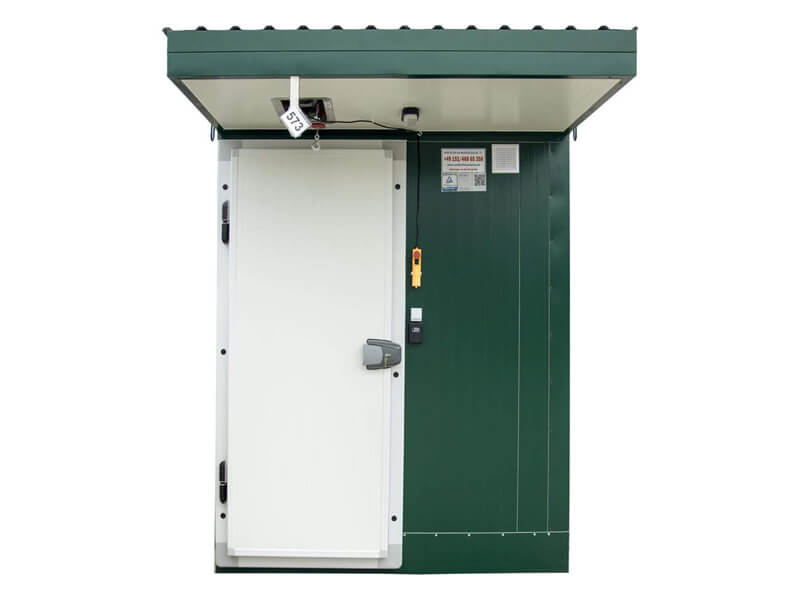

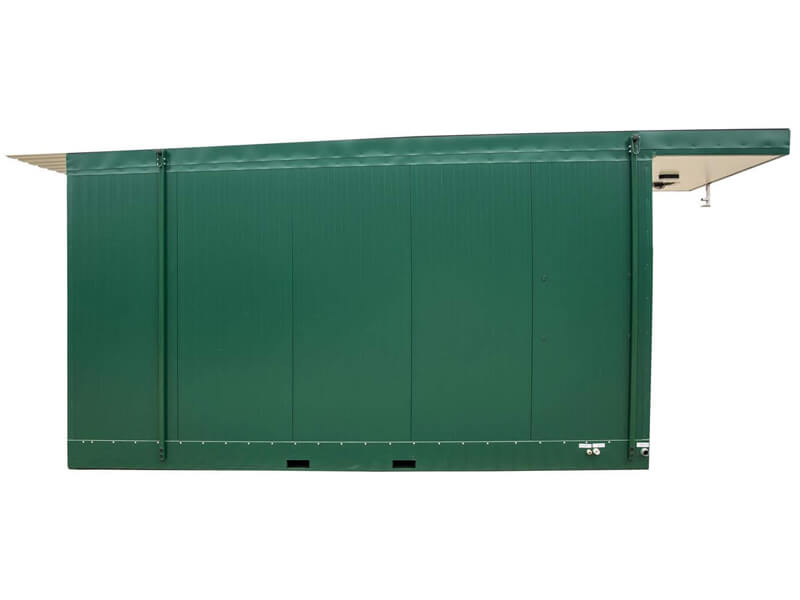

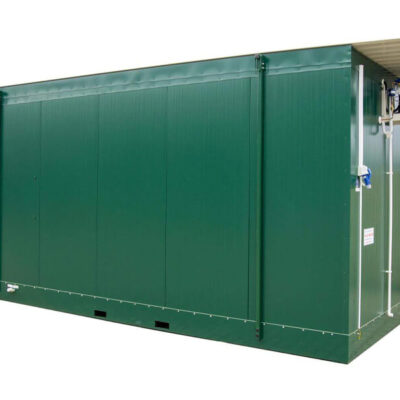

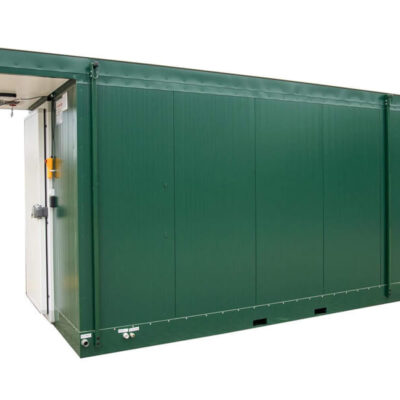

Another model we would like to introduce to you is a 5×2.2 m processing container. This unit is the best solution if you are looking for a new option for processing, cooling, and storing wild game.
This unit with a cooling unit is 20 cm wider than the 5×2 model. In the 5×2.2 unit, the external width is 220 cm, and the internal width is 200 cm. It consists of 100 mm-thick layered panels made of polyurethane foam, covered with a metal layer on both sides.
Our containers are made from 100 mm-thick polyurethane foam layered panels, covered on both sides with a metal sheet (new XPS technology, no corrosion, long-lasting, easy to clean, easy to move, no visible installation, no silicone, superb isolation).

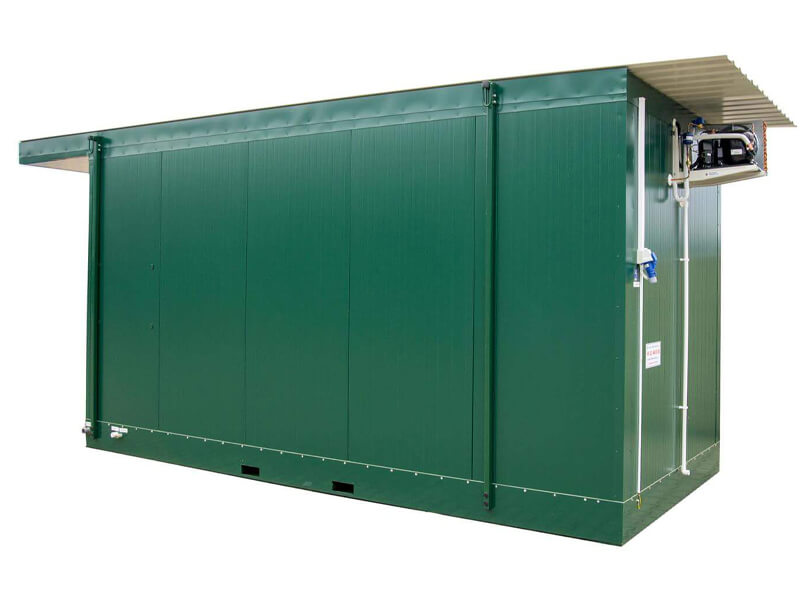

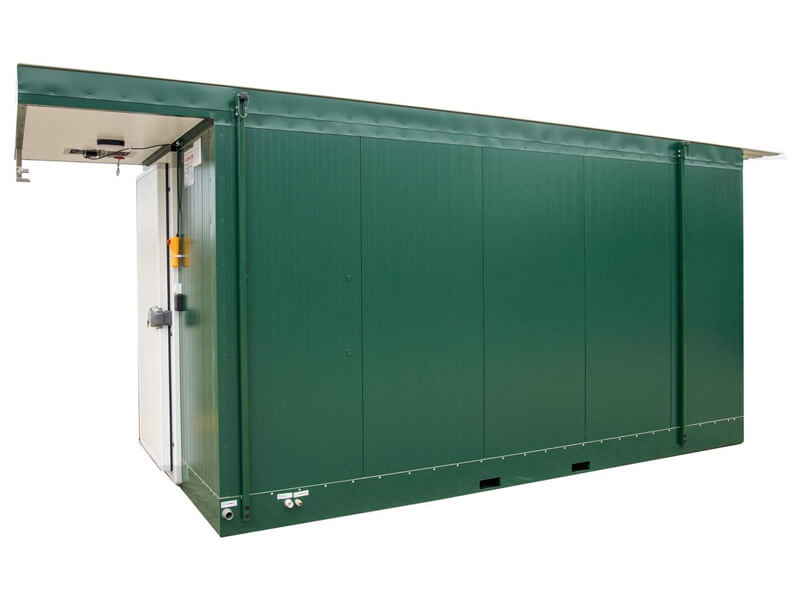

Thanks to the special construction, all processing containers are resistant and weatherproof. The steel frame is galvanised and powder-coated, ensuring excellent corrosion protection and longevity. At the same time, the containers are lightweight and mobile.
The integrated forklift operating slots in the steel frame can be used for unloading or moving with a forklift, or the container can be easily moved with a crane using the lifting hooks.
Our container units set new standards for processing and cooling wild game.
Each processing container consists of two separate spaces:

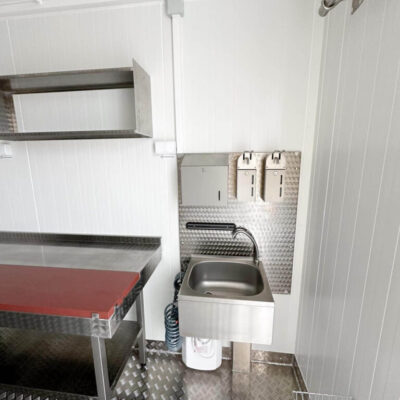

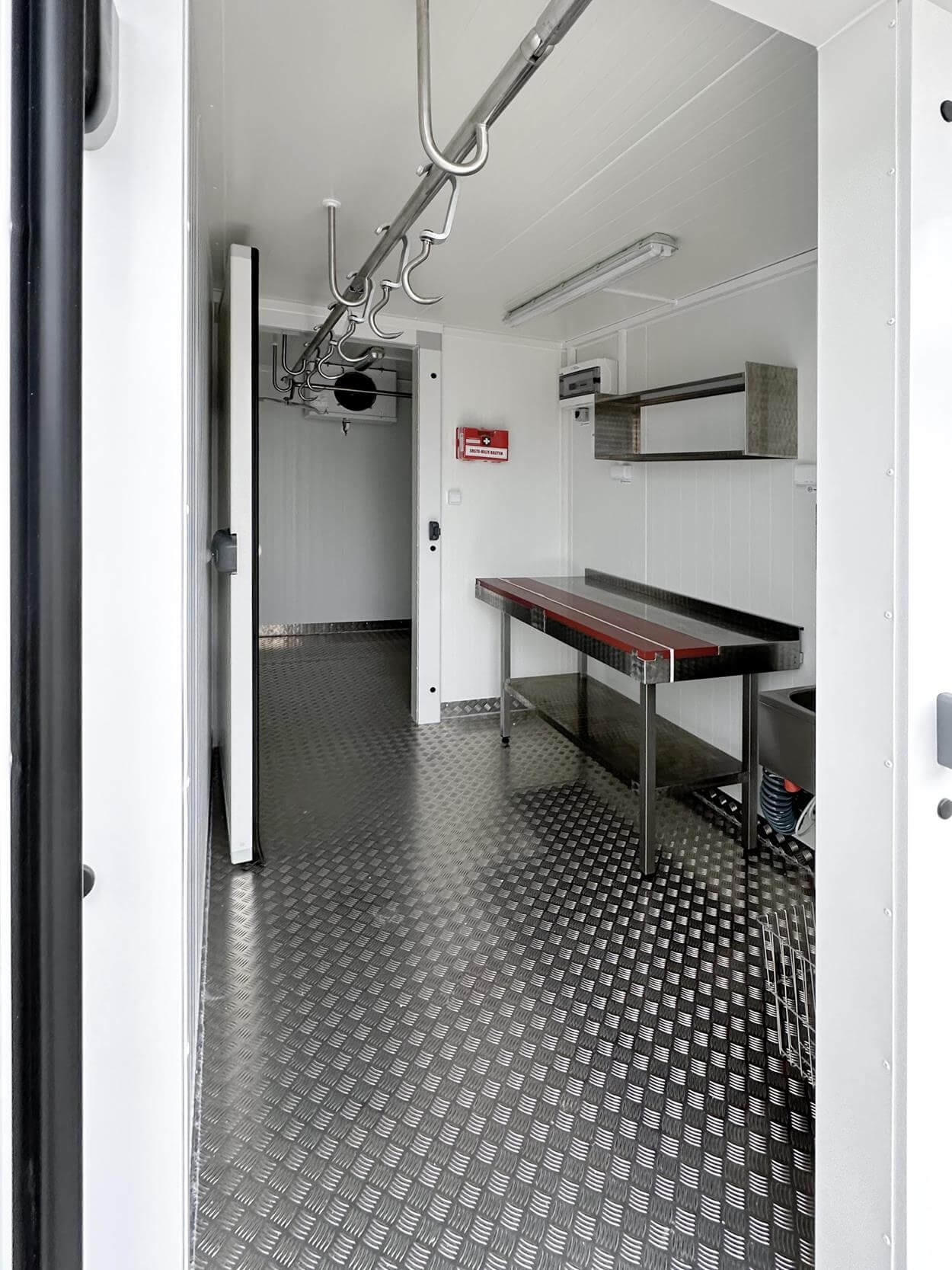

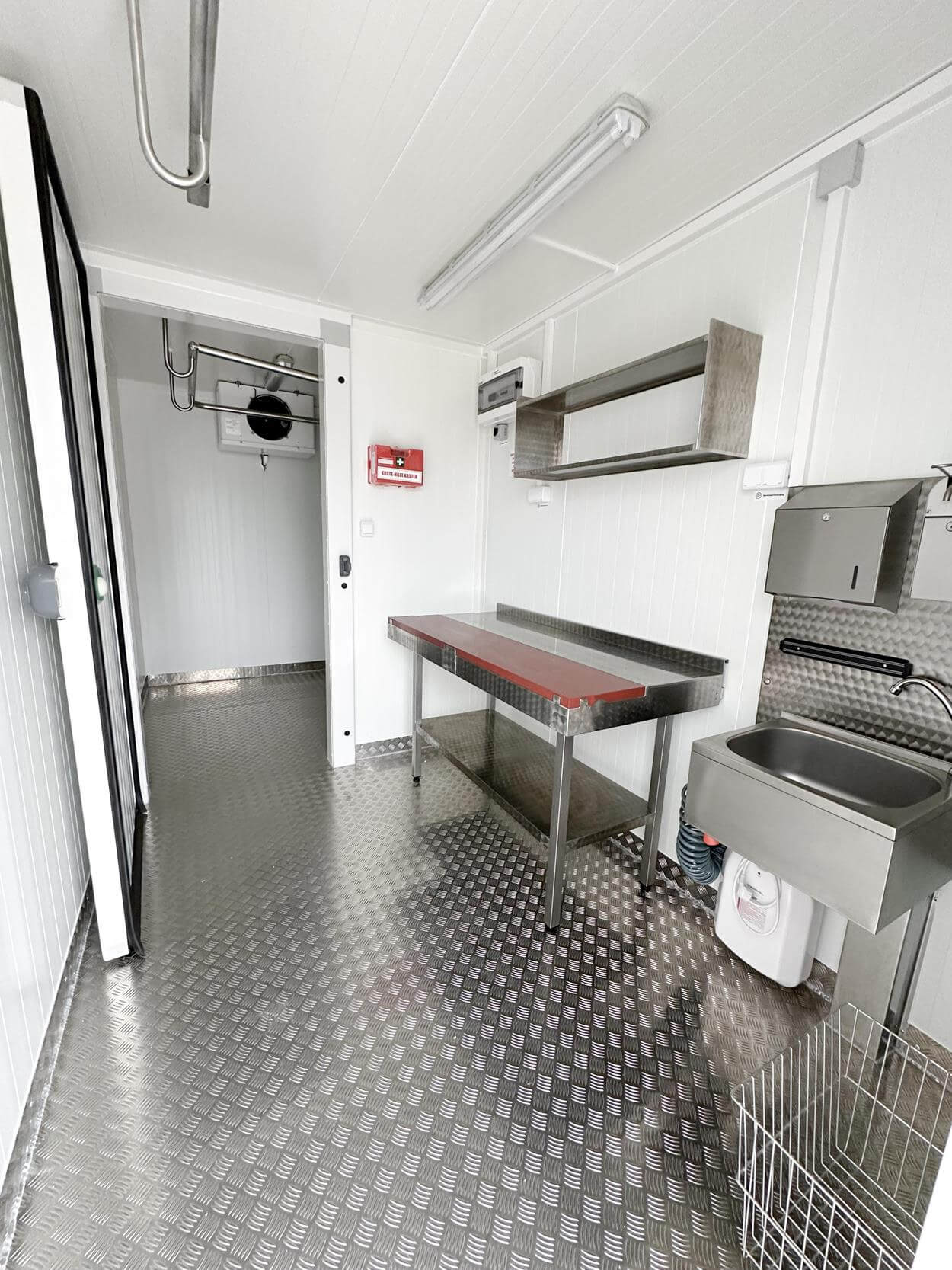

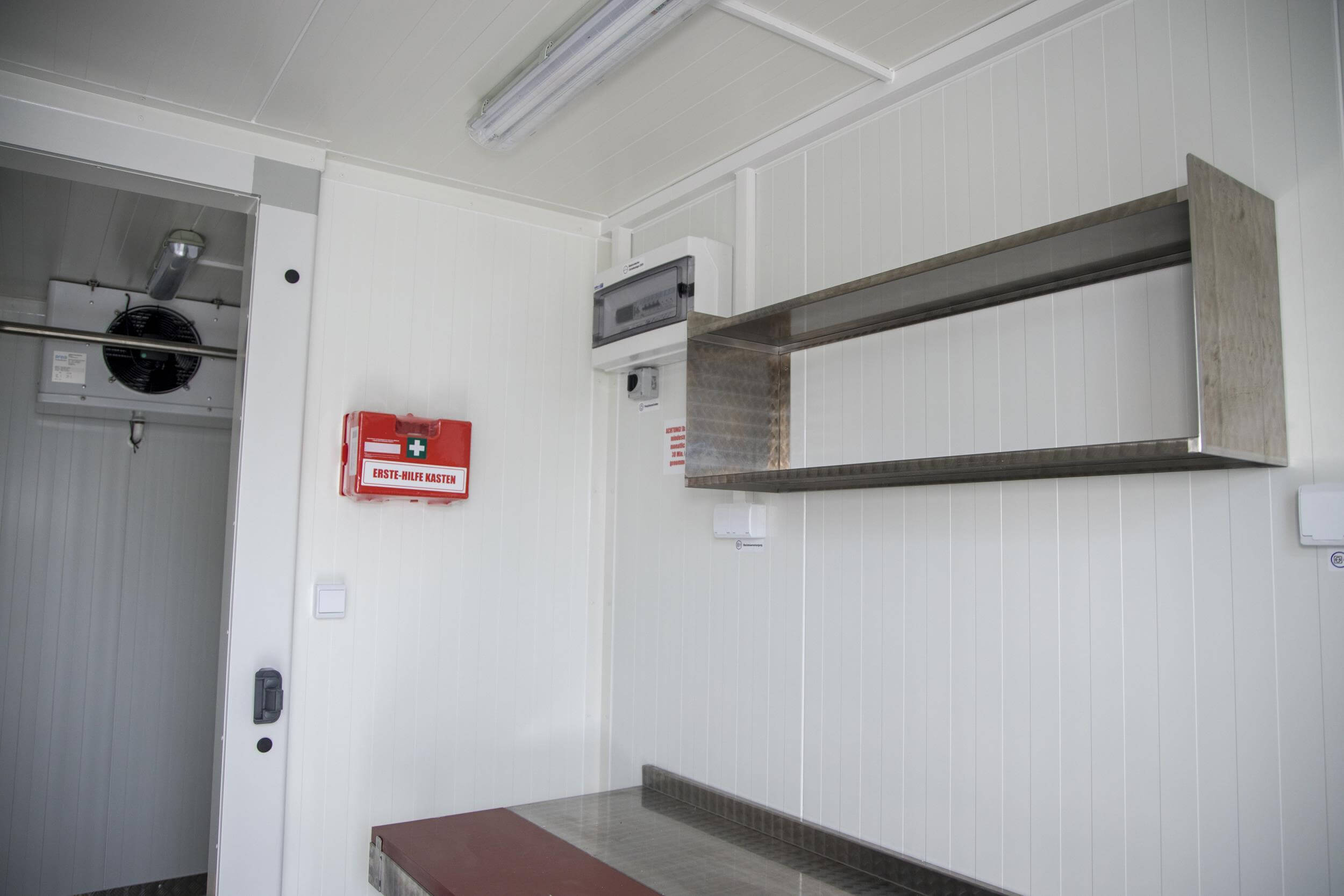

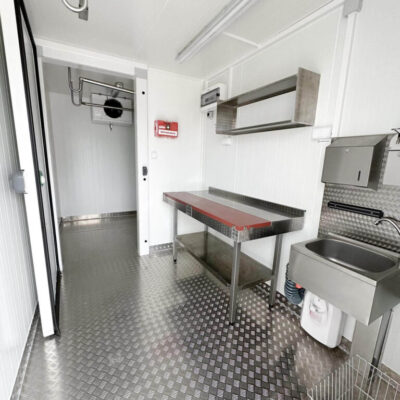

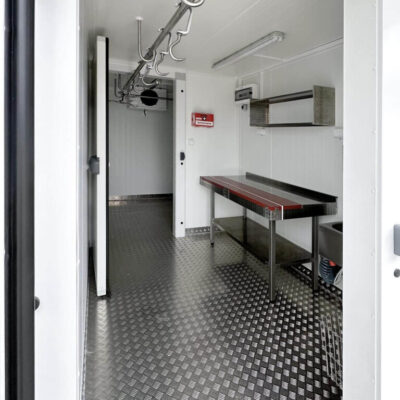

Processing room – a dedicated area for dressing wild game.
Standard equipment includes:

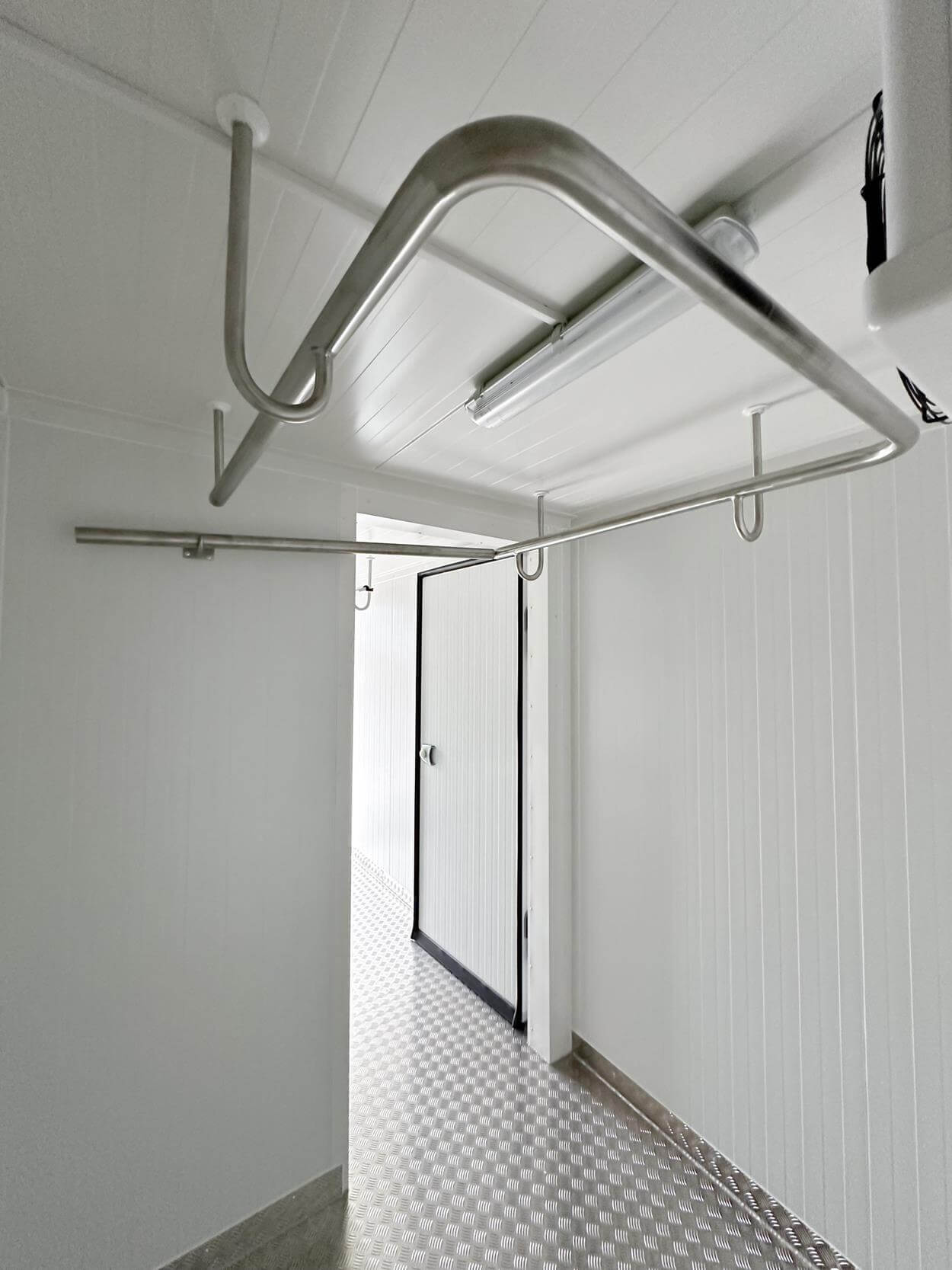

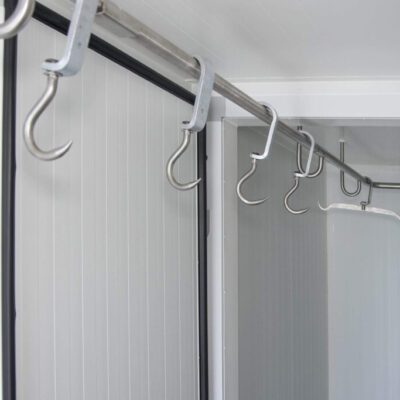

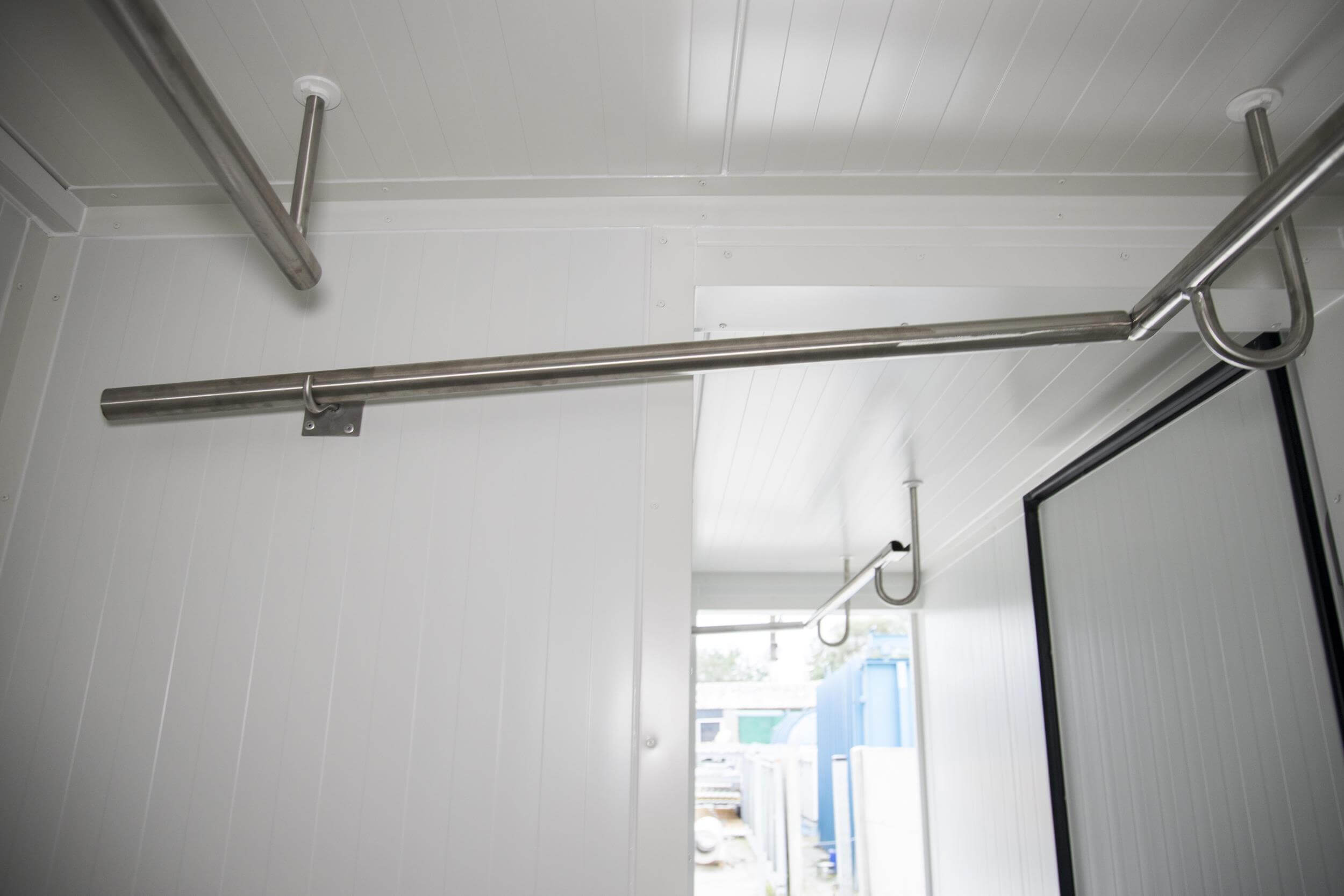

- Rail system (made of acid-resistant stainless steel) with Euro hooks (10 pieces)
- Hygiene wall
- 5-litre boiler (2000W)
- Water hose
- Knife magnet
- 1.5 m processing table with hook station

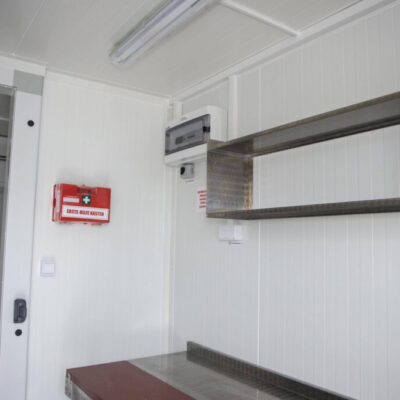

- Wall shelf
- First-aid kit
- Stainless steel waste bin
- Spreader hook (1 piece)

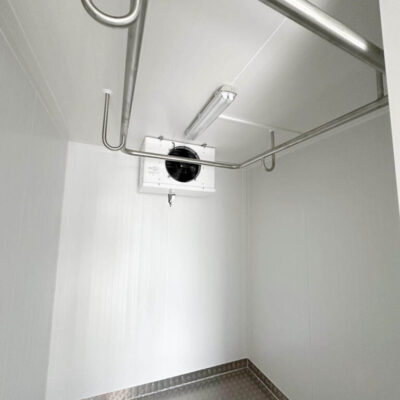

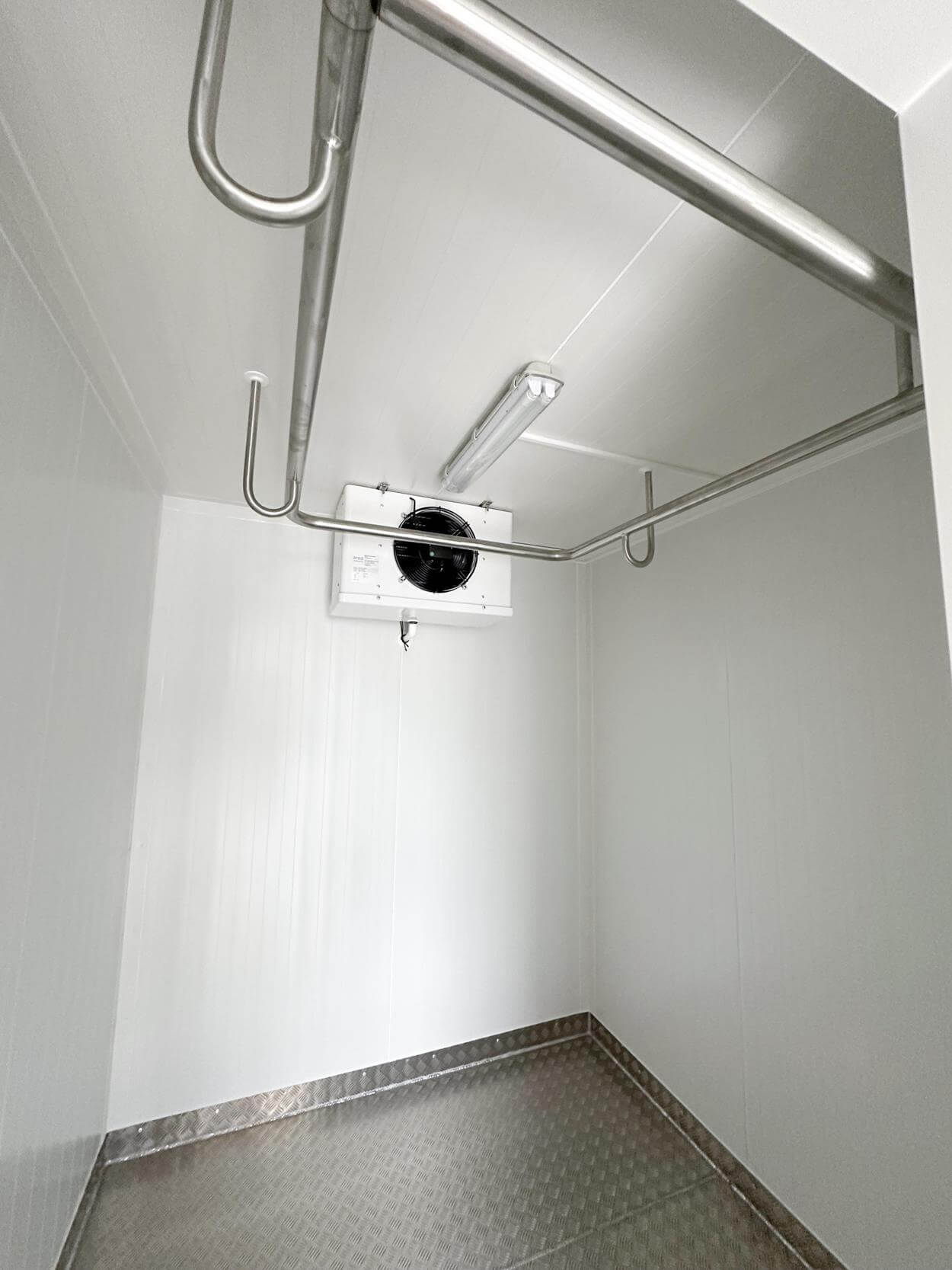

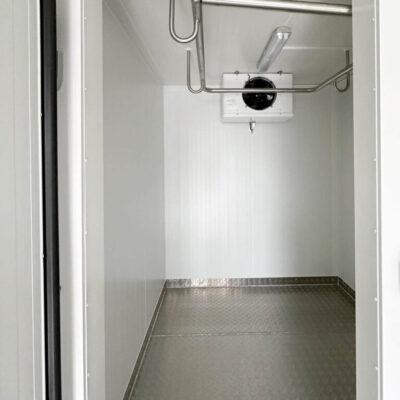

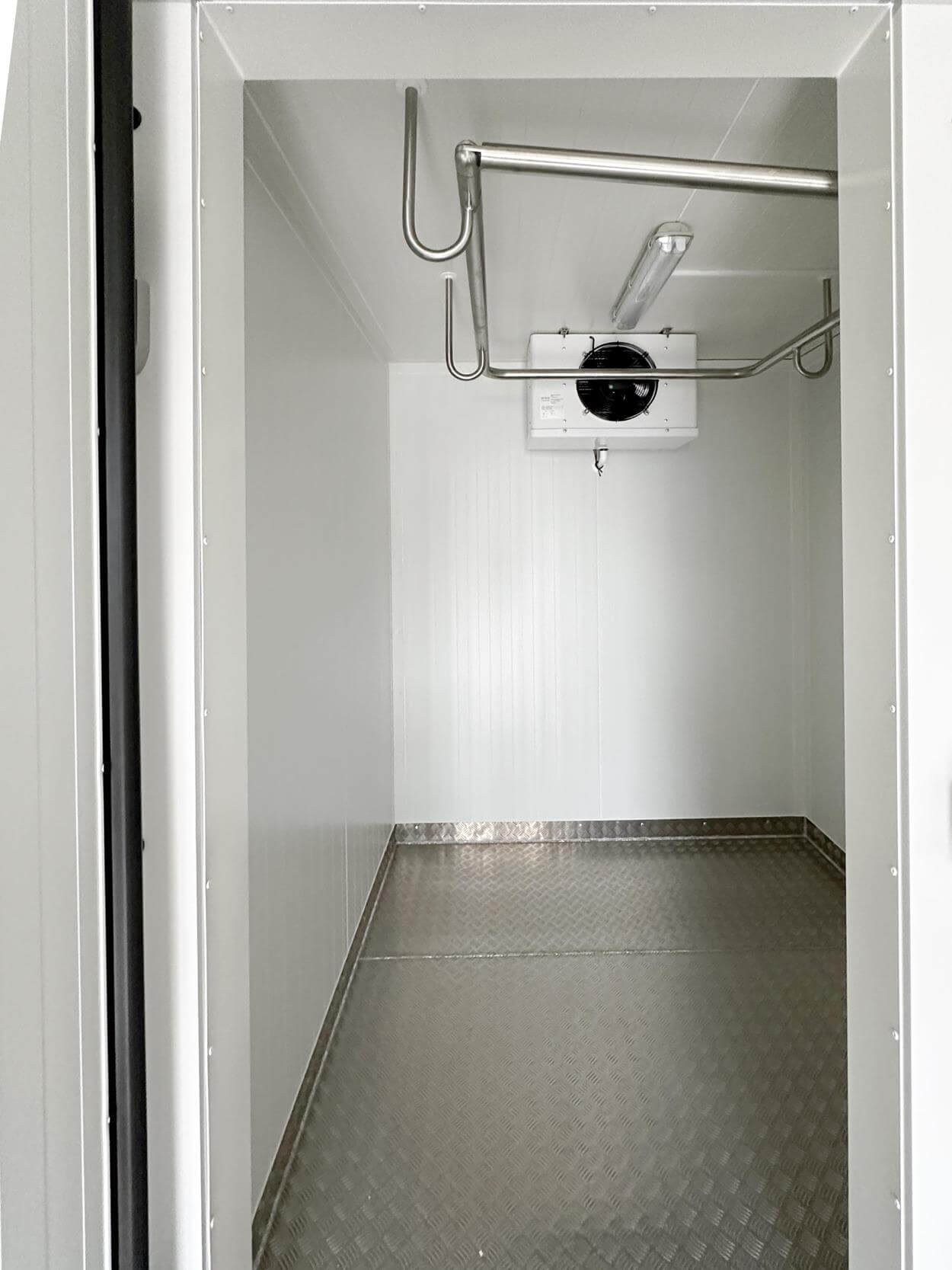

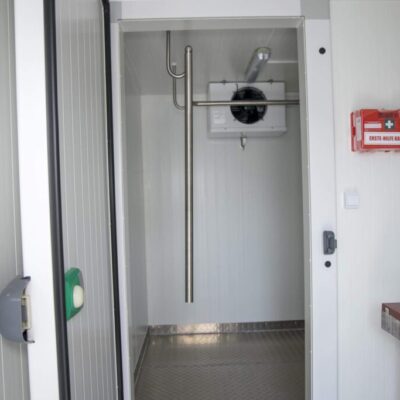

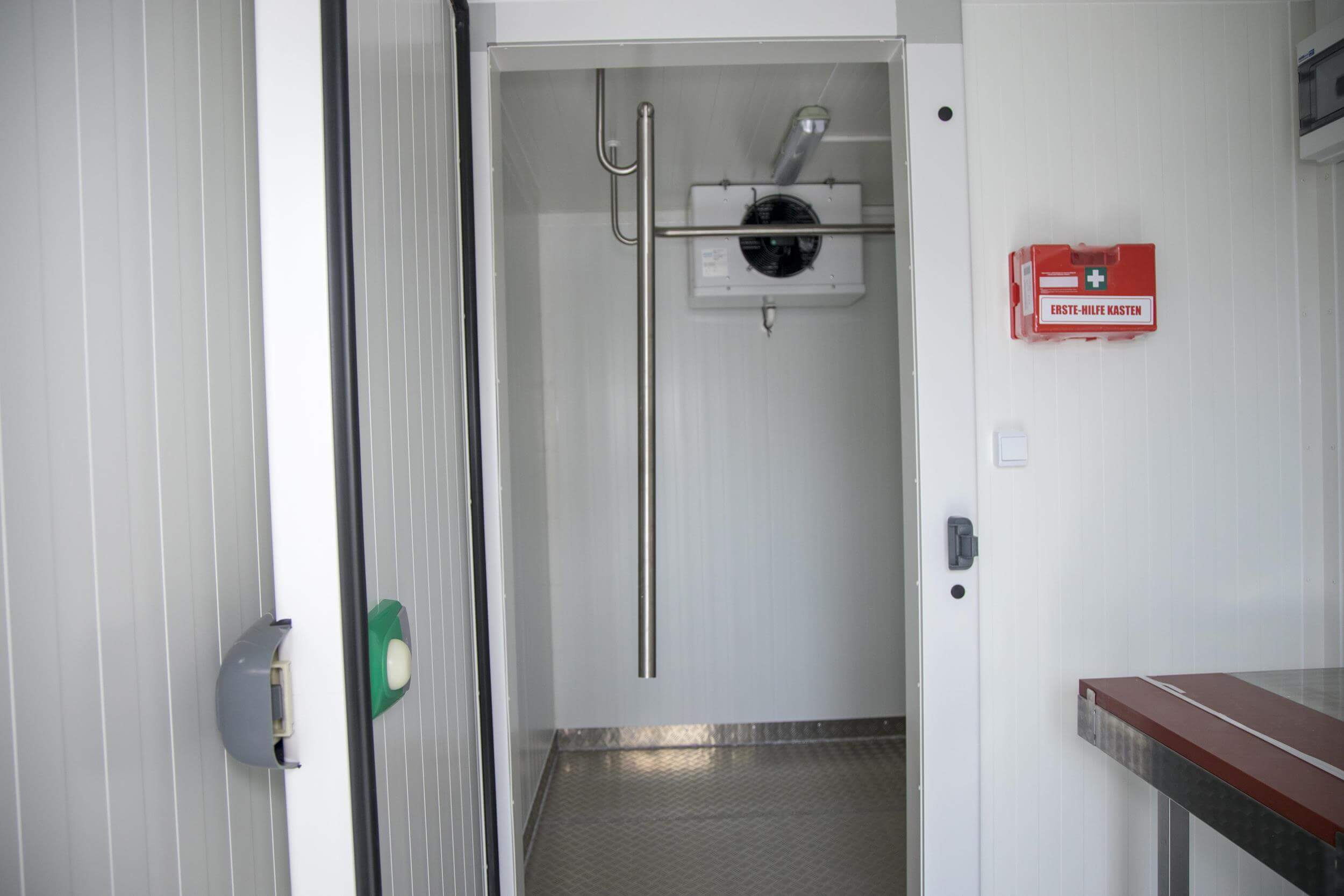

Cooling room – a dedicated area for cooling and storing game. Thanks to the high-quality Embraco Aspera cooling unit, 10 cm-thick walls, and special cooling doors, a minimum cooling temperature of up to -5°C can be set, regardless of the outdoor season.
This unit provides space for:
- 10 wild boars
- 7 deer
- 14 roe deer
Each model can be ordered in standard or mirrored-configuration versions. Detailed basic and additional equipment can be found on the website.

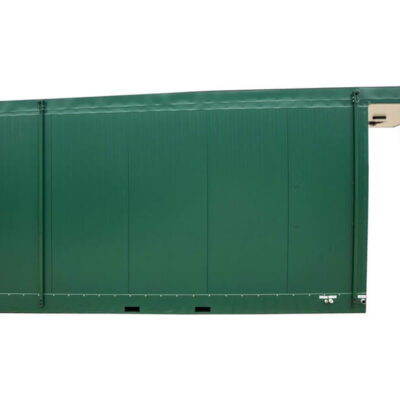

Exterior colour and flooring options:-
Green RAL 6005 or white RAL 9010
Smooth stainless steel flooring, R13 aluminium checker plate, or self-levelling polyurethane resin flooring.
Delivery: we deliver units to any location in the United Kingdom.
Equipment

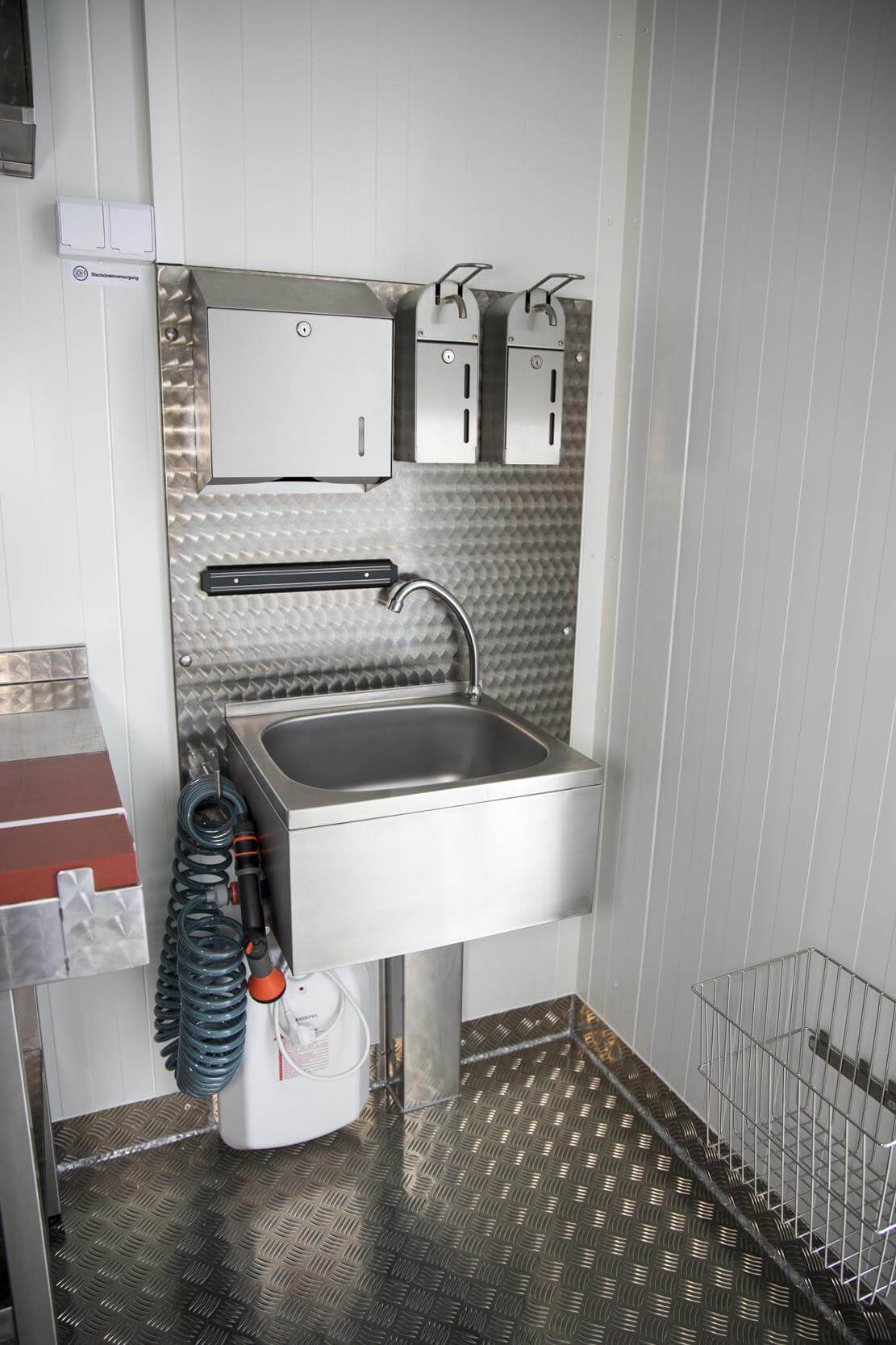

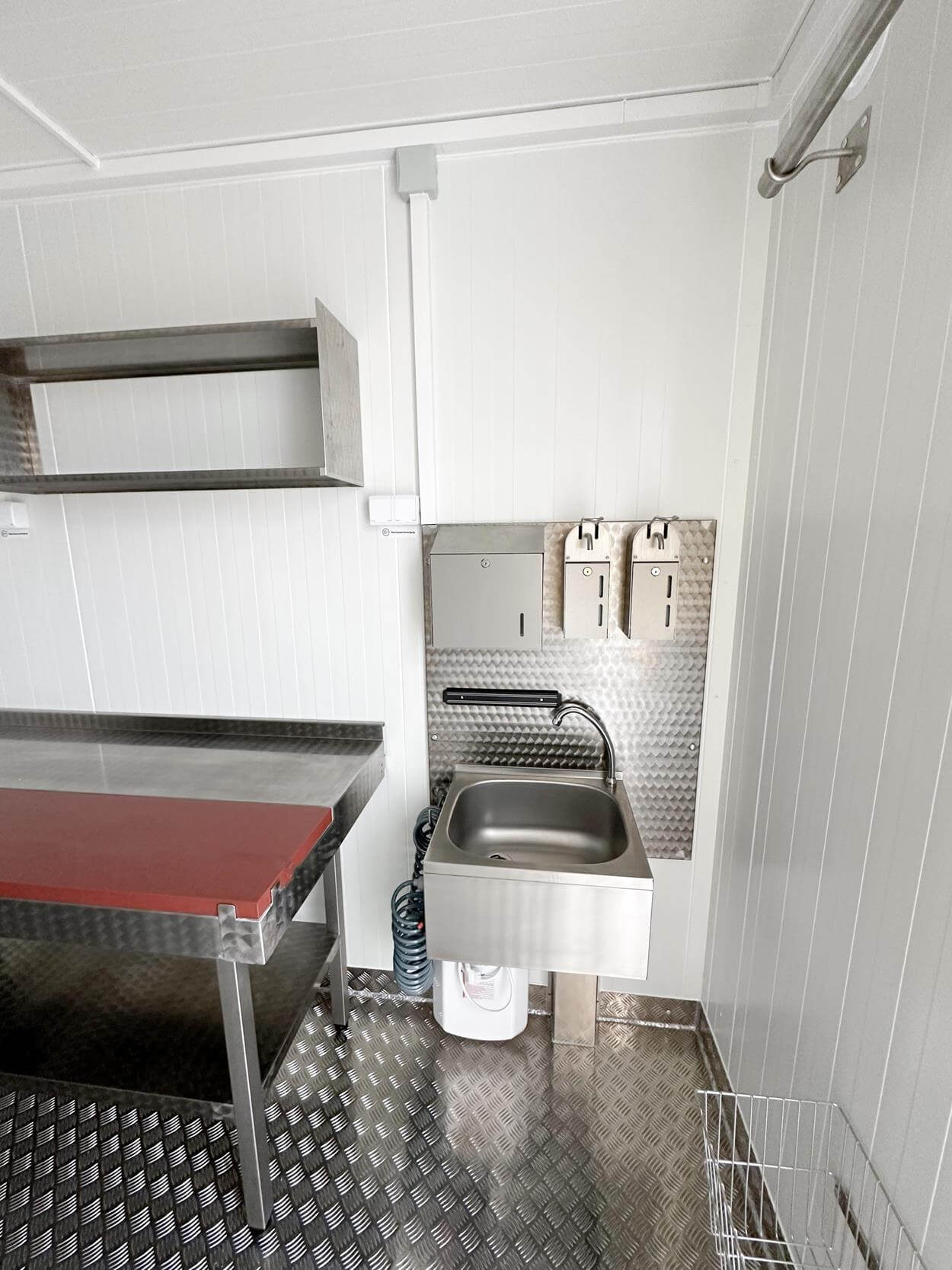

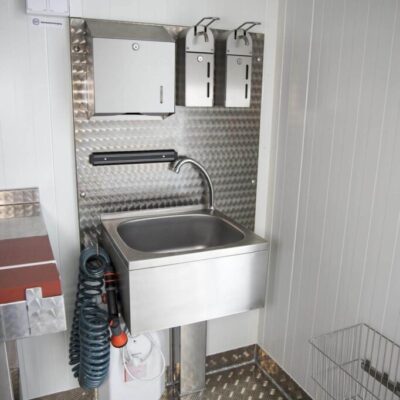

- Hygiene wall made of stainless steel
- Knee-operated sink
- 5-litre boiler (2000W) providing water up to 50°C
- Water hose, large back panel, paper towel dispenser
- Soap and disinfectant dispensers (1L each)
- Knife magnet
- Stainless steel processing table (1.5 m) with brown PE plastic surface and hook station
- Wall shelf, first-aid kit

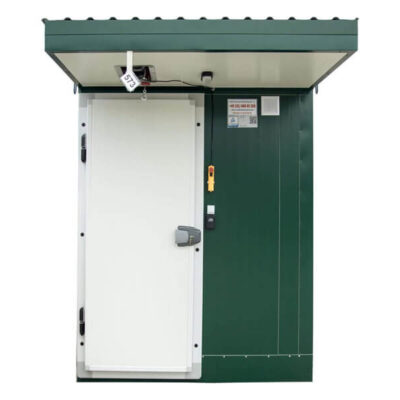

- Double roof – additional roof made of corrugated sheet metal

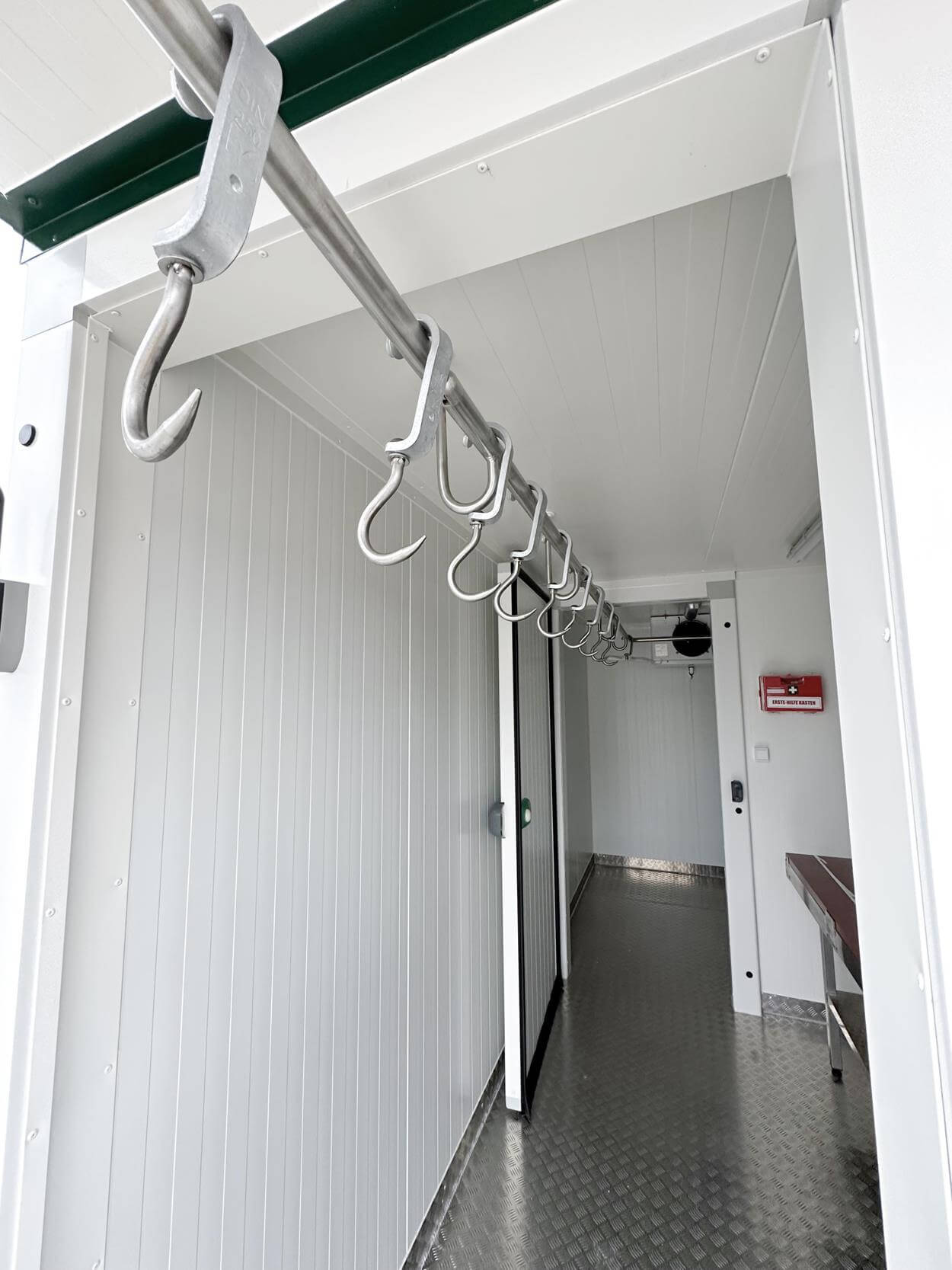

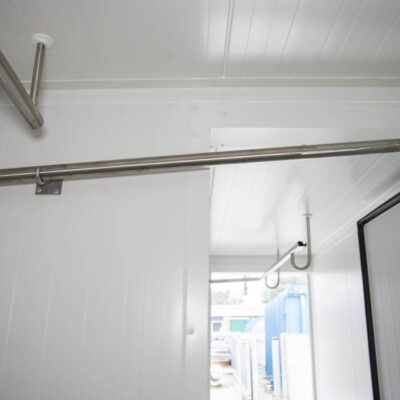

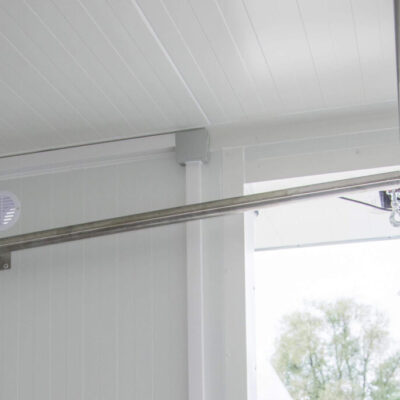

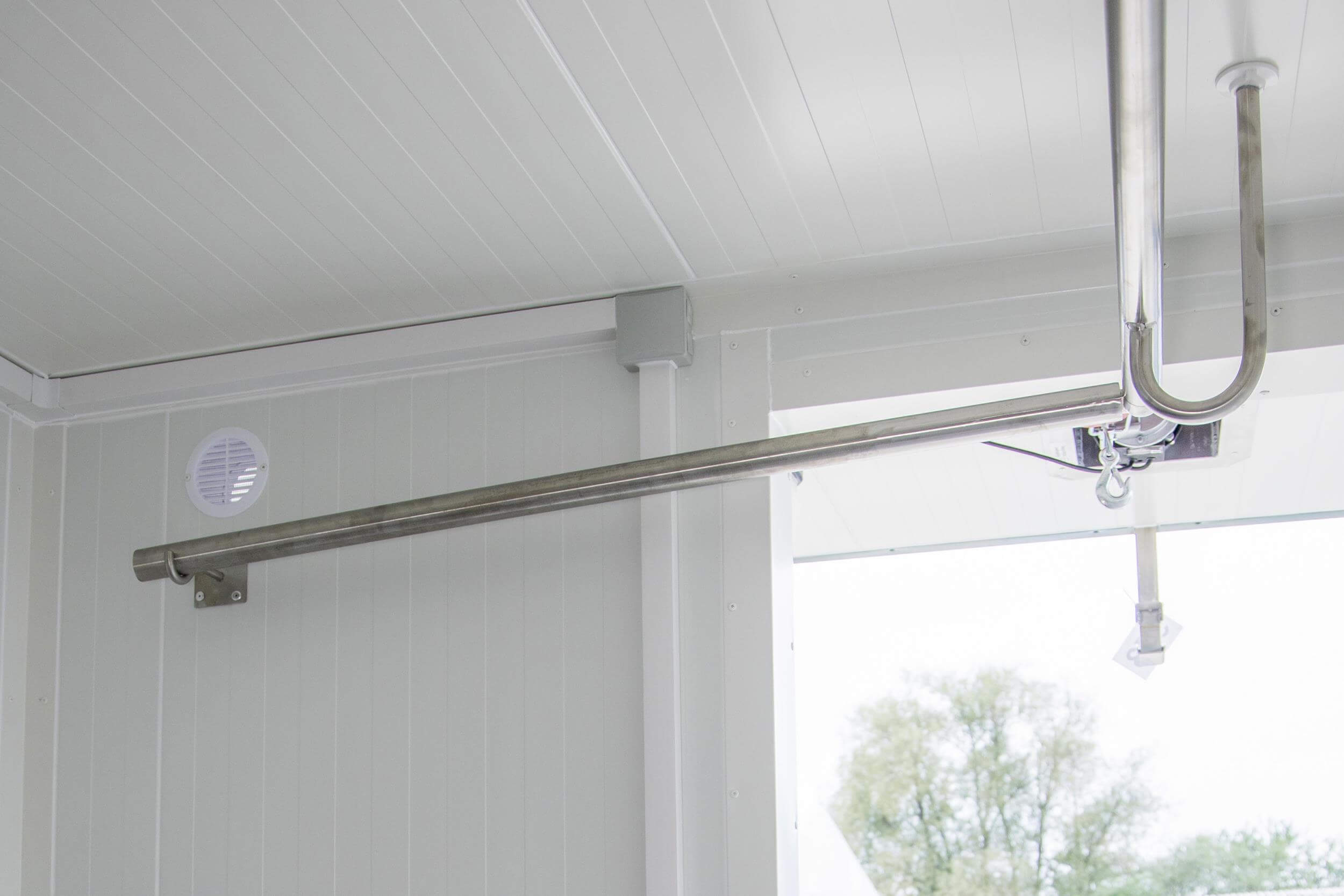

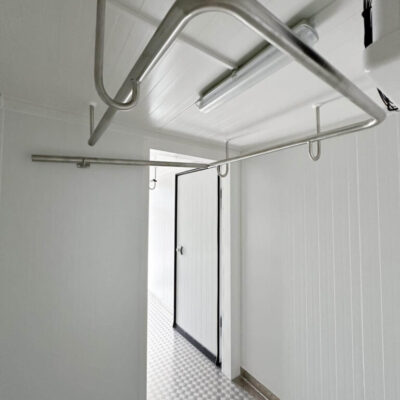

- Rail system made of acid-resistant steel for hanging hooks

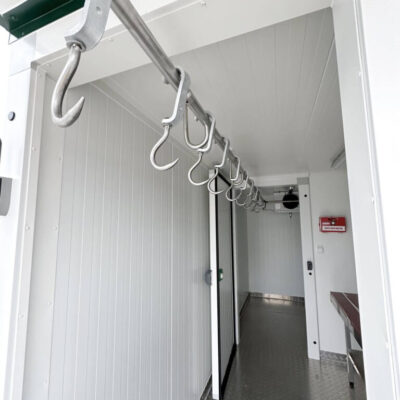

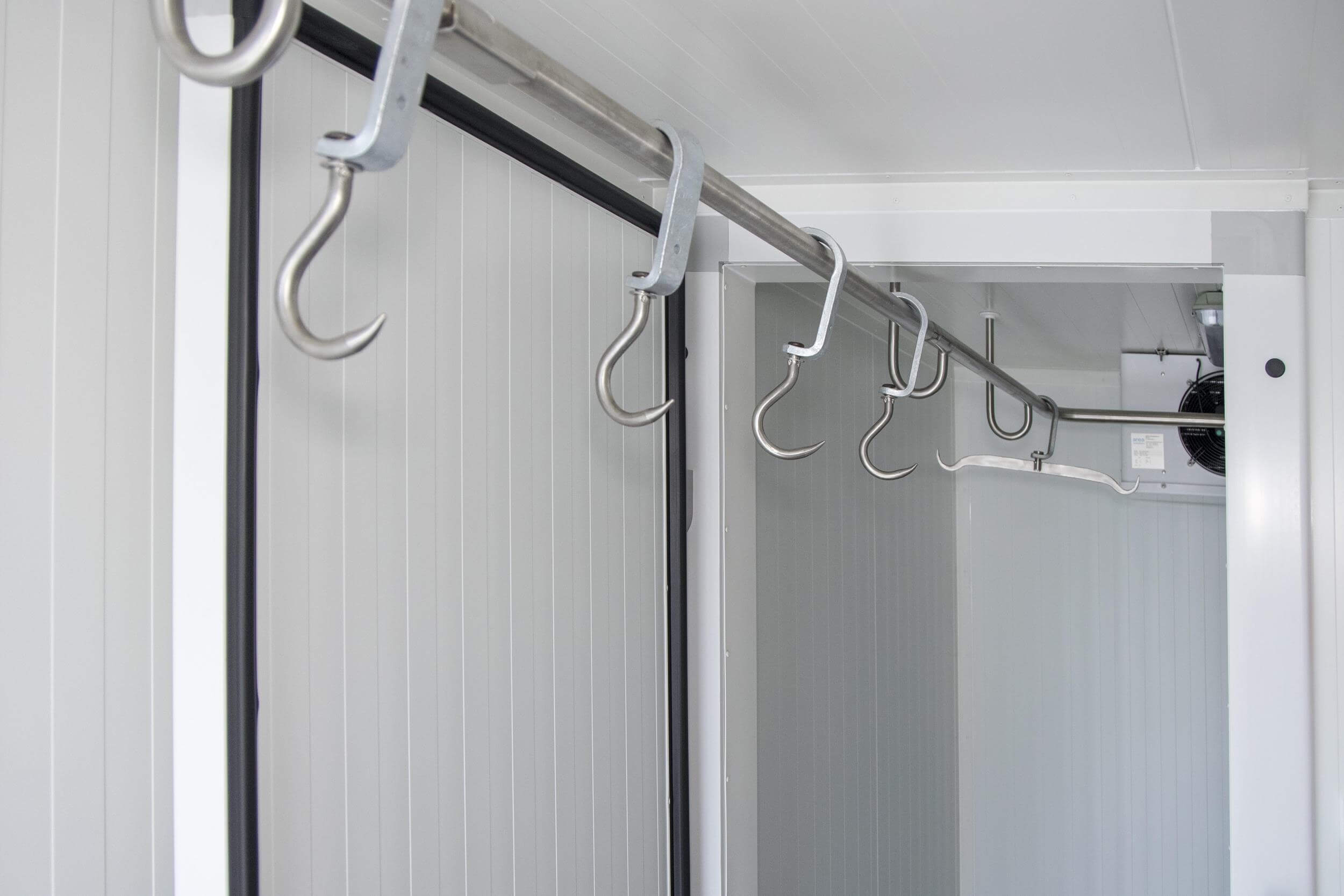

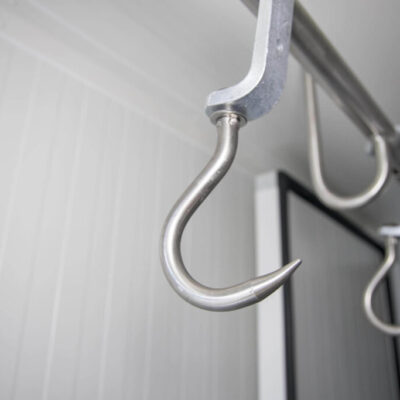

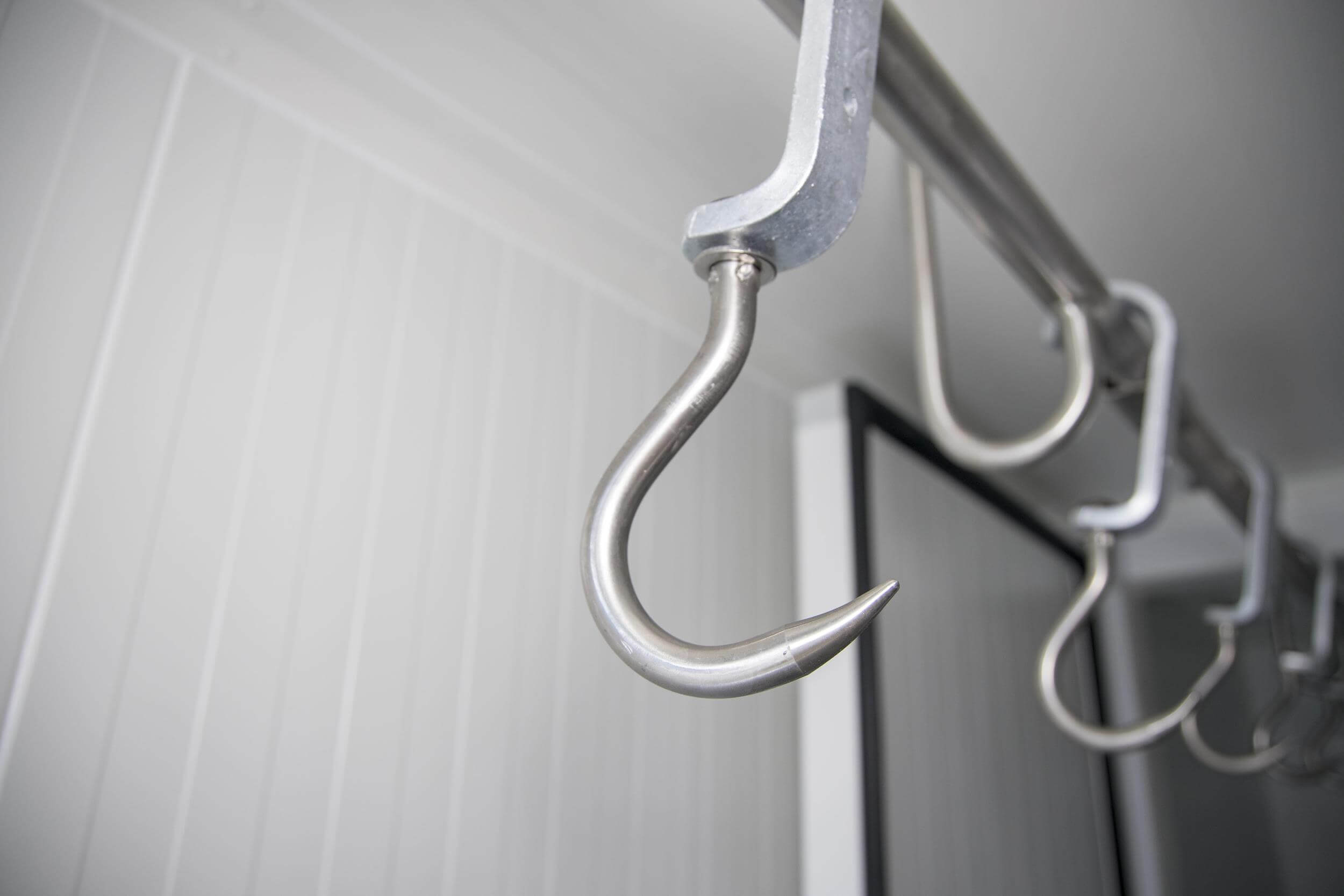

- Set of 10 hooks (Euro hooks with side hooks, DIN 5047)

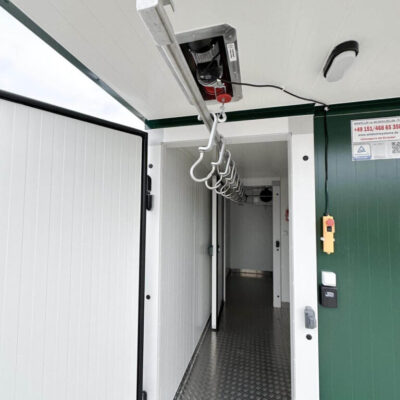

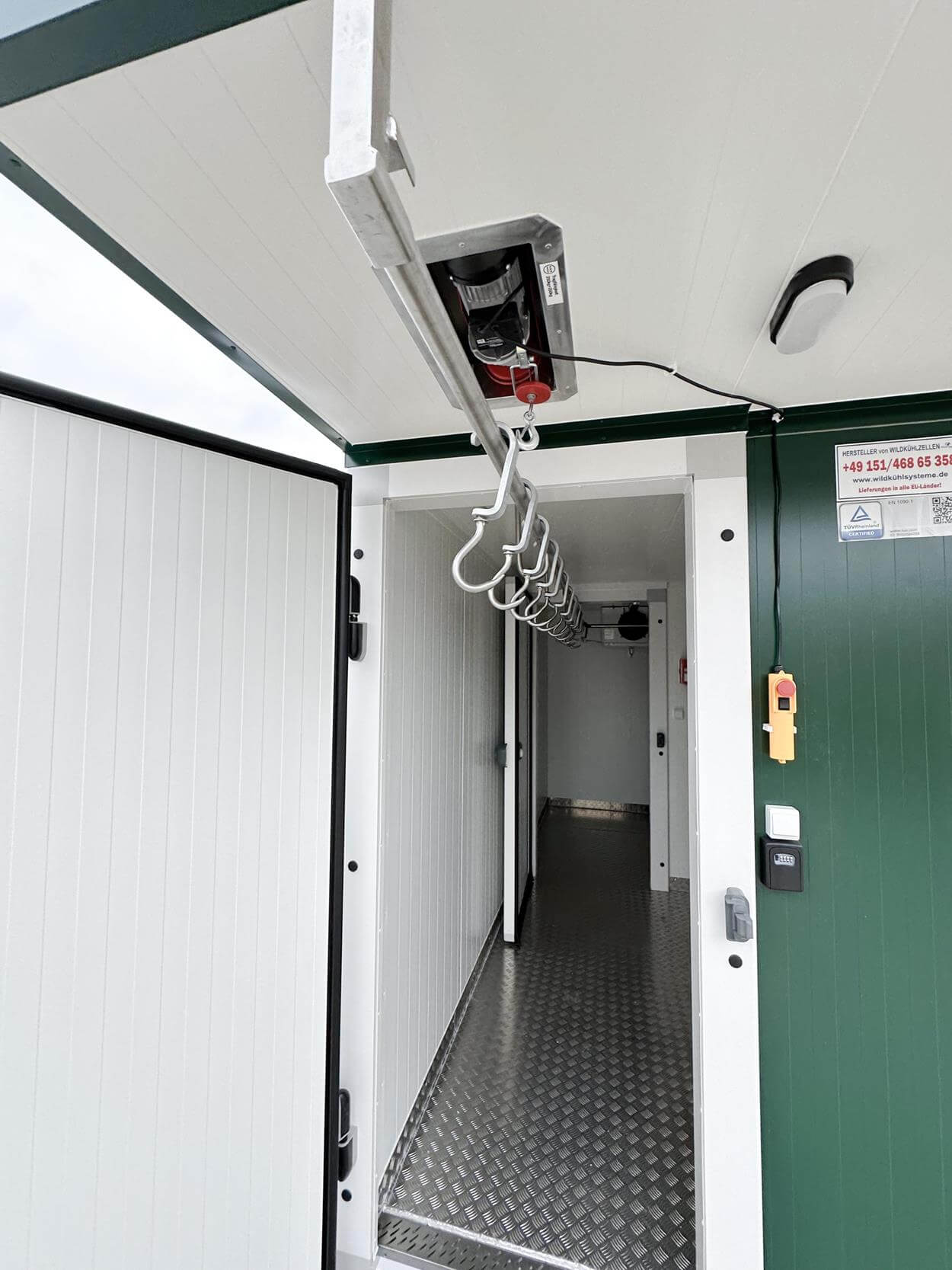

- Electric hoist with a load capacity of 300/600 kg above the entrance of the cooling container
- Embraco Aspera cooling unit
- Electronic temperature control (adjustable between +10°C to -5°C)
- IP65 fuse box, electric meter
- LED lighting for both internal and external areas
- 230V AC power supply
- Key set for both doors (2x)
- Hermetically sealed 230V IP65 sockets
- Main switch
- Key safe
- Spreader hook (1 piece)
- Stainless steel waste bin
- Insulated pipes in the interior
- Integrated forklift operating slots for easy transport
- Floor drain (⌀50)
- Water connection with 1/2-inch inlet (DN 15)
- Hygiene wall drain (⌀40)
- Power connection: 230V, 16A
- Certified structural integrity
- 2-year manufacturer warranty
We also produce cooling containers and cooling and processing containers according to individual specifications/requests.
Specification
Size | Length [L] | Width [S] | Height [H] |
External dimensions | 500 cm / 16,4ft | 220 cm / 7,2ft | 295 cm / 9,7ft |
Internal dimensions – processing room | 270 cm / 8,6ft | 200 cm / 6,6ft | 250 cm / 8,2ft |
Internal dimensions – cooling room | 200 cm / 6,6ft | 200 cm / 6,6ft | 250 cm / 8,2ft |
Rail height: | 228 cm / 7,5ft | ||
Total length with front and rear roof: | 670 cm / 22ft | ||
Weight: | approx. 1600-1700 kg (depending on selected equipment) |
