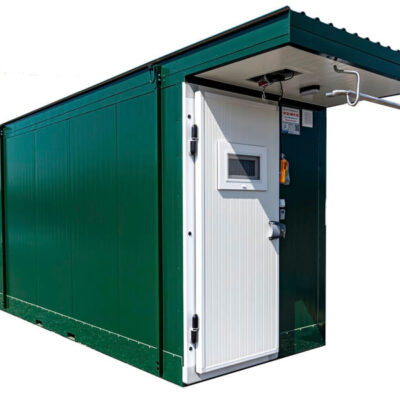

Many of our customers prefer larger containers than those offered in our 4-metre models. The ideal choice for this is the 5×2 processing container. This 5×2 unit features a processing room measuring 270 x 180 cm and a 200 x 180 cm cooling room.

Our containers are made from 100 mm-thick polyurethane foam layered panels, covered on both sides with a metal sheet (new XPS technology, no corrosion, long-lasting, easy to clean, easy to move, no visible installation, no silicone, superb isolation).

Thanks to the special construction, all units are resistant and weatherproof. The steel frame is galvanised and powder-coated, ensuring excellent corrosion protection and longevity. At the same time, the containers are lightweight and mobile.

The integrated forklift operating slots in the steel frame can be used for unloading or moving with a forklift, or the container can be easily moved with a crane using the lifting hooks.

Our container units set new standards for processing and storing wild game.

Each processing container consists of two separate spaces:

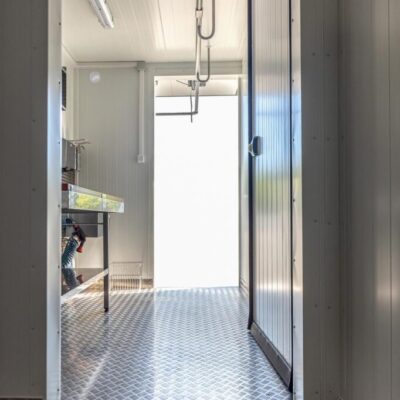

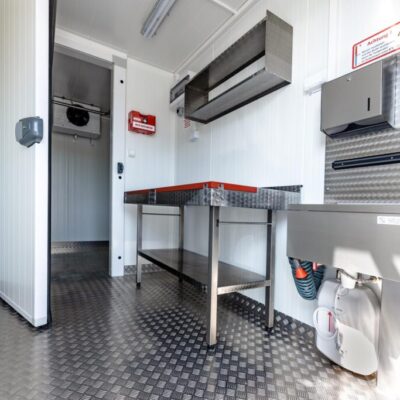

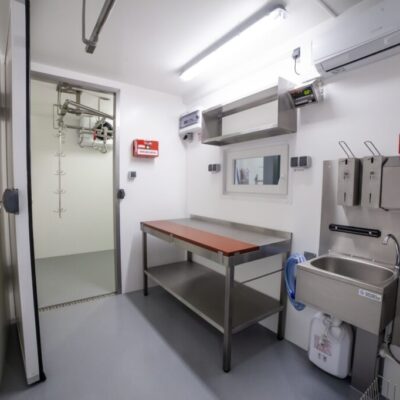

Processing room – a space for processing wild game.

Standard equipment includes:

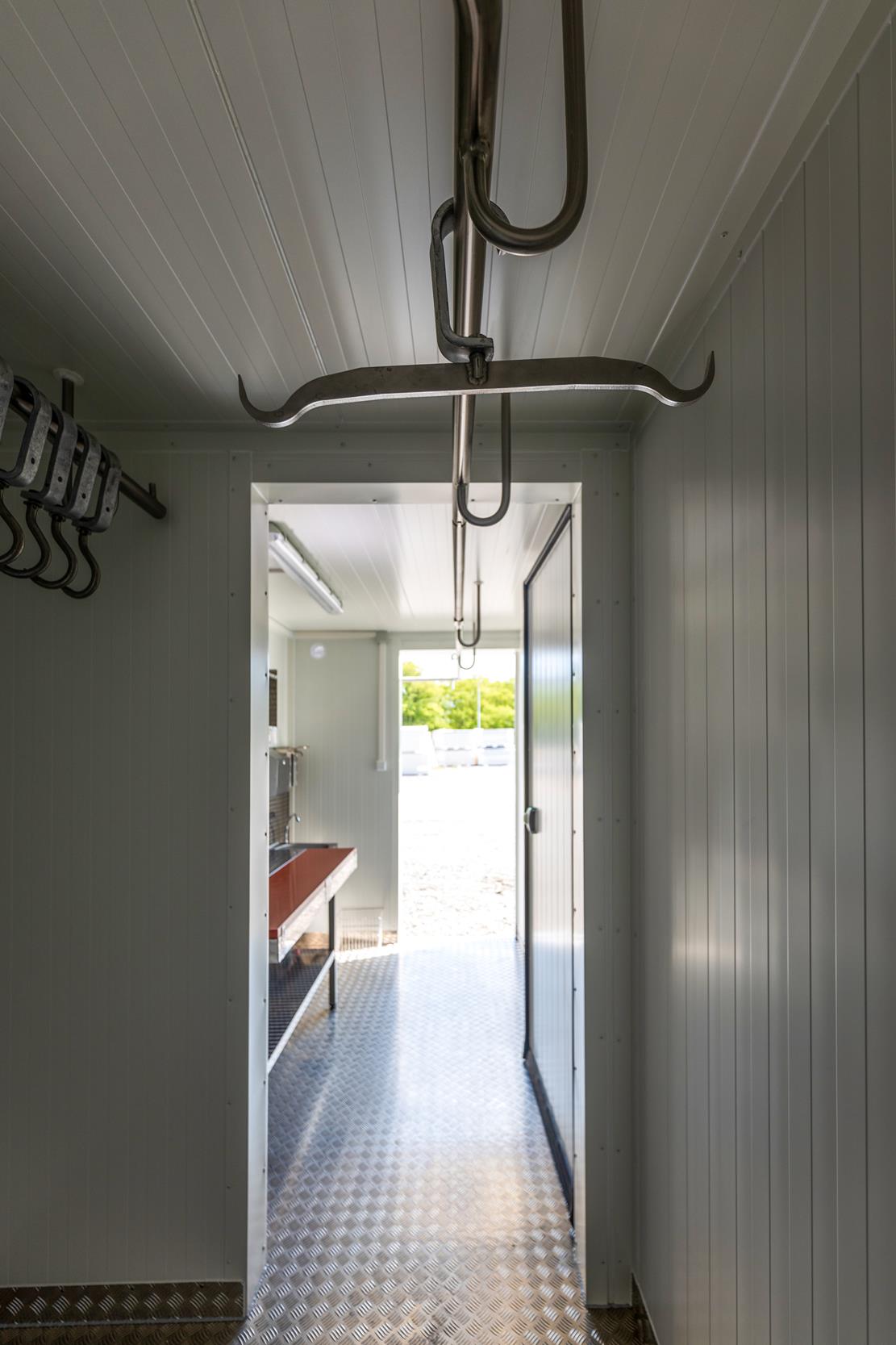

A stainless steel rail system with Euro hooks (10 pieces)
Hygiene wall
5-litre boiler (2000W)
Water hose
Knife magnet

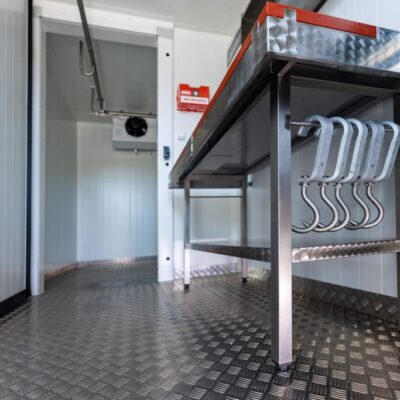

1.5-metre cutting table with hook station
Wall shelf
First-aid kit
Stainless steel waste bin
Spreader hook (1 piece)

Cooling room – a space for cooling and storing wild game. Thanks to the premium Embraco Aspera cooling unit, 10 cm-thick walls, and special cooling doors, a minimum cooling temperature of up to -5°C can be set (regardless of the outdoor temperature).

The 5×2 cooling room offers space for:

10 wild boars
7 deer
14 roe deer

Each model can be ordered in standard or mirrored-configuration versions. Detailed basic and additional equipment can be found on the website.

Exterior colour and flooring options:-

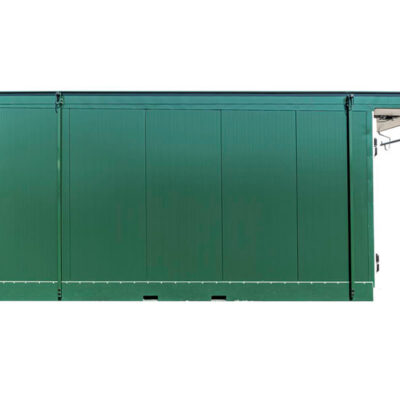

Green RAL 6005 or white RAL 9010

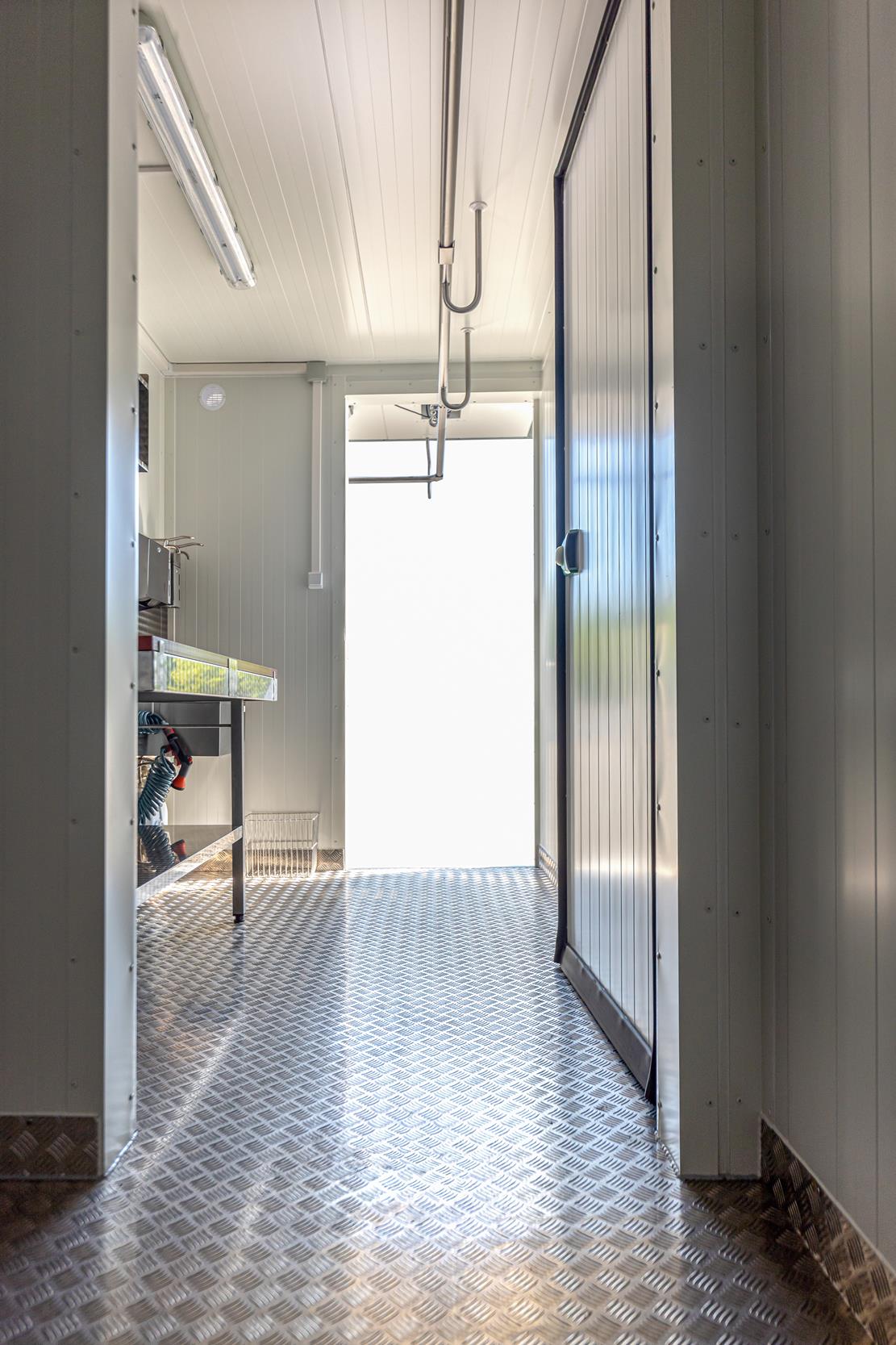

Smooth stainless steel flooring, R13 aluminium checker plate, or self-leveling polyurethane resin flooring.

Delivery: we deliver our units to any location in the United Kingdom.

Equipment

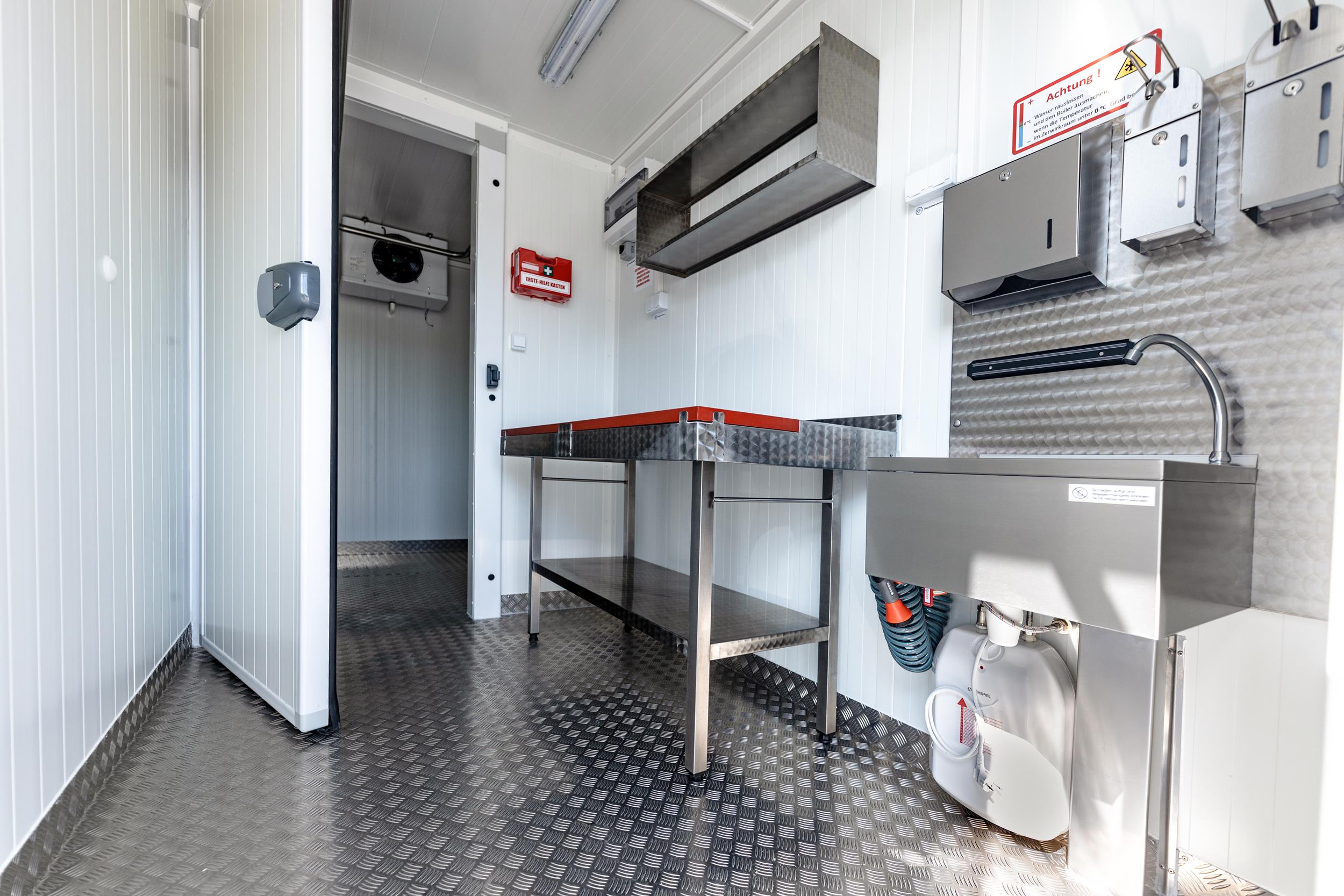

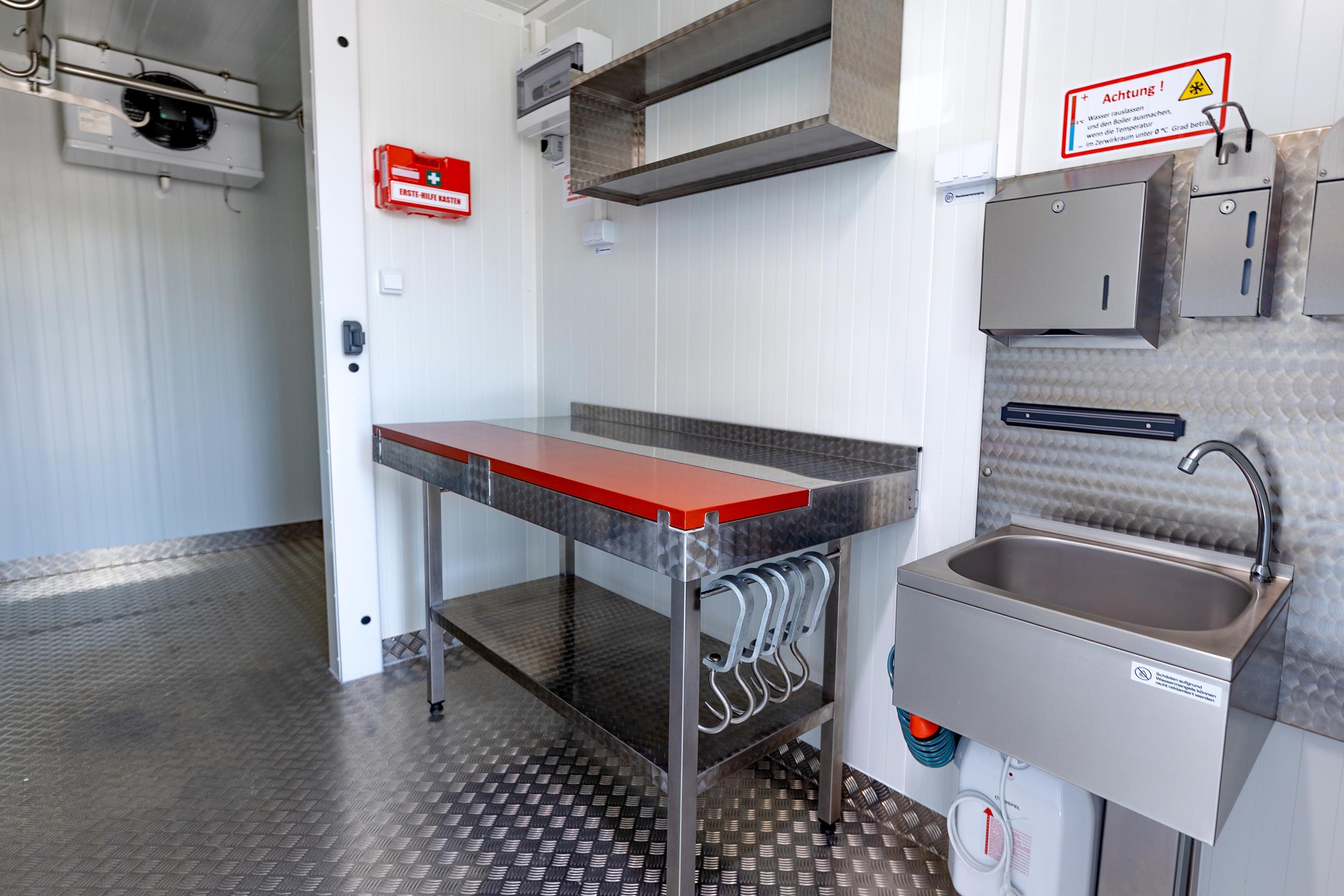

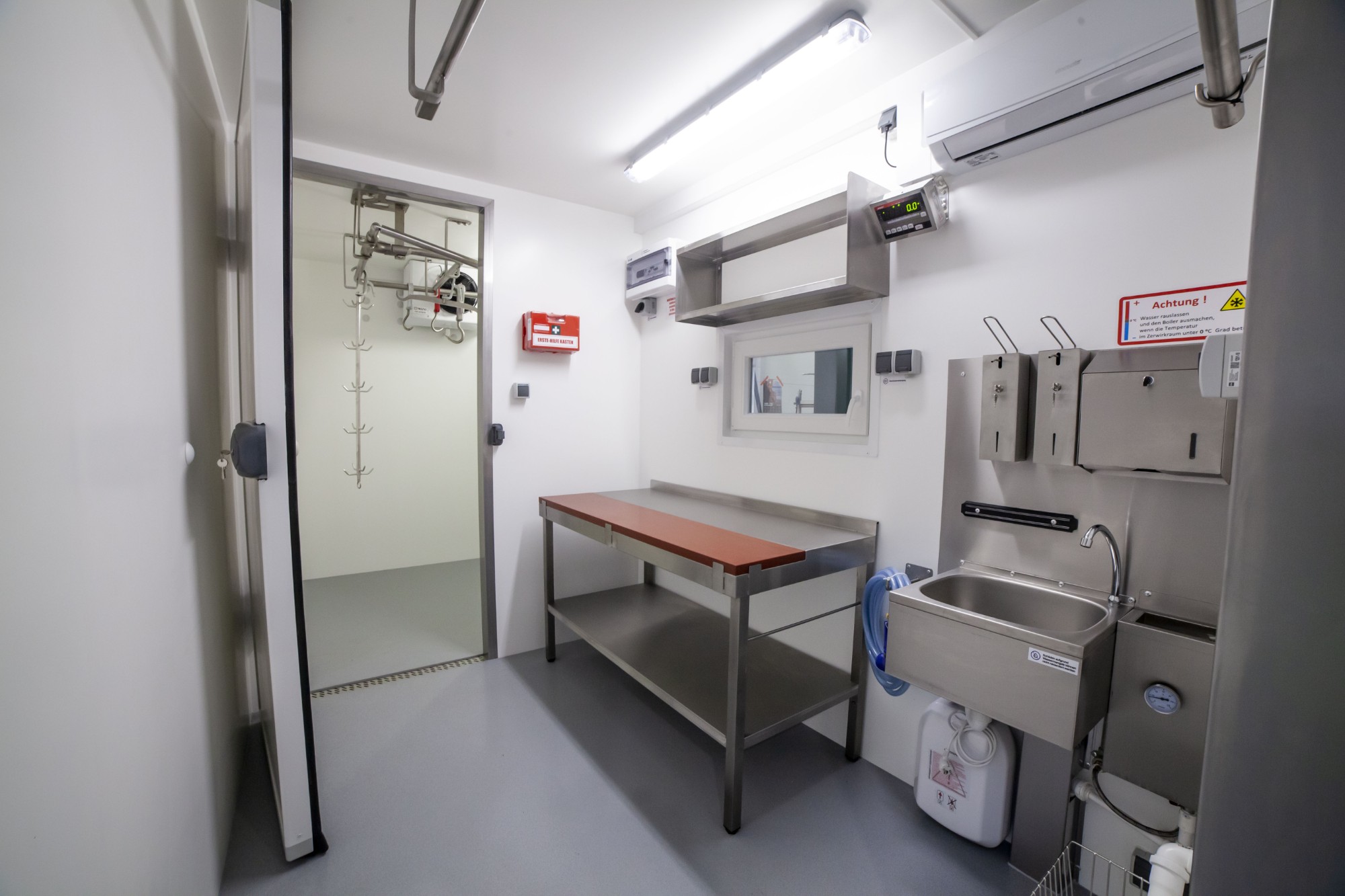

Hygiene wall made of stainless steel, featuring:
Knee operated sink
5-litre boiler (2000W) providing warm water up to 50°C
Water hose
Large rear wall
Paper towel dispenser
Soap and disinfectant dispensers (each 1L)
Knife magnet

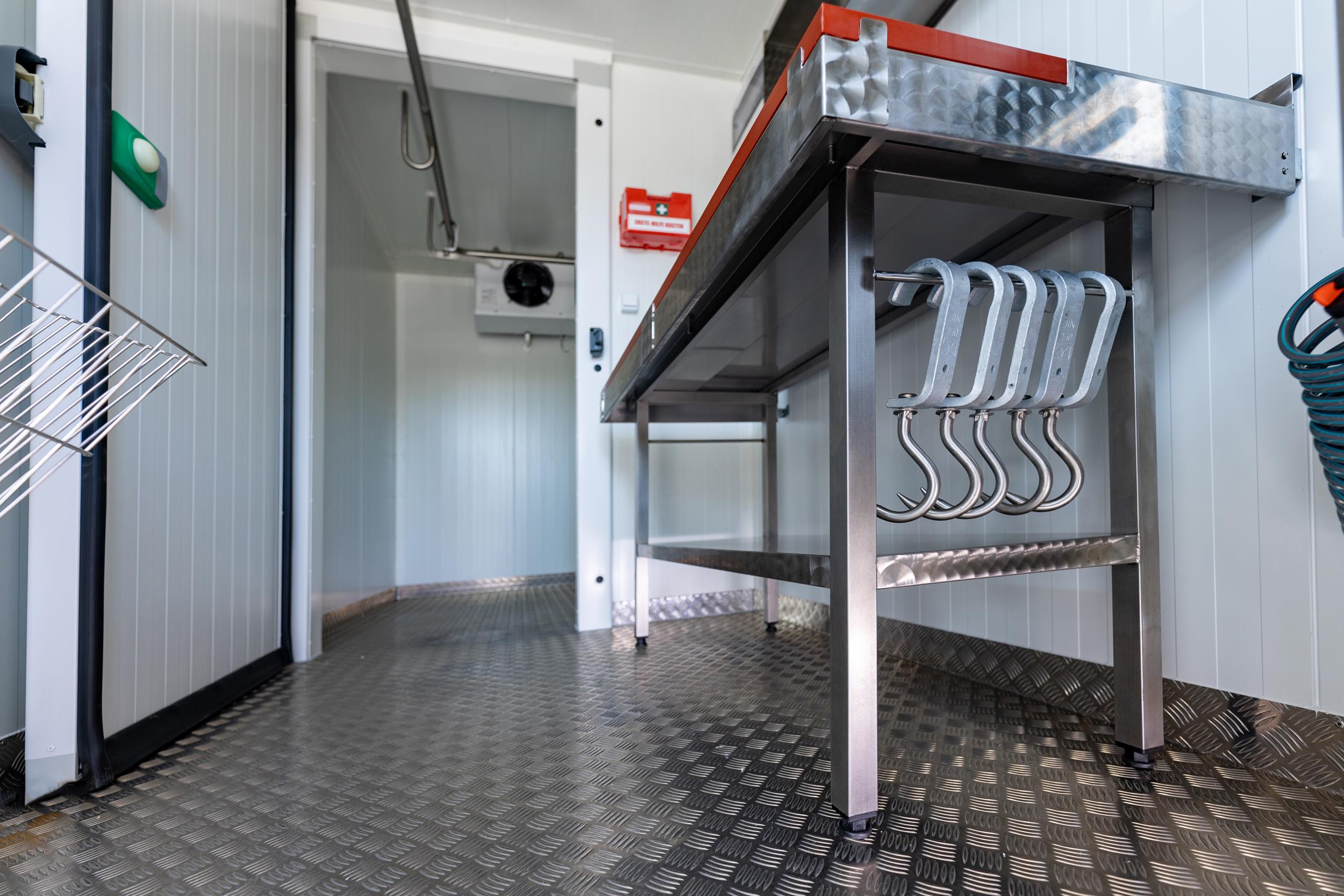

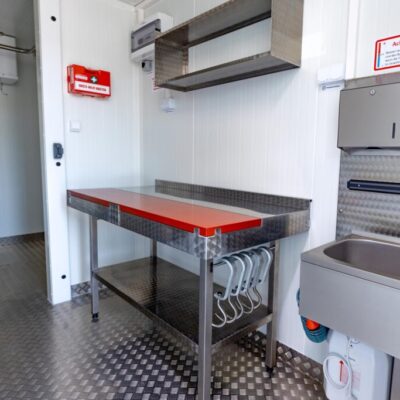

Cutting table (stainless steel) 1.5m with brown PE plastic and hook station
Wall shelf, first-aid kit.

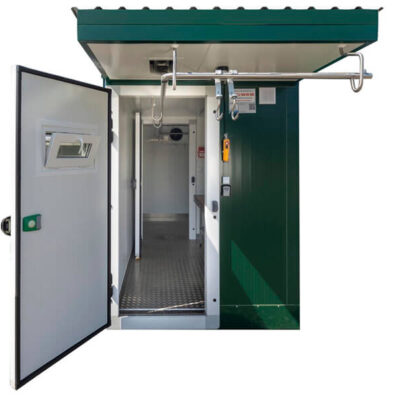

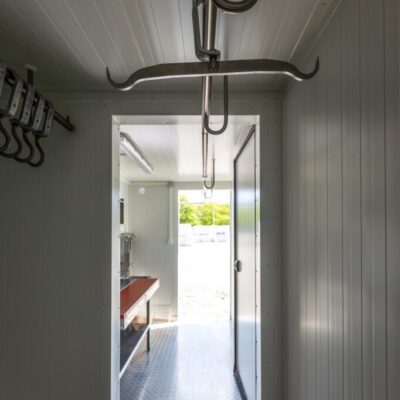

Double roof – additional roof made of corrugated sheet metal.Stainless steel rail system for hanging hooks.

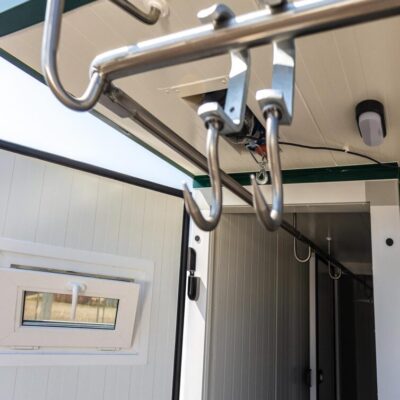

Set of 10 hooks (Euro hooks with side hooks according to DIN 5047).

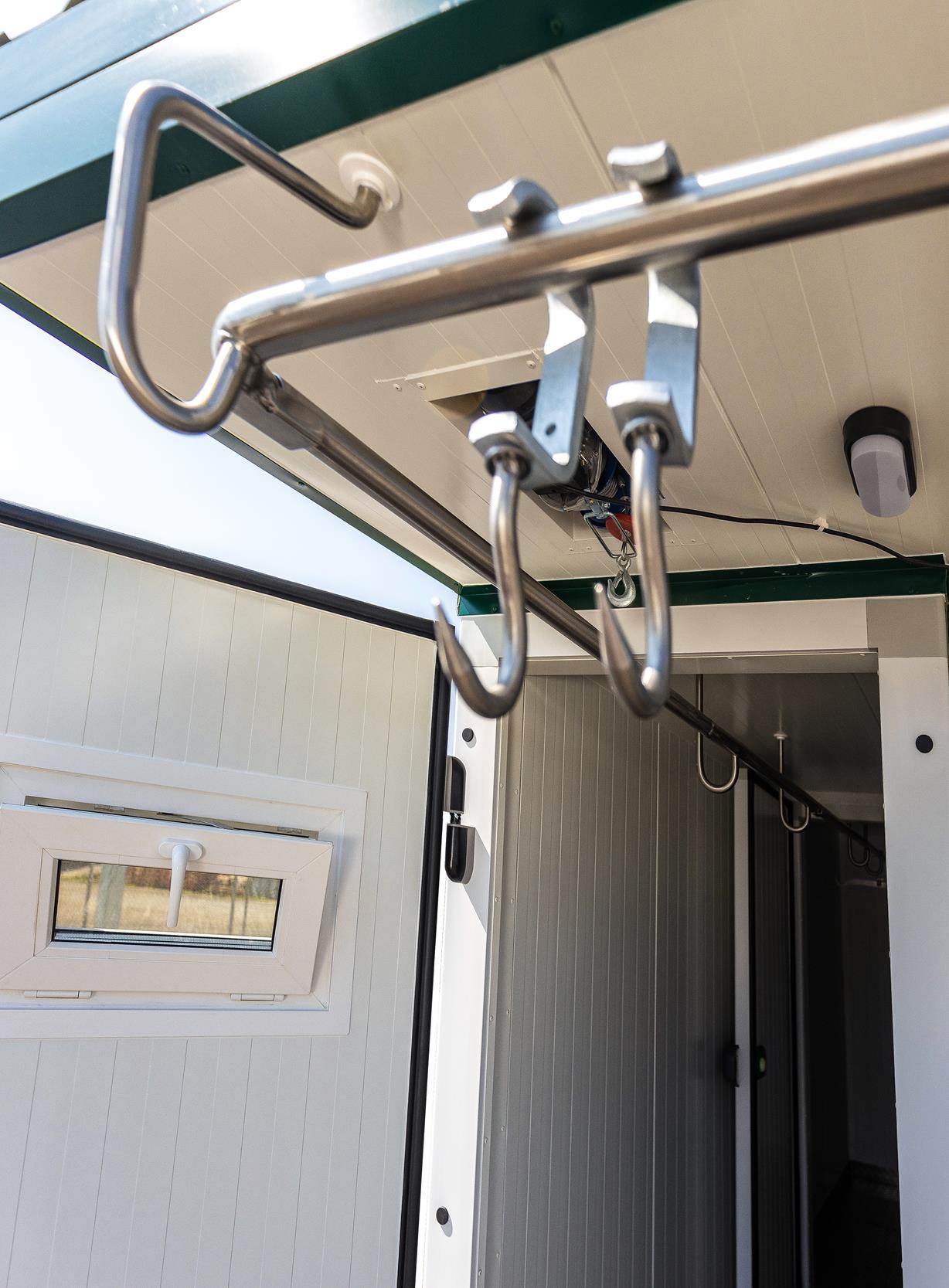

Electric winch with a load capacity of 300/600 kg above the entrance to the cooling container.

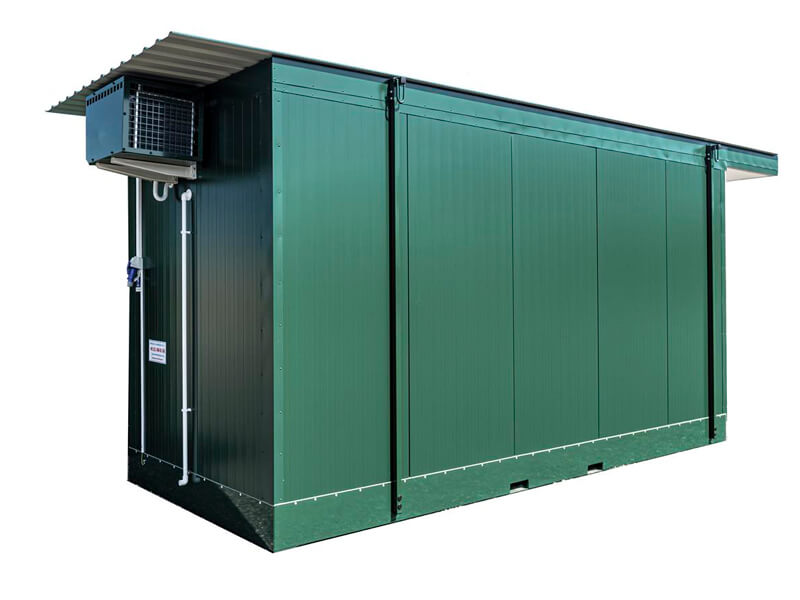

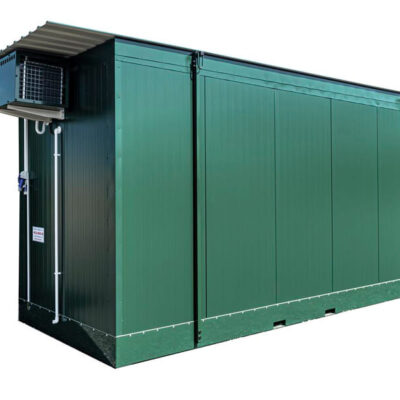

Embraco Aspera cooling unit.
Electronic control to set the temperature from +10°C to -5°C.
Fuse box IP65, electric meter.
LED lighting for both external and internal areas.
230V-AC power.
Key set for both doors (2x).
Hermetic sockets 230V IP65.
Main switch.
Spreader hook (1 piece).
Stainless steel waste bin.
Insulated pipes inside.
Key safe.
Integrated forklift operating slots
Floor drain, ⌀50.
Water connection with 1/2-inch inlet (DN 15).
Hygiene wall drainage, ⌀40.
Power connection, 230V 16A.
Tested structural integrity.
2-year manufacturer’s warranty.

We also produce cooling containers and cooling and processing containers according to individual specifications/requests.

Specification

Size	Length [L]	Width [S]	Height [H]

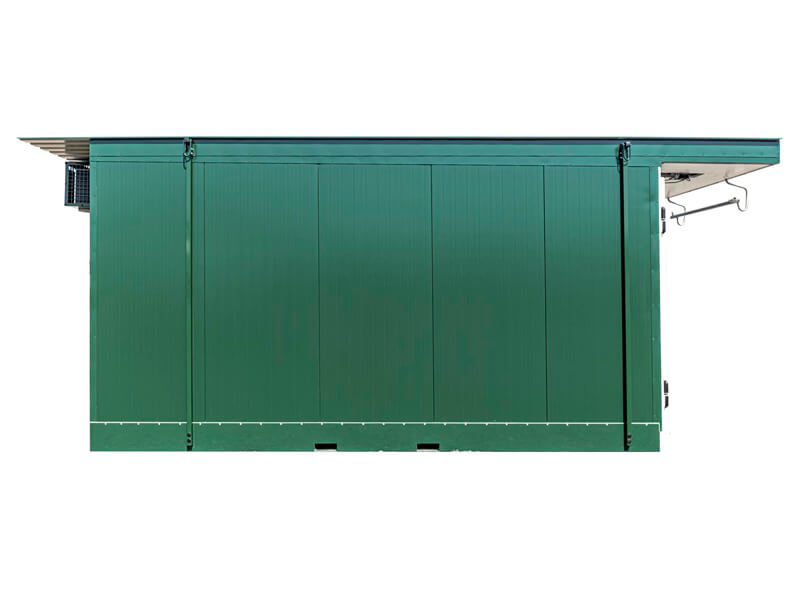

External dimensions	500 cm / 16,4ft	200 cm / 6,6ft	295 cm / 9,7ft
Internal dimensions – processing room	270 cm / 8,9ft	180 cm / 5,9ft	250 cm / 8,2ft
Internal dimensions – cooling room	200 cm / 6,6ft	180 cm / 5,9ft	250 cm / 8,2ft
Rail height:	228 cm / 7,5ft
Total length with front and rear roof:	670 cm / 22ft
Weight:	approx. 1500-1600 kg (depending on selected equipment)
