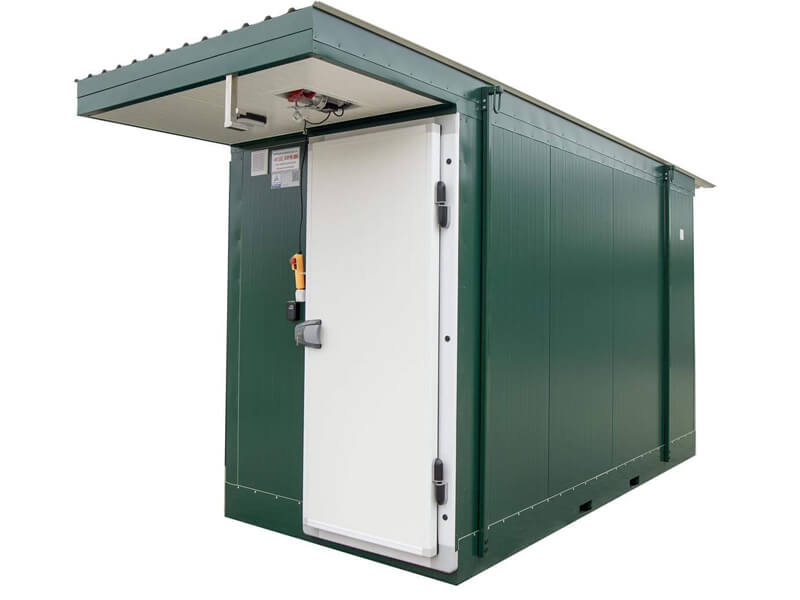

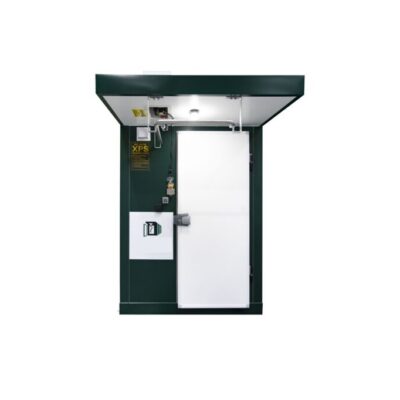

We are pleased to present our 4×2 m processing container.

The 4×2 processing container with a cooling room is the best solution if you’re looking for a new way to process, cool, and store wild game meat.

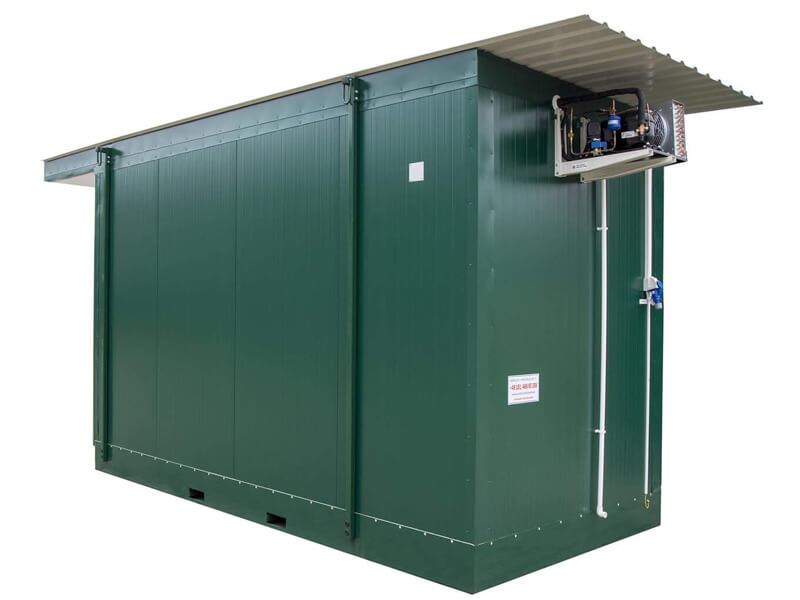

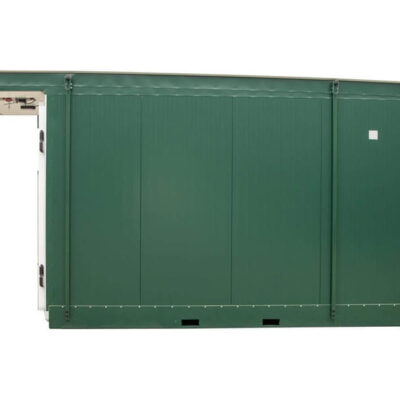

Our containers are made from 100 mm-thick polyurethane foam layered panels, covered on both sides with a metal sheet.

Thanks to the special design, all of our products are durable and weather-resistant. The steel frame is galvanised and powder-coated, ensuring excellent corrosion protection and longevity. At the same time, the containers are lightweight and mobile.

The integrated forklift operating slots in the steel frame can be used for unloading or relocating with a forklift, or the container can be easily moved with a crane using the lifting hooks.

Our container units set new standards for processing and cooling game meat.

Each unit consists of two separate rooms:

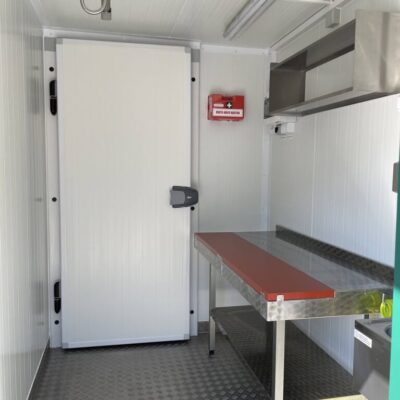

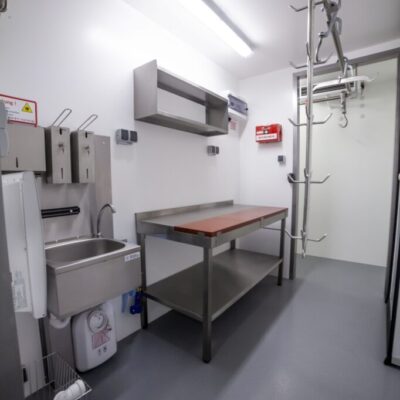

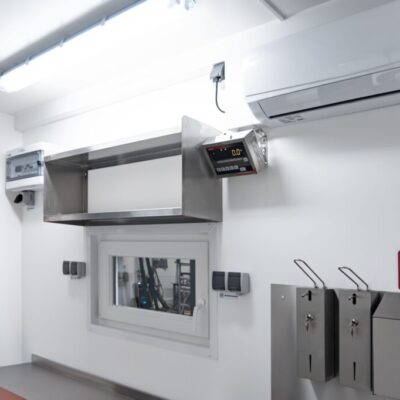

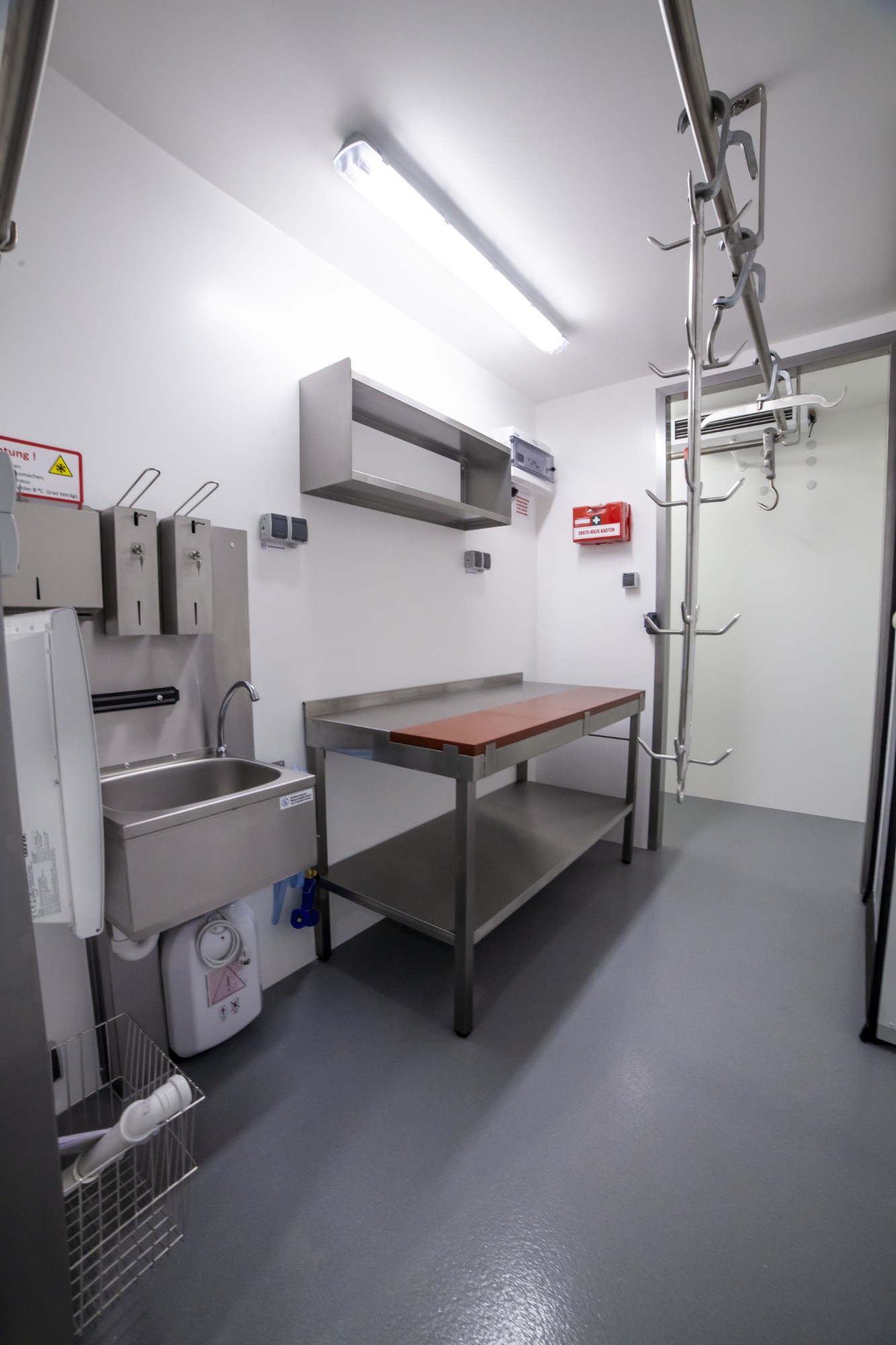

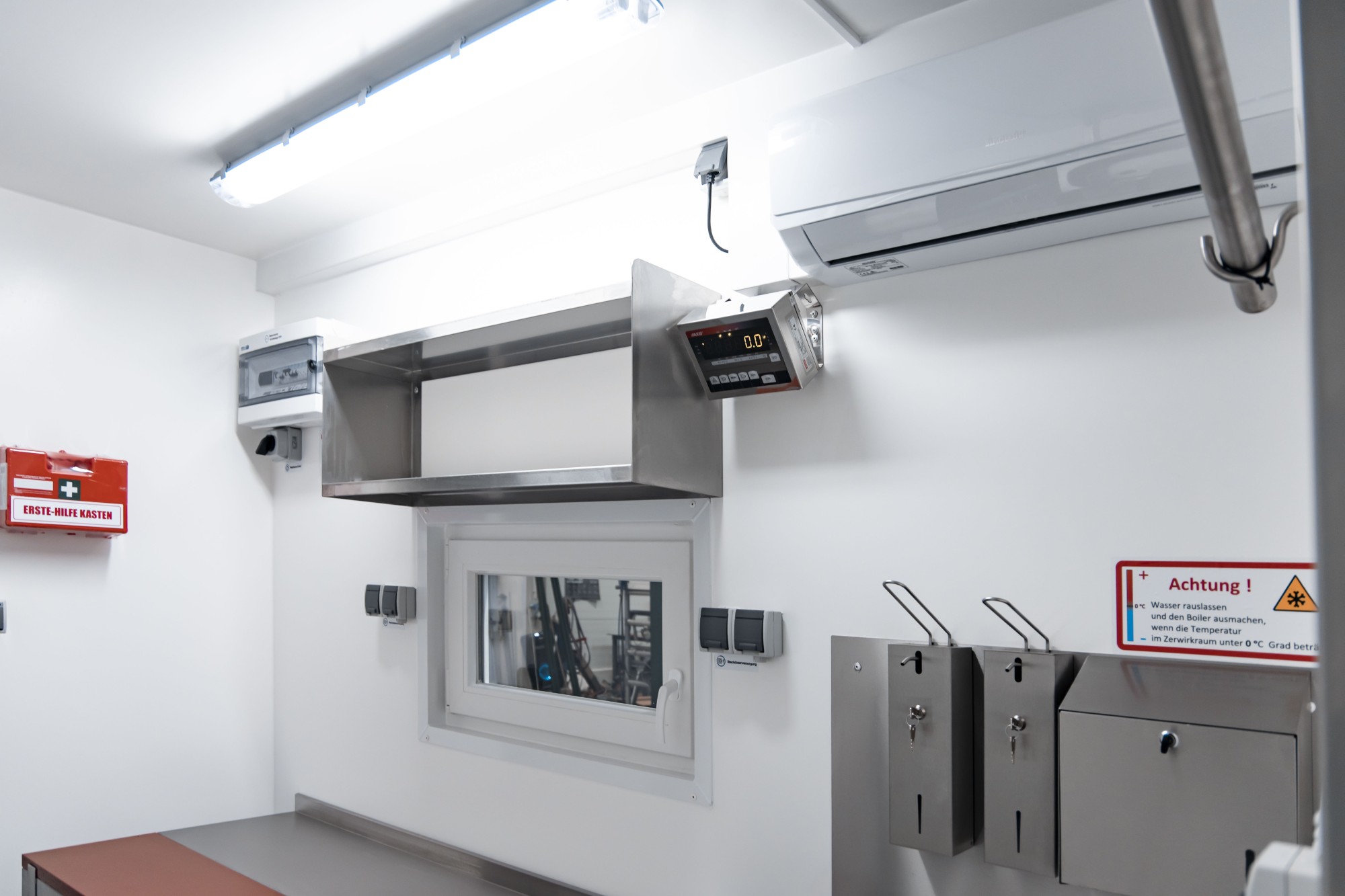

Processing room – a place for processing wild game. Equipped as standard with a rail system (made of acid-resistant stainless steel) with Euro hooks (5 pieces), a hygiene wall, 5-litre boiler (2000W), water hose, knife magnet, a 1.5 m dressing table with hook station, wall shelf, first-aid kit, stainless steel waste bucket and spreading hooks (1 piece).

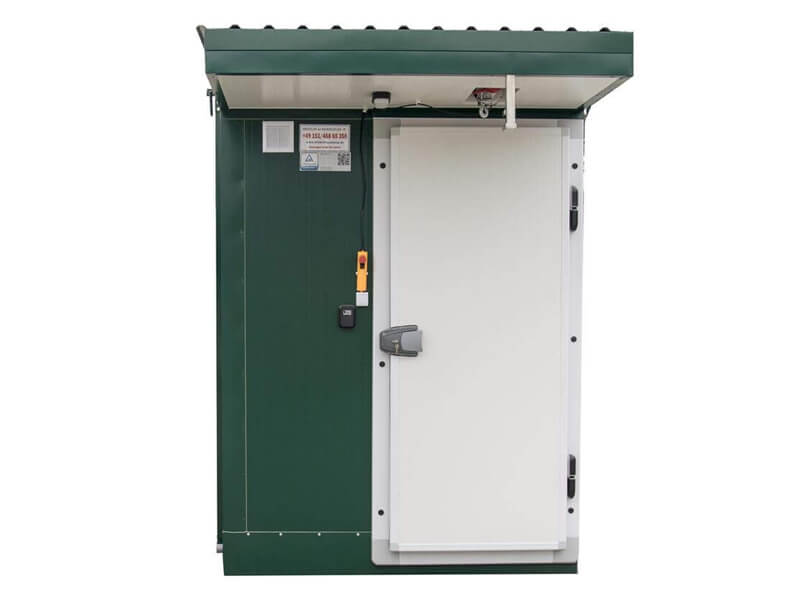

Cooling room – a place for cooling and storing wild game. Due to the high-quality Embraco Aspera cooling unit, 10 cm-thick walls, and special cooling doors, a minimum cooling temperature of up to -5°C can be set (regardless of the outdoor season).

The cooling room in the 4×2 unit has enough space for 5 wild boars, 4 deer, or 7 roe deer.

Each model can be ordered in standard or mirrored-configuration versions. Detailed basic and additional equipment can be found on the website.

Equipment

Electrical connection 230V 16A

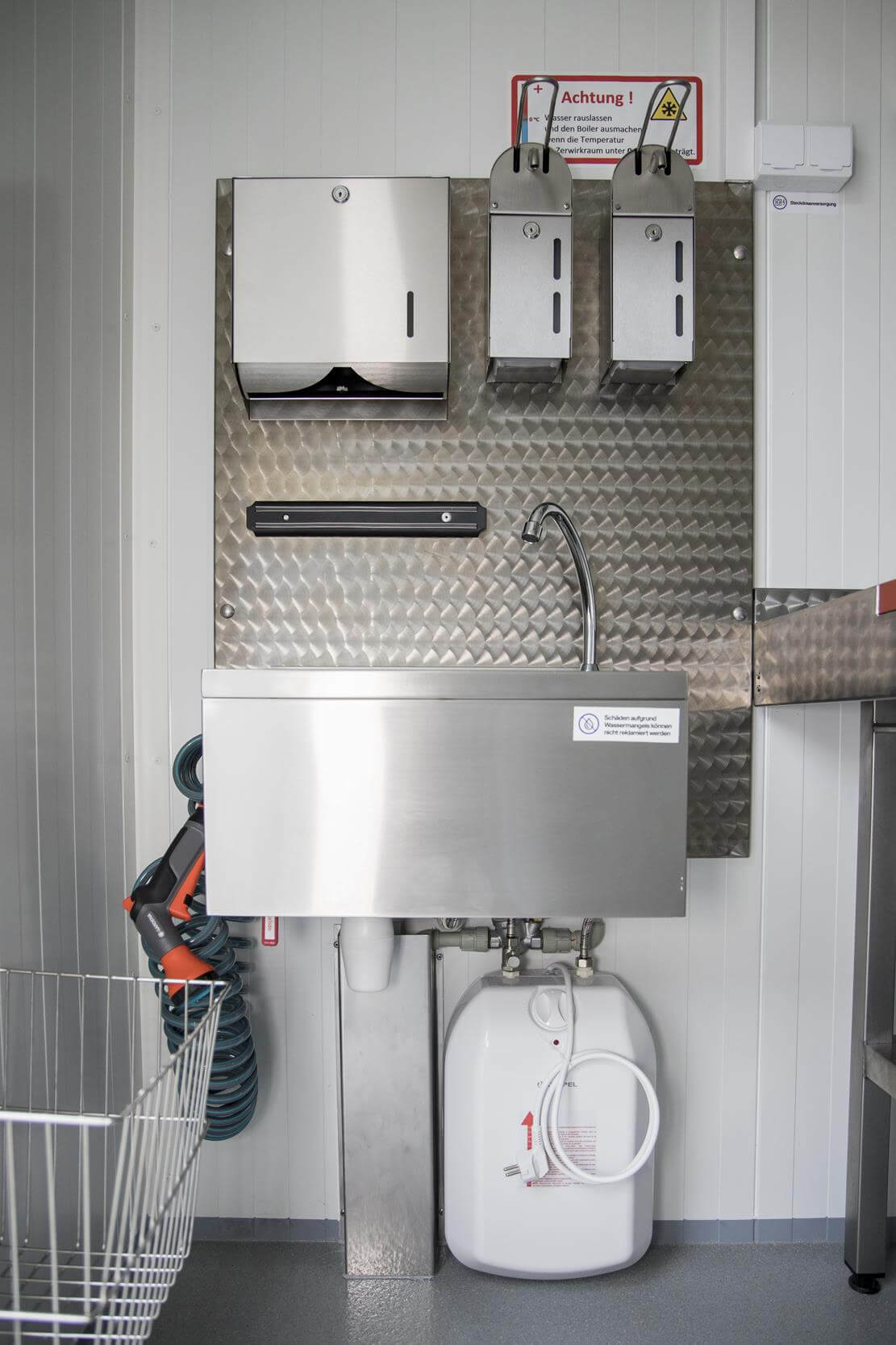

Hygiene wall made of stainless steel
Knee-operated sink
5-litre boiler (2000W) providing water up to 50°C
Water hose, large rear wall, paper towel dispenser
Soap and disinfectant dispensers (1L each)
Knife magnet
Dressing table (stainless steel), 1.5 m with brown PE plastic and hook station
Wall shelf, first-aid kit
Double roof – additional roof made of corrugated sheet metal

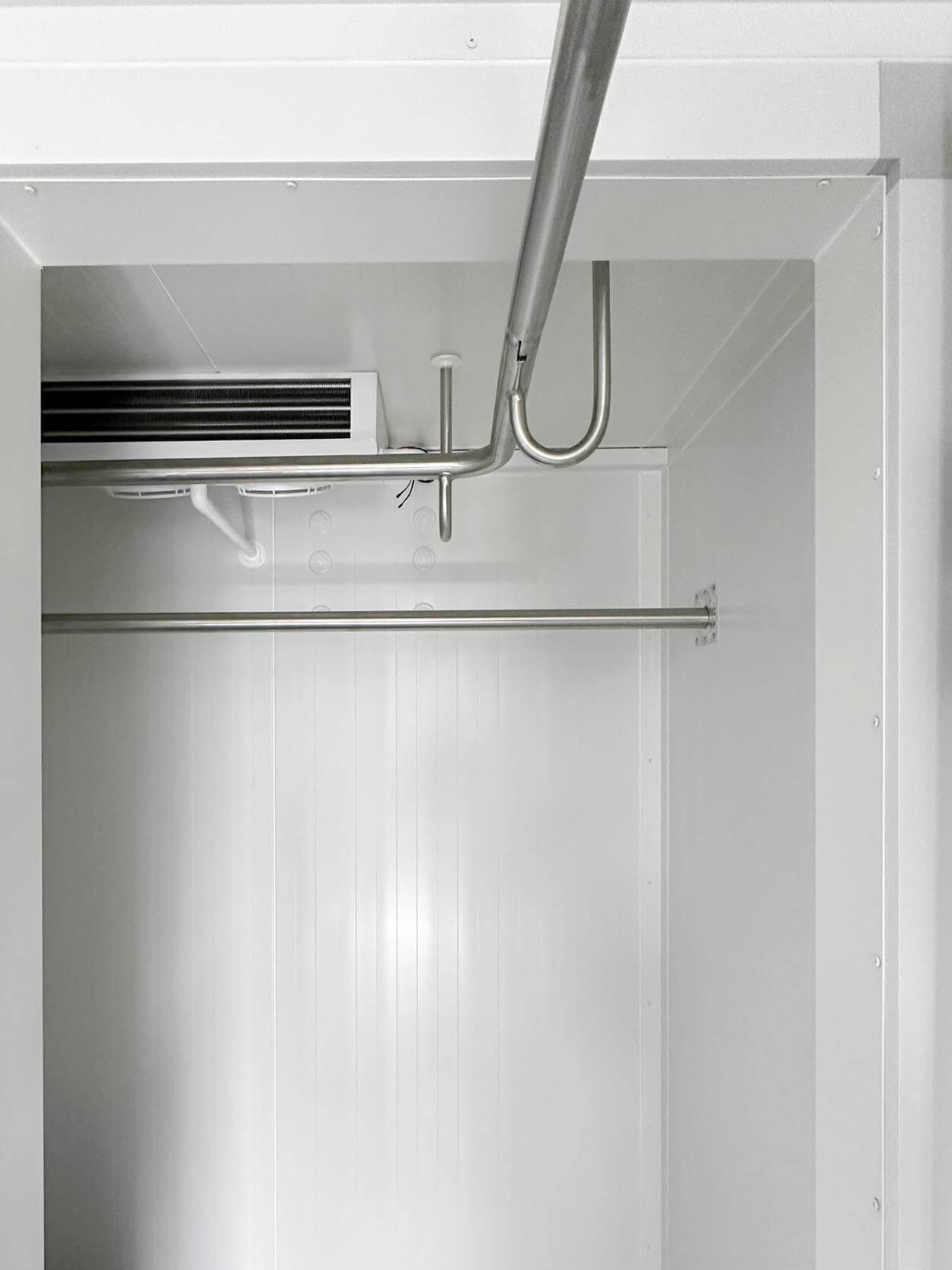

Rail system made of acid-resistant steel for hanging hooks
Set of 5 hooks (Euro hooks with side hooks, DIN 5047)

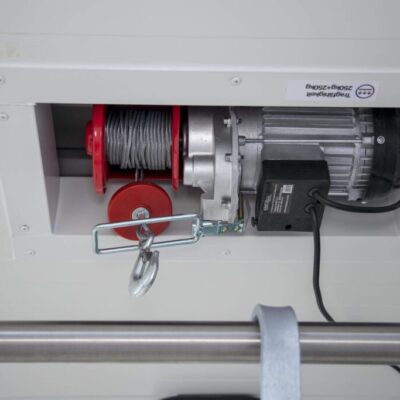

Electric cable winch with a capacity of 300/600 kg above the entrance to the cooling container

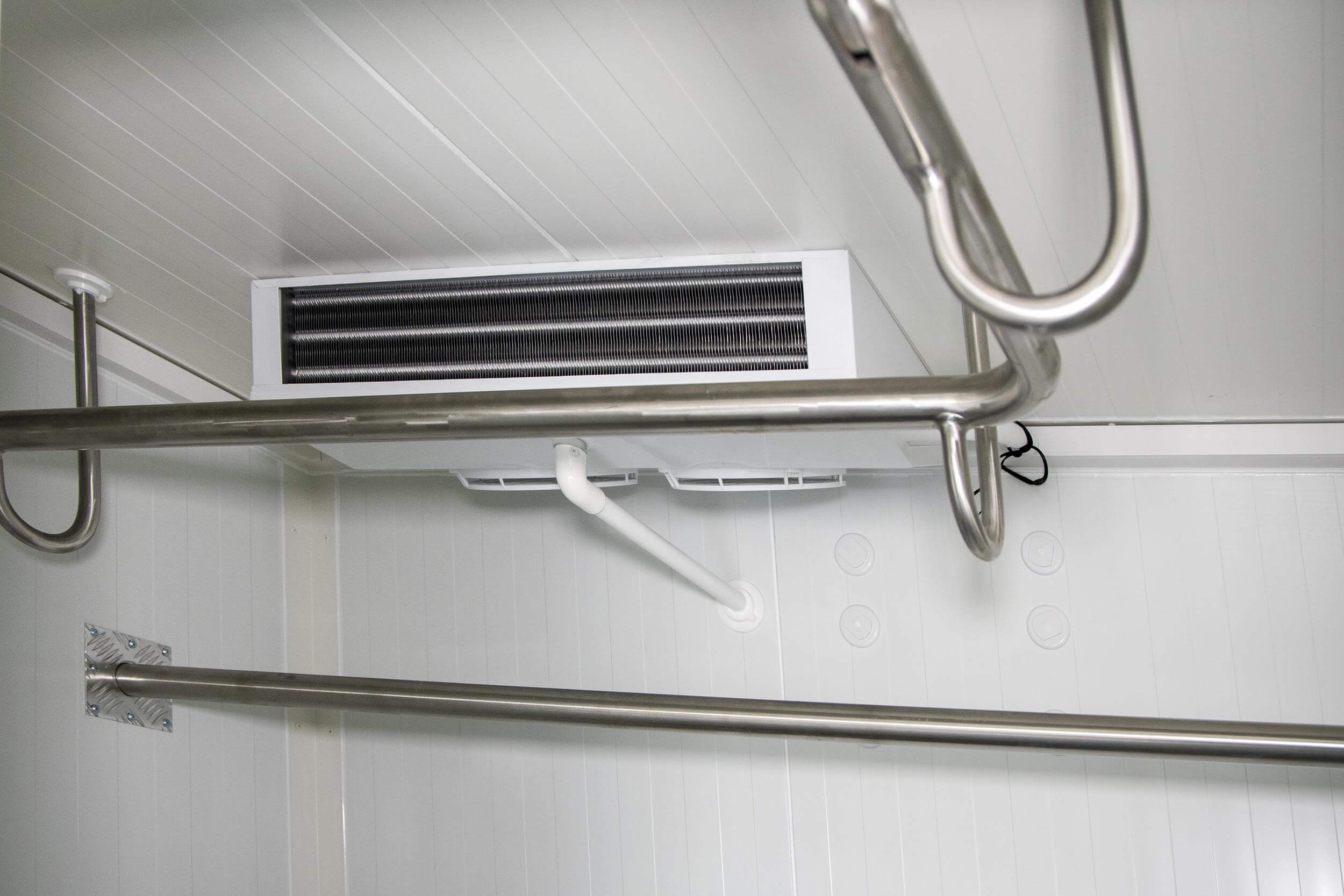

Embraco Aspera cooling unit
Electronic control to set the temperature from +10°C to -5°C

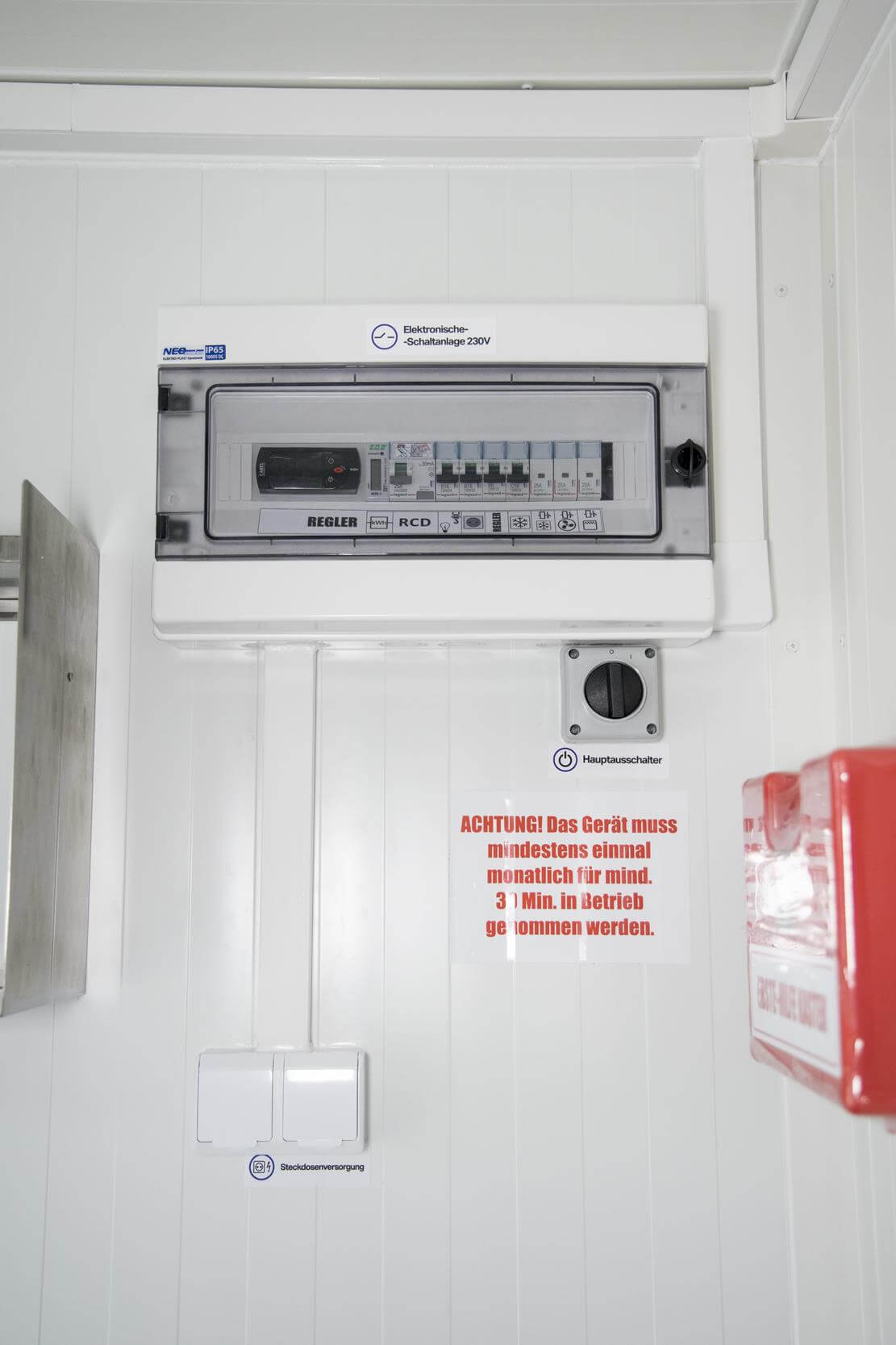

IP65 fuse box, power meter
LED lighting for both external and internal areas
230 V-AC
Key set for both doors (2x)
Hermetic power sockets, 230V IP65
Main switch
Spreading hooks (1 piece)
Stainless steel waste bucket
Insulated pipes inside the container

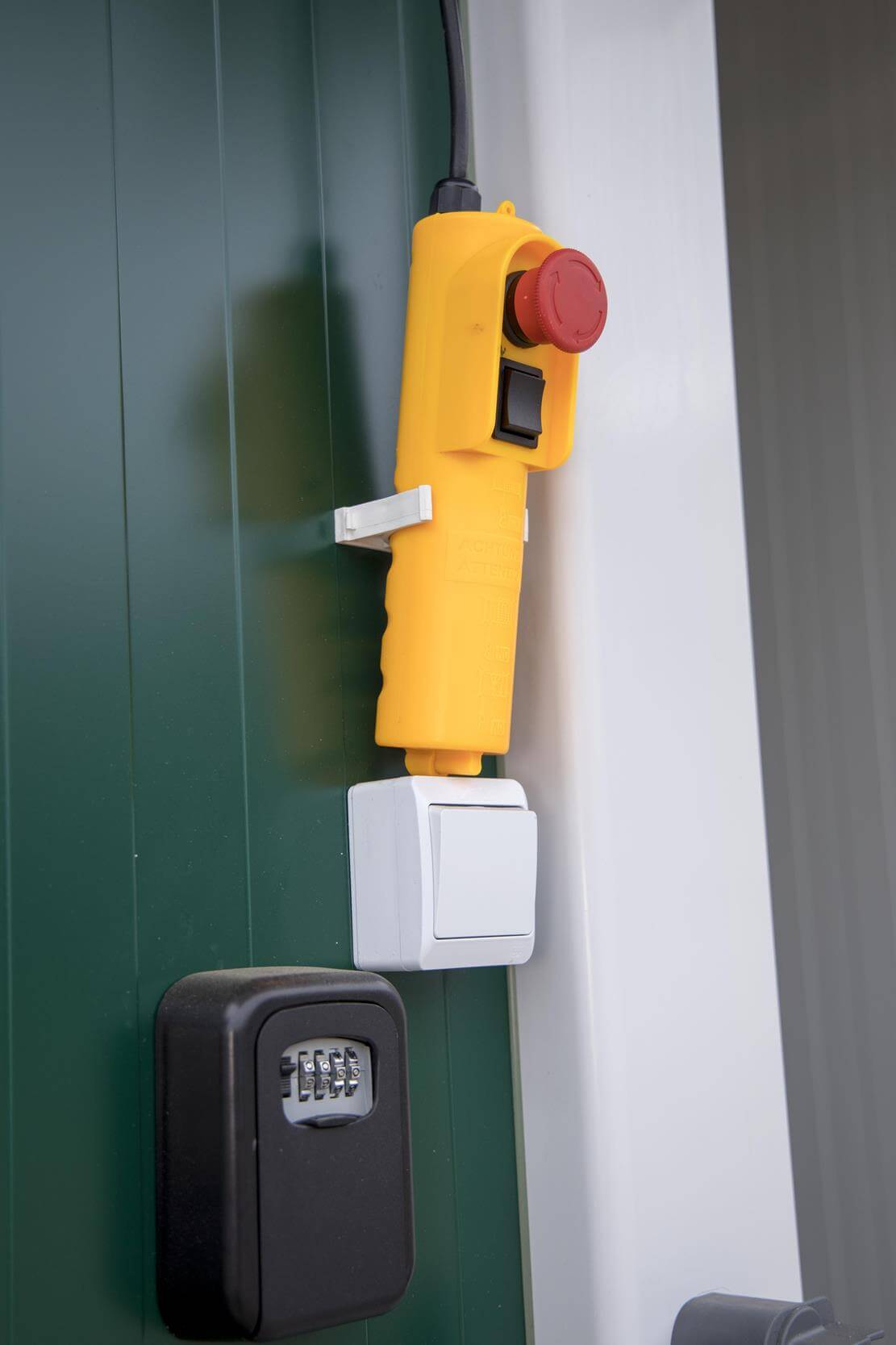

Key safe
Forklift slots for easy lifting
Floor drain, ⌀50
Water connection with 1/2-inch inlet (DN 15)
Hygiene wall drain, ⌀40
Certified static load calculation
2-year manufacturer warranty

We also produce cooling containers and processing containers according to individual specifications/requests.

Specification

Size [cm]	Length [L]	Width [S]	Height [H]
External dimensions	400	200	295
Internal dimensions – processing room	270	180	250
Internal dimensions – cooling room	100	180	250
Rail height:	228 cm
Total length with front and rear roof:	570 cm
Weight:	approx. 1300-1400 kg (depending on selected equipment)

External colour and flooring options:

Colour: green RAL 6005 or white RAL 9010

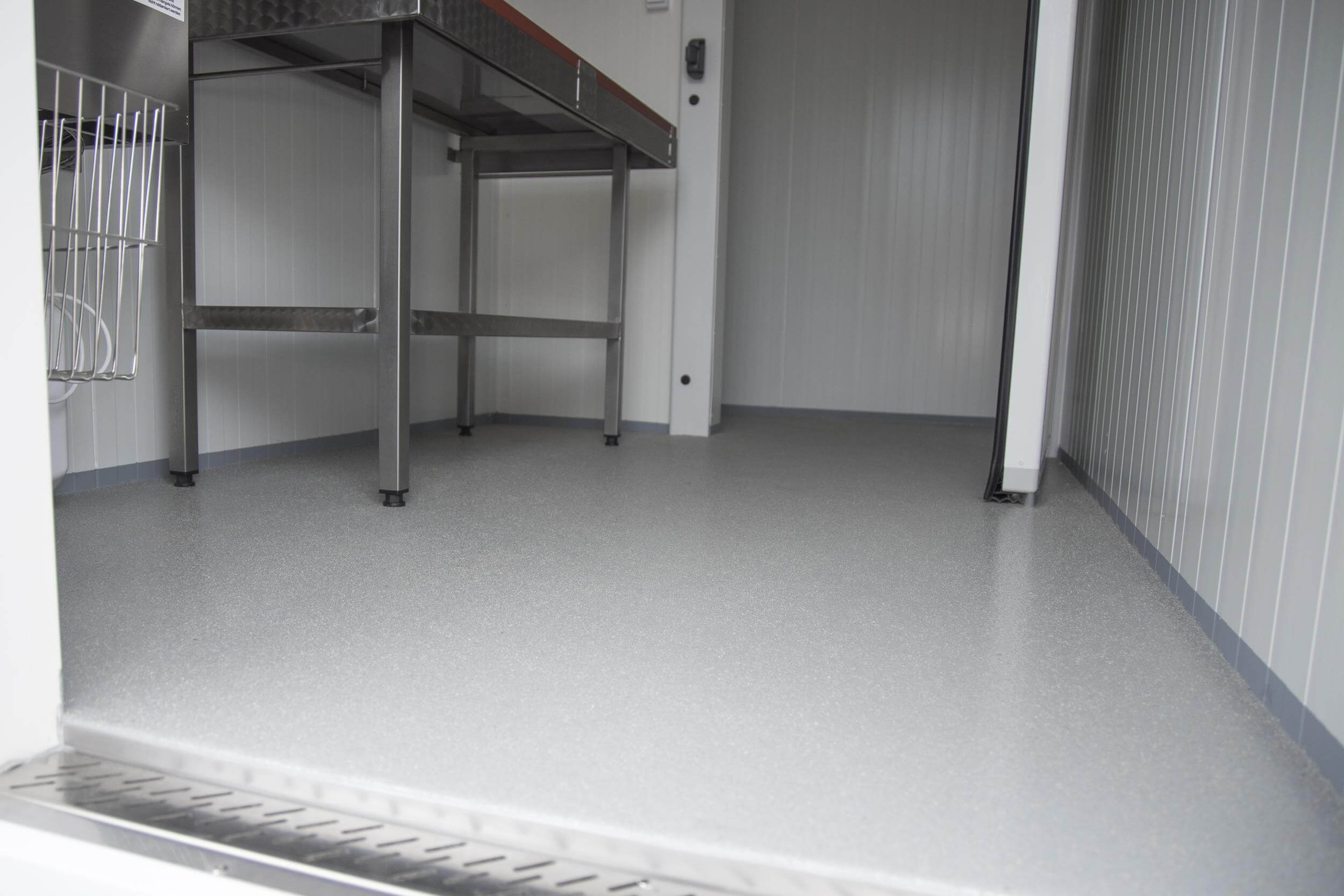

Flooring: smooth stainless steel, R12 aluminium checker plate, or self-leveling polyurethane resin flooring

Delivery: we deliver our containers to any location in the United Kingdom.

Warranty:

We provide a comprehensive 24-month warranty on all containers, including a service during the warranty period. Additionally, we offer an optional post-warranty service with customer site visits for an additional fee.
